Clutch And Band Chart

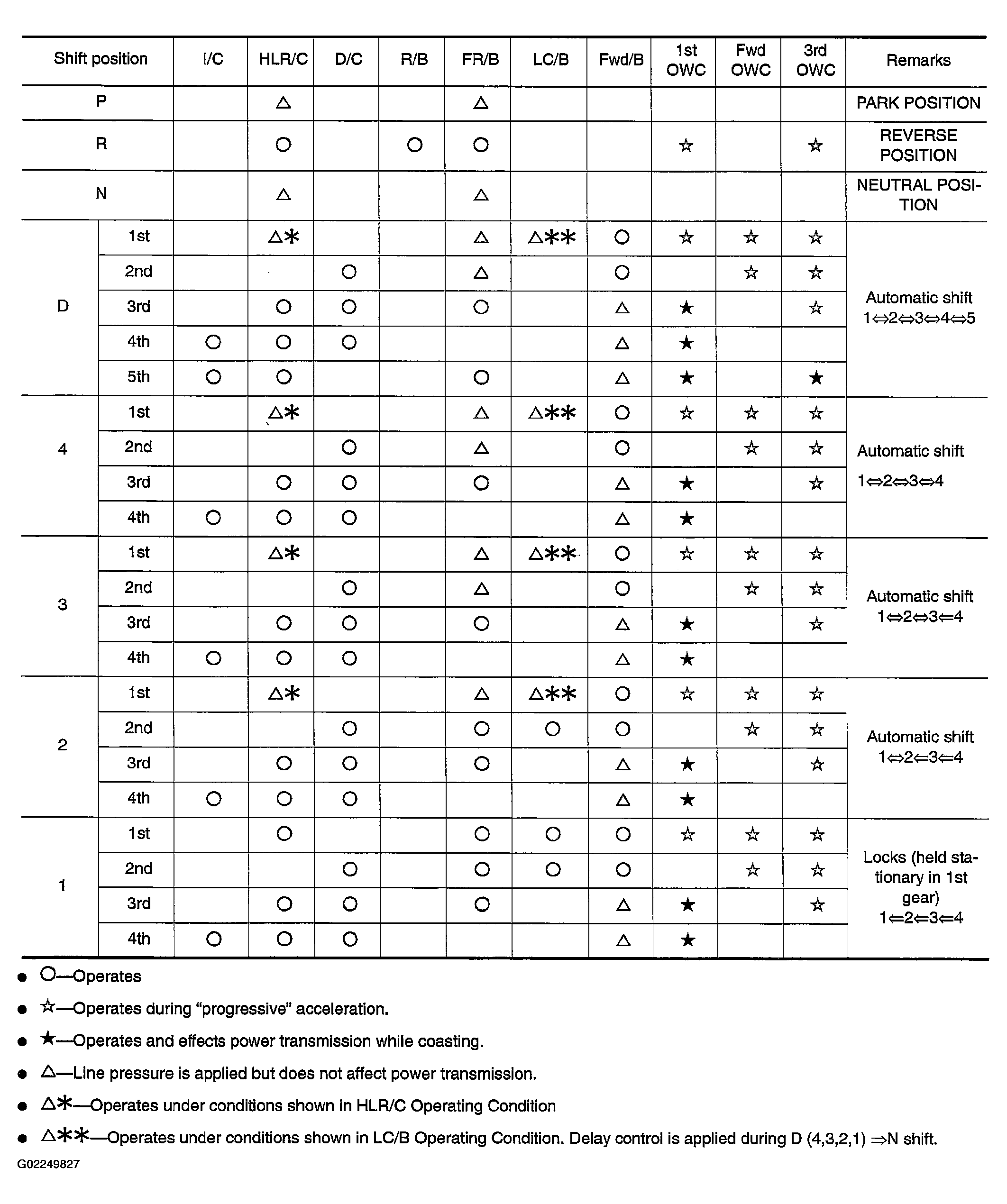

Fig 1: Clutch And Band Chart
G02249827Courtesy of NISSAN MOTOR CO., U.S.A.

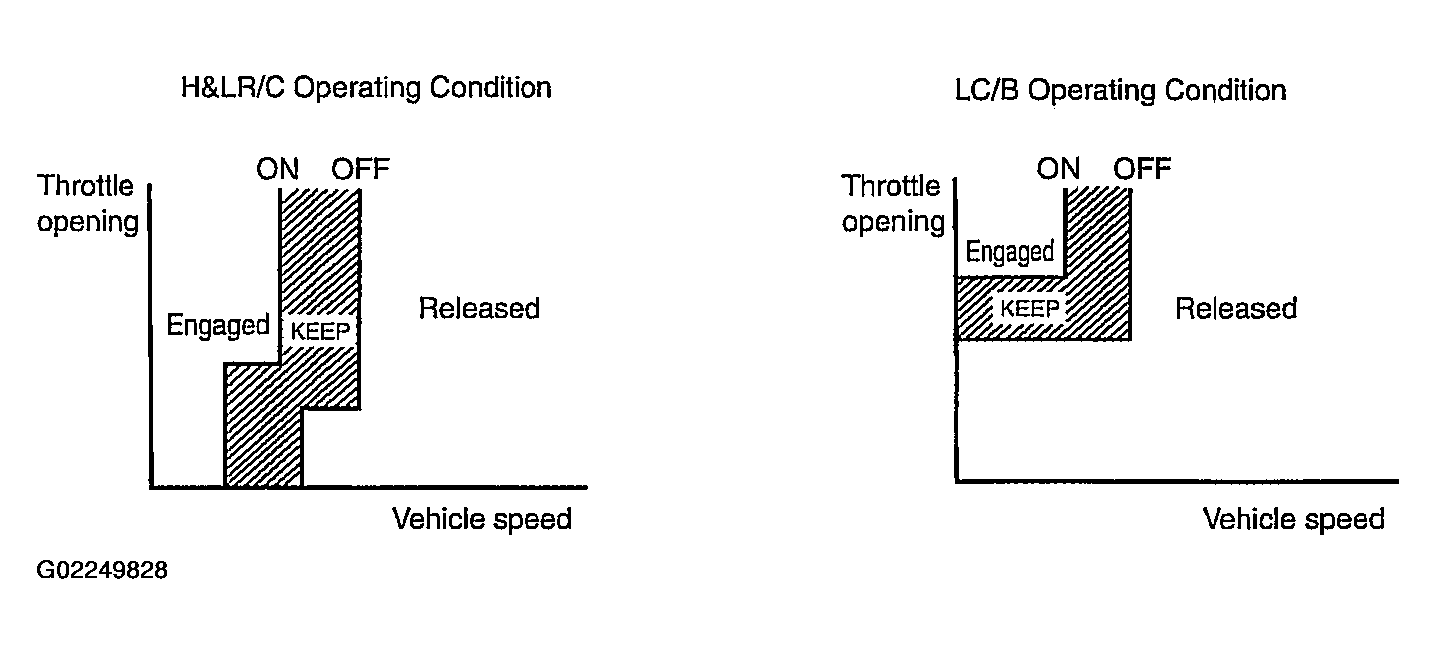

Fig 2: Displaying H&LR/C And LC/B Operating Conditions
G02249828Courtesy of NISSAN MOTOR CO., U.S.A.
