Center Case - Disassembly: Disassembly: Notes

1. Remove the rear case. Refer to DISASSEMBLY .
   1. Remove neutral-4LO and ATP switches.

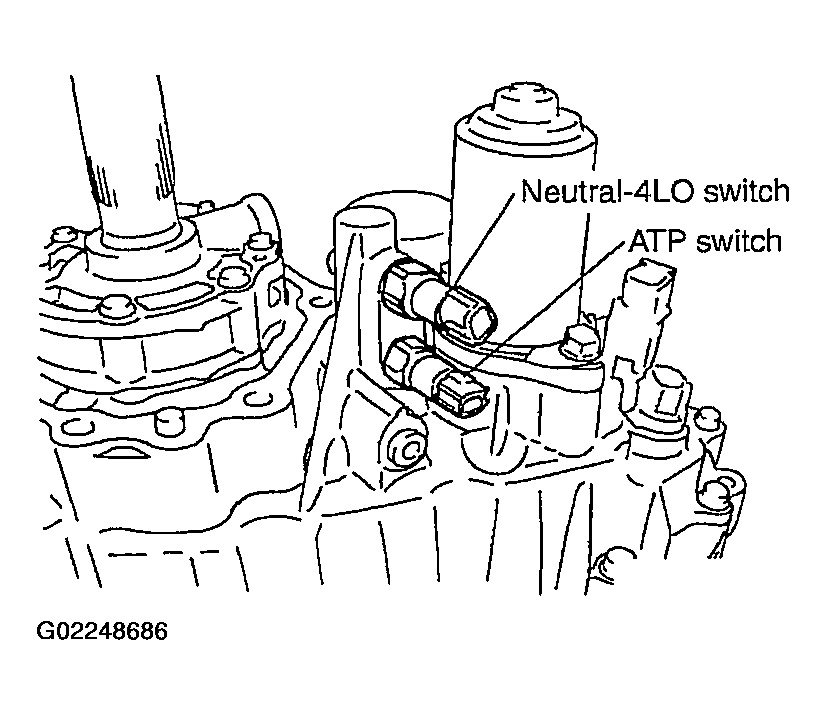

      Fig 1: Removing Neutral 4LO Switch And ATP Switches

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Remove main oil pump from the center case. Refer to MAIN OIL PUMP .
2. Remove the stem bleeder from the bleed hole.

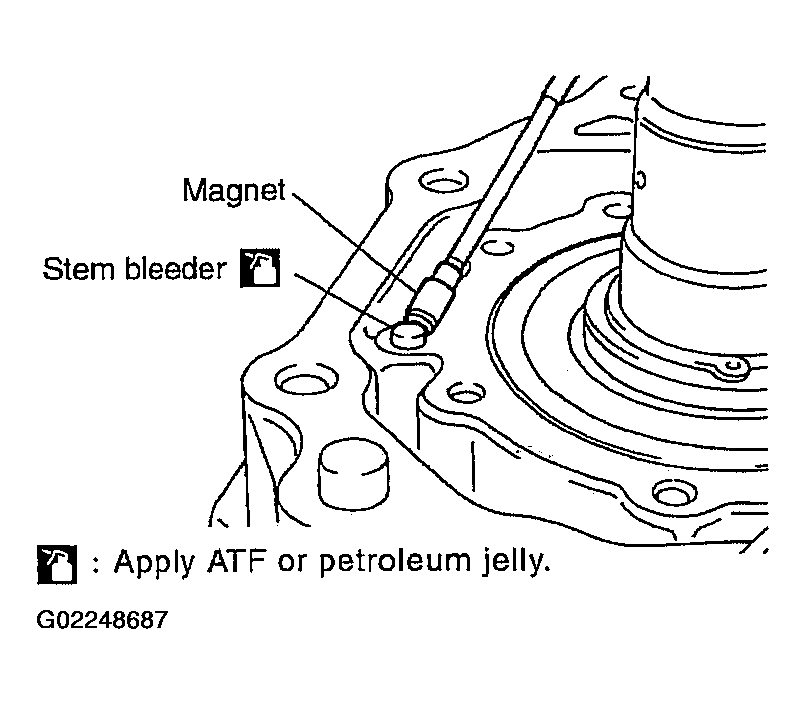

   Fig 2: Removing Stem Bleeder From Bleed Hole

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove self-lock nut from companion flange.

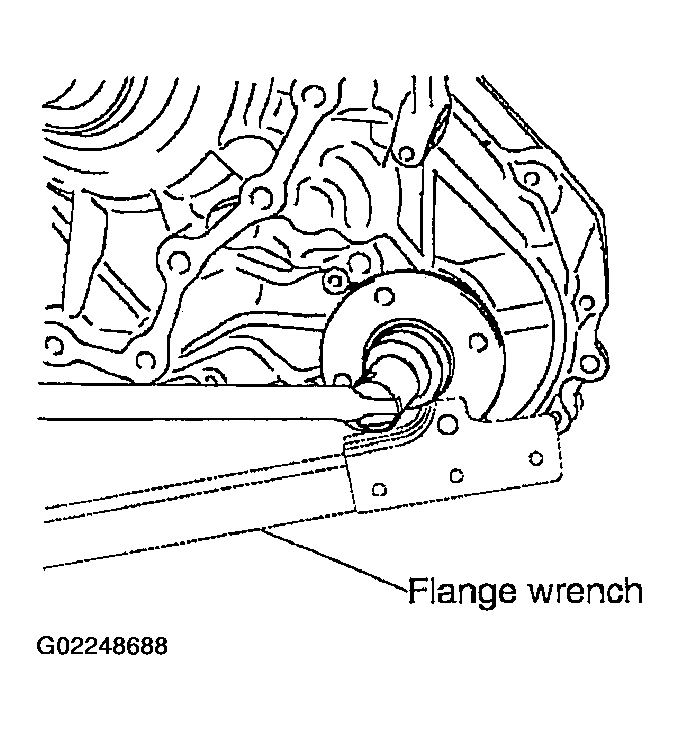

   Fig 3: Removing Self-Lock Nut From Companion Flange

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Put a matchmark on top of front drive shaft thread. The match-mark should be in line with the mark on the companion flange.

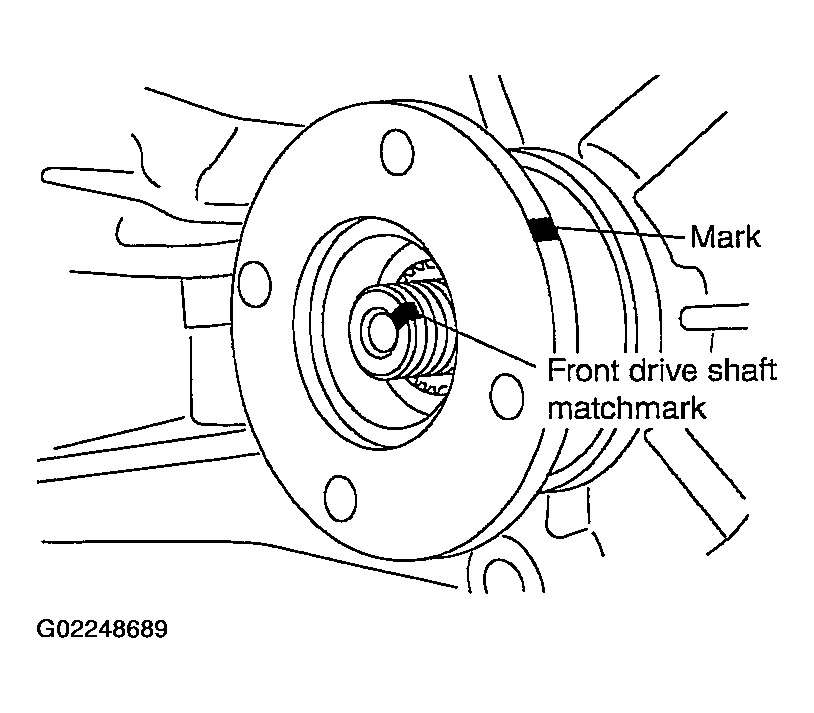

   Fig 4: Putting Matchmark On Top Of Front Drive Shaft Thread

   Courtesy of NISSAN MOTOR CO., U.S.A.
   CAUTION: Always match to the top of the front drive shaft thread using paint.
5. Remove companion flange, using suitable tool.

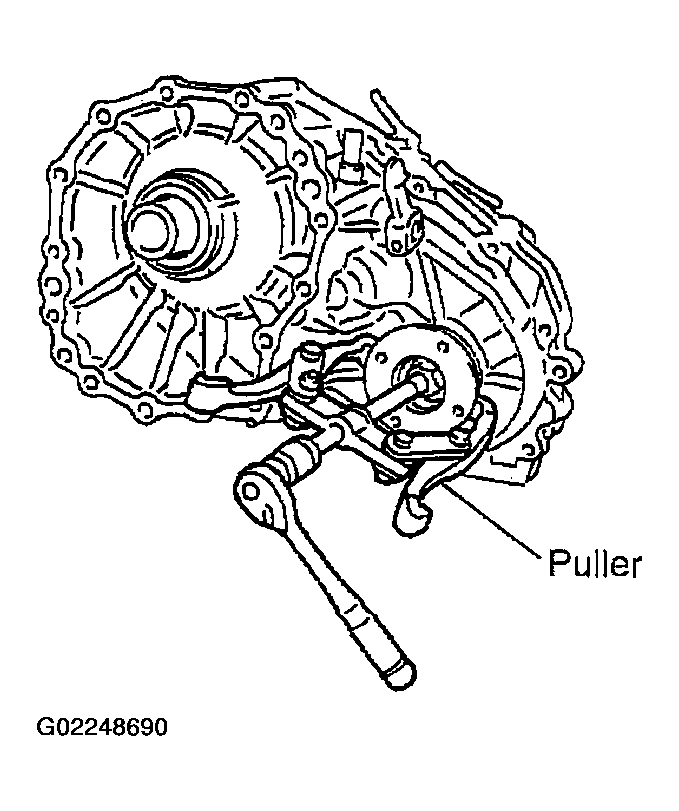

   Fig 5: Removing Companion Flange

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Remove the center case bolts.

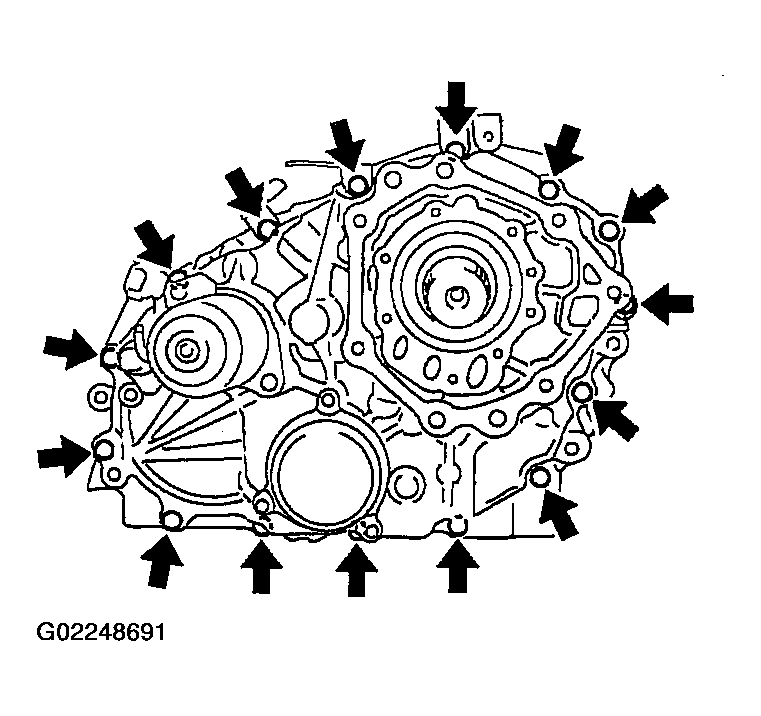

   Fig 6: Removing Center Case Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Remove harness bracket.
8. Remove filler plug and washer.
9. Separate center case from front case, using suitable tool, then remove center case by prying it up.

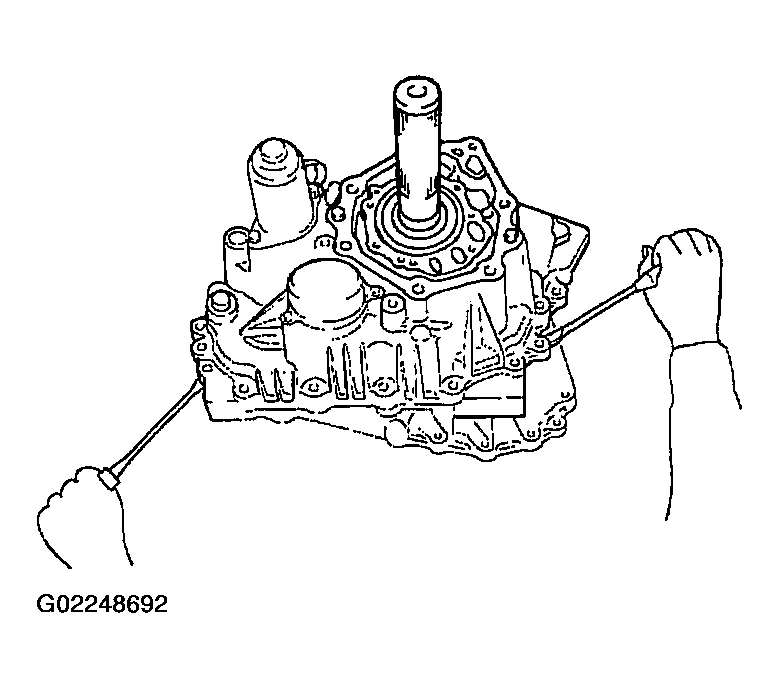

   Fig 7: Separating Center Case From Front Case

   Courtesy of NISSAN MOTOR CO., U.S.A.
   CAUTION: Be careful not to damage the mating surface.
10. Remove snap ring and washer holder from the mainshaft.

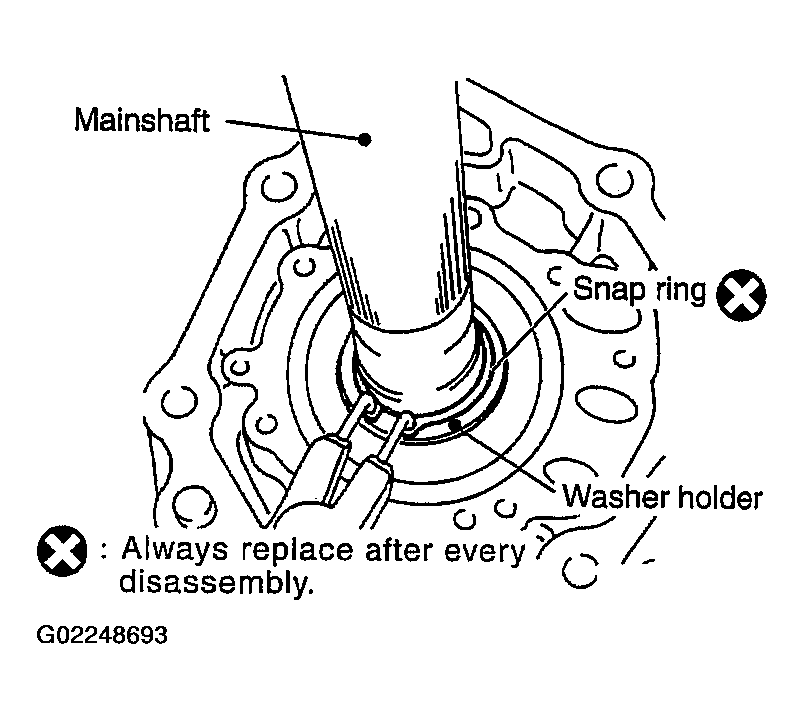

    Fig 8: Removing Snap Ring And Washer Holder From Mainshaft

    Courtesy of NISSAN MOTOR CO., U.S.A.
11. Remove C-rings from mainshaft bearing, using suitable tool.

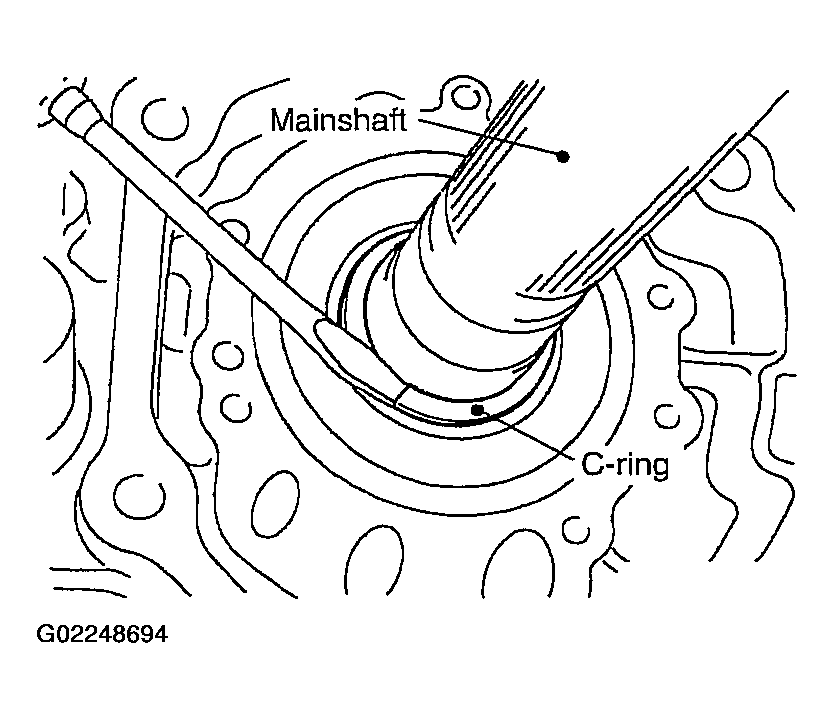

    Fig 9: Removing C-Rings From Mainshaft Bearing

    Courtesy of NISSAN MOTOR CO., U.S.A.
