Diagnostic Procedure

1. Turn ignition switch to OFF position and perform self-diagnosis again.

   Refer to TROUBLE DIAGNOSIS WITHOUT CONSULT-II  and TROUBLE DIAGNOSIS WITH CONSULT-II .

2. Turn ignition switch to OFF position.
3. Disconnect transfer control unit harness connector E143.
4. Check voltage between transfer control unit harness connector E143 terminal 47 (W) and ground.

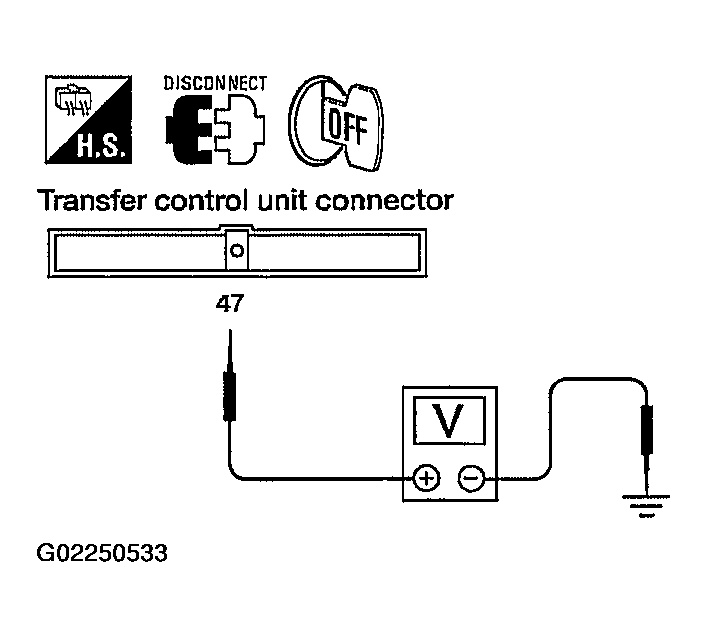

   Fig 1: Checking Voltage Between Terminal 47 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

Voltage : Battery voltage

OK or NG

1. OK: GO TO 2.
2. NG: Check the following.
   • No. 53 fuse (20A)
   • Harness continuity between fuse and transfer control unit

After driving for a while, perform self-diagnosis again.

Refer to TROUBLE DIAGNOSIS WITHOUT CONSULT-II  and TROUBLE DIAGNOSIS WITH CONSULT-II .

OK or NG

1. OK: Inspection End.
2. NG:
   1. Perform transfer control unit input/output signal inspection. Refer to TRANSFER CONTROL UNIT INSPECTION TABLE .
   2. If NG, recheck transfer control unit pin terminals for damage or loose connection with harness connector.
