DTC P0112, P0113: IAT Sensor: Wiring Diagram

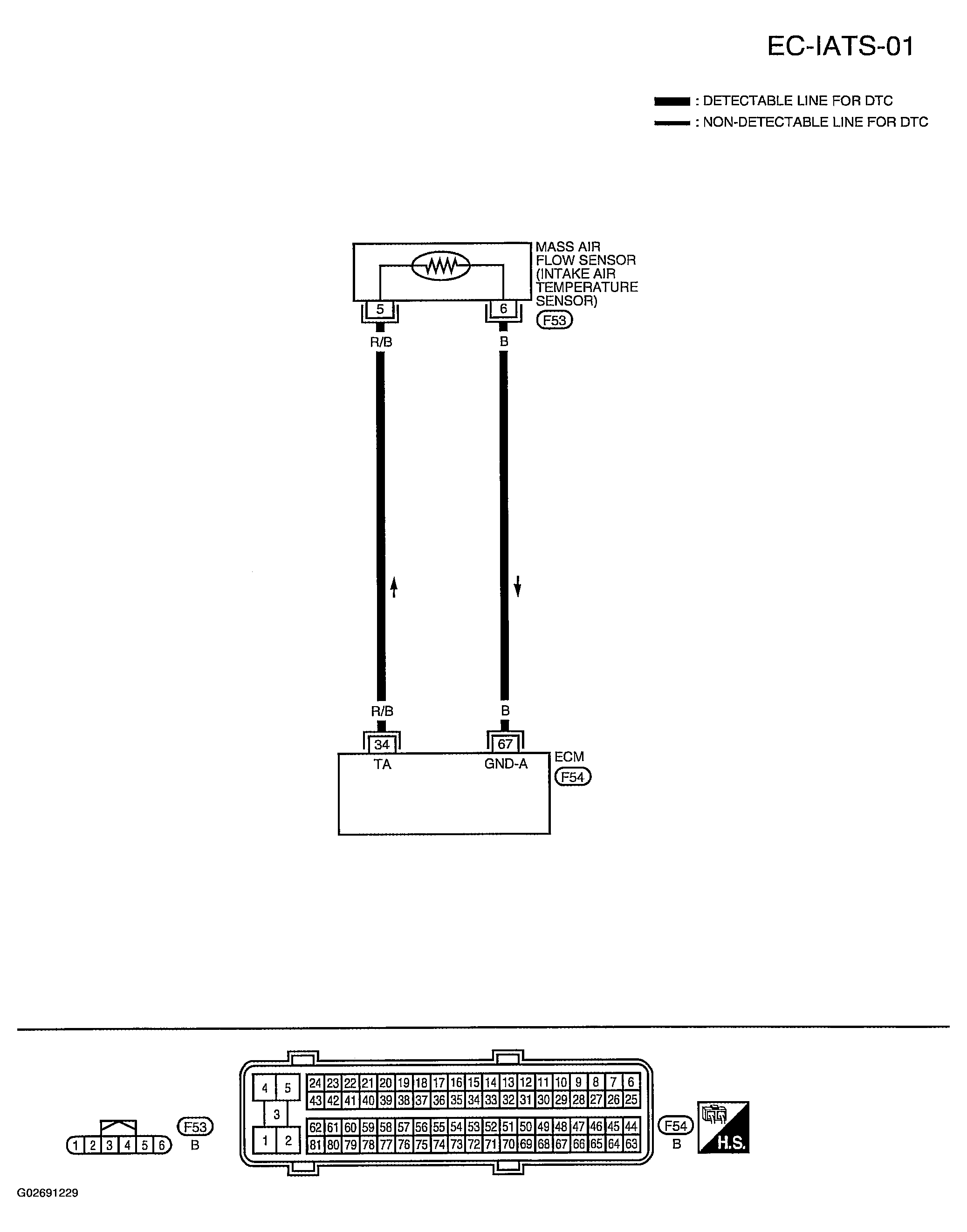

Fig 1: DTC P0112, P0113 IAT Sensor - Wiring Diagram - EC-IATS-01
G02691229Courtesy of NISSAN MOTOR CO., U.S.A.
