Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS

    Refer to GROUND INSPECTION .

    OK or NG

    OK: GO TO 2.

    NG: Repair or replace ground connections.

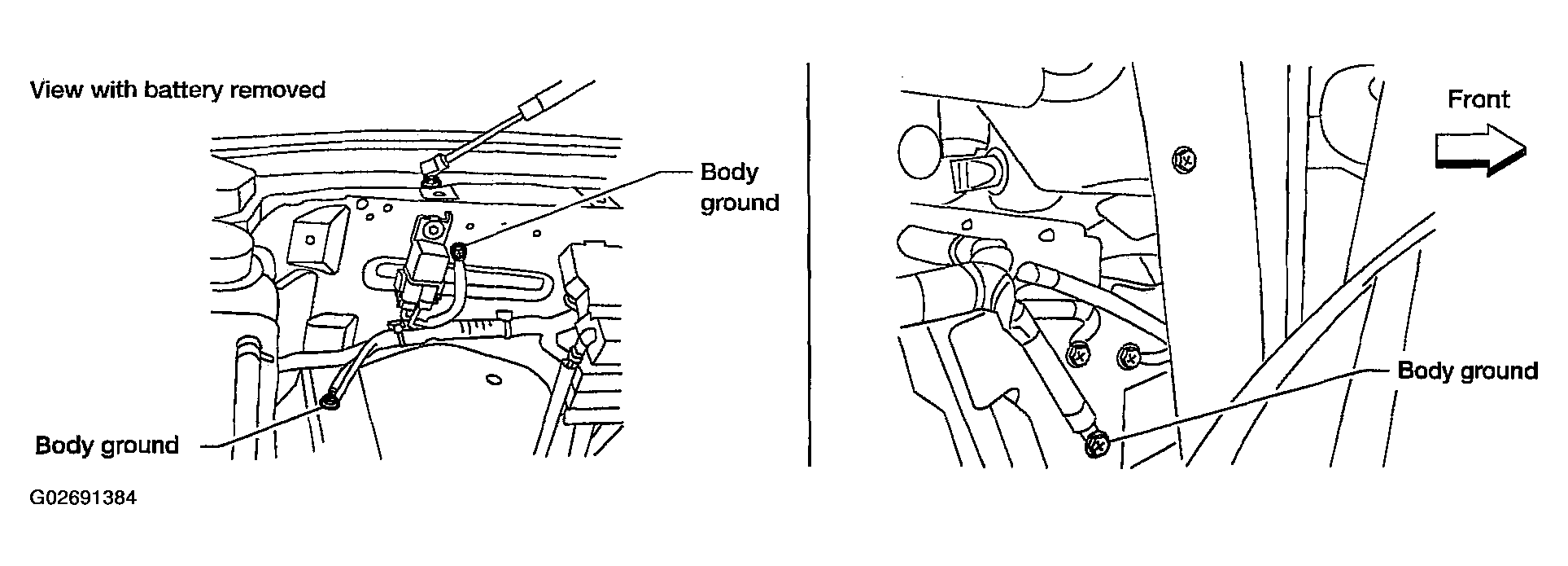

    Fig 1: Locating Body Ground
    G02691384Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
    1. Disconnect crankshaft position (CKP) sensor (POS) harness connector.
    2. Turn ignition switch ON.

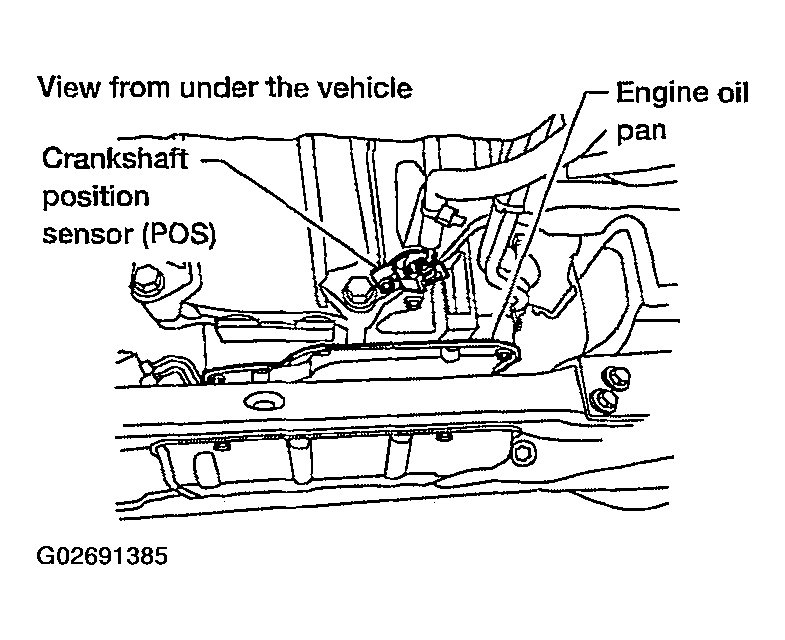

      Fig 2: Locating Crankshaft Position (CKP) Sensor (POS) & Engine Oil Pan
      G02691385Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between CKP sensor (POS) terminal 3 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  4.

    NG: GO TO 3.

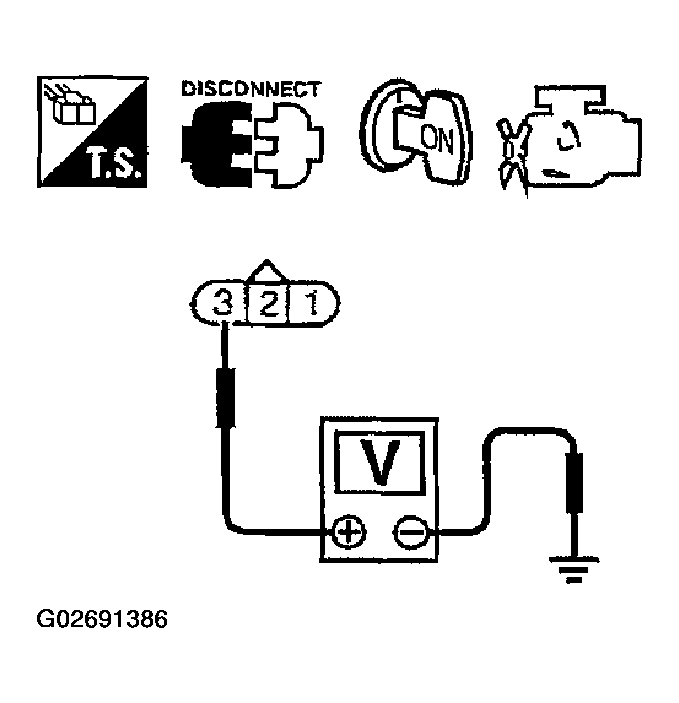

    Fig 3: Checking Voltage Between CKP Sensor (POS) Terminal 3 & Ground
    G02691386Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F33, E19
    • Harness for open or short between crankshaft position sensor (POS) and ECM
    • Harness for open or short between crankshaft position sensor (POS) and IPDM E/R

      : Repair open circuit or short to ground or short to power in harness or connectors.

  4. CHECK CKP SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between CKP sensor (POS) terminal 1 and body ground. Refer to Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to power.

    OK or NG

    OK: GO TO  6.

    NG: GO TO 5.

  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F32, E2
    • Harness for open or short between crankshaft position sensor (POS) and ground

      : Repair open circuit or short to power in harness or connectors.

  6. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2. Refer to Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 7.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  7. CHECK CRANKSHAFT POSITION SENSOR (POS)

    Refer to COMPONENT INSPECTION .

    OK or NG

    OK: GO TO 8.

    NG: Replace crankshaft position sensor (POS).

  8. CHECK GEAR TOOTH

    Visually check for chipping signal plate gear tooth.

    OK or NG

    OK: GO TO 9.

    NG: Replace the signal plate.

  9. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    : INSPECTION END
