Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF
2. Loosen and retighten ground three screws on the body

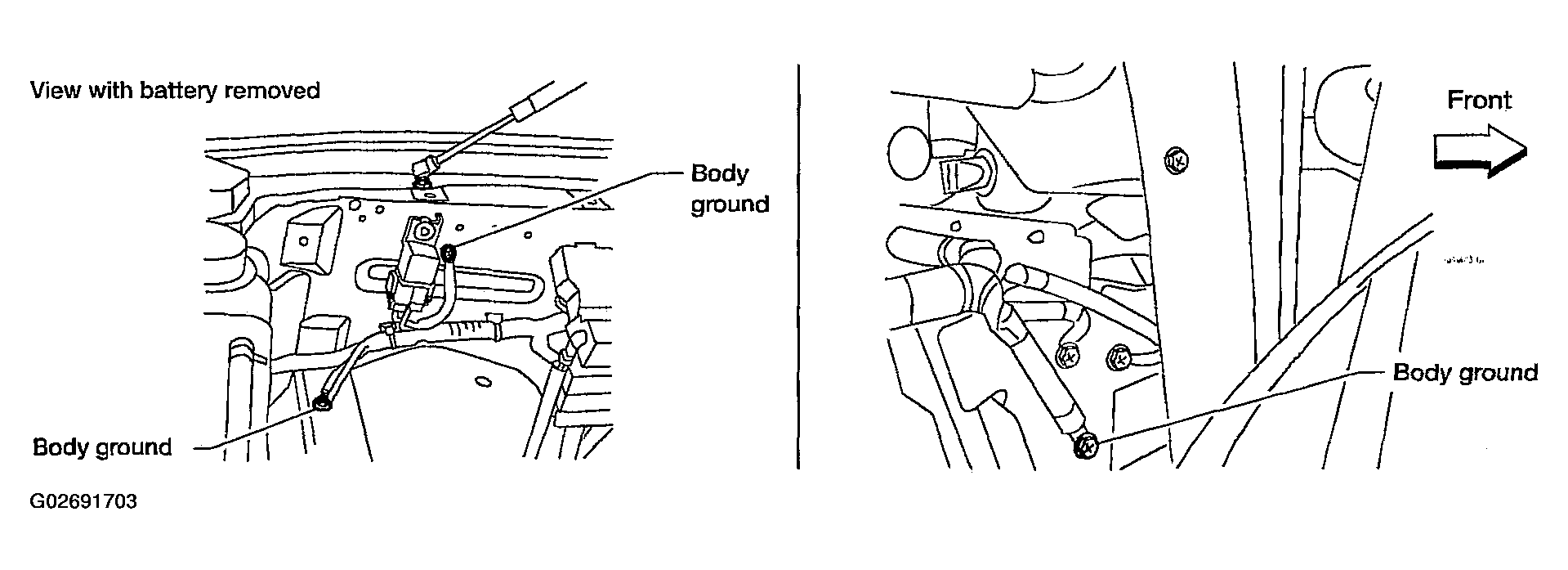

  Fig 1: DTC P1273, P1283 Checking Ground Connections
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Refer to GROUND INSPECTION .
OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.
RETIGHTEN A/F SENSOR 1
Loosen and retighten the A/F sensor 1.

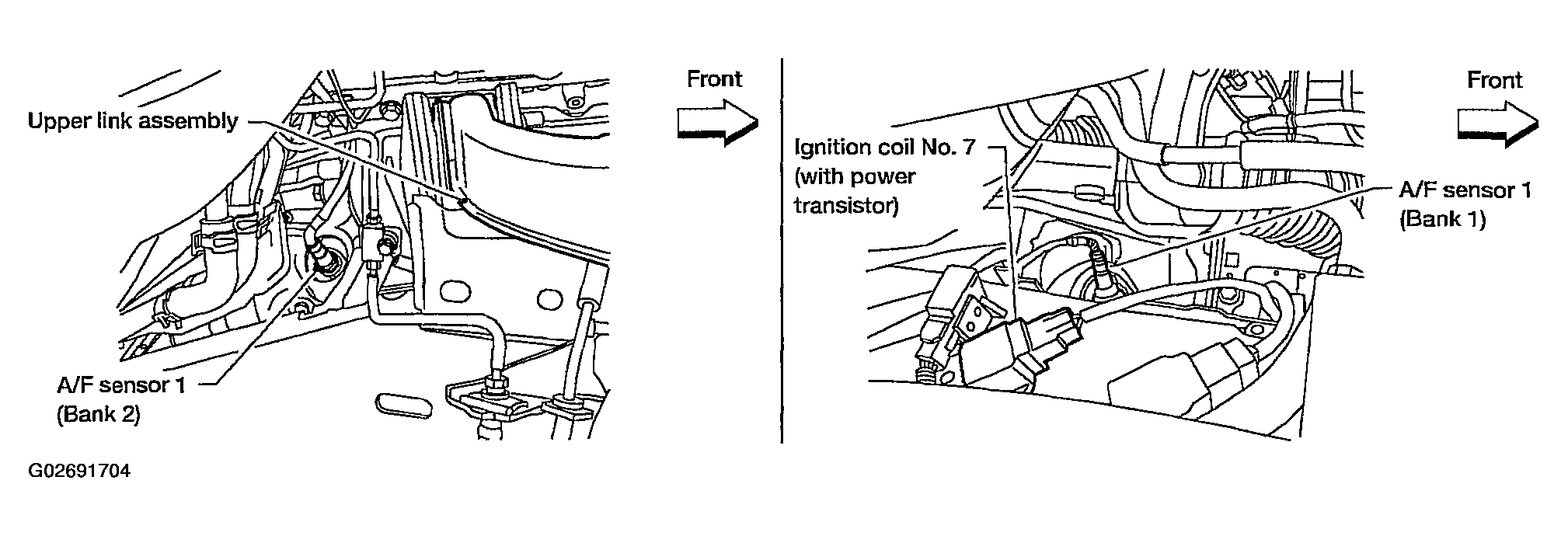

Fig 2: DTC P1273, P1283 Retightening A/F SENSOR 1
Courtesy of NISSAN MOTOR CO., U.S.A.

Tightening torque: 40 - 60 N.m (4.1 - 6.1 kg-m, 30 - 44 ft-lb)

: GO TO 3.
CLEAR THE SELF-LEARNING DATA
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature
2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II
3. Clear the self-learning control coefficient by touching "CLEAR"
4. Run engine for at least 10 minutes at idle speed
  Is the 1st trip DTC P0171 or P0174 detected?

  Is it difficult to start engine?

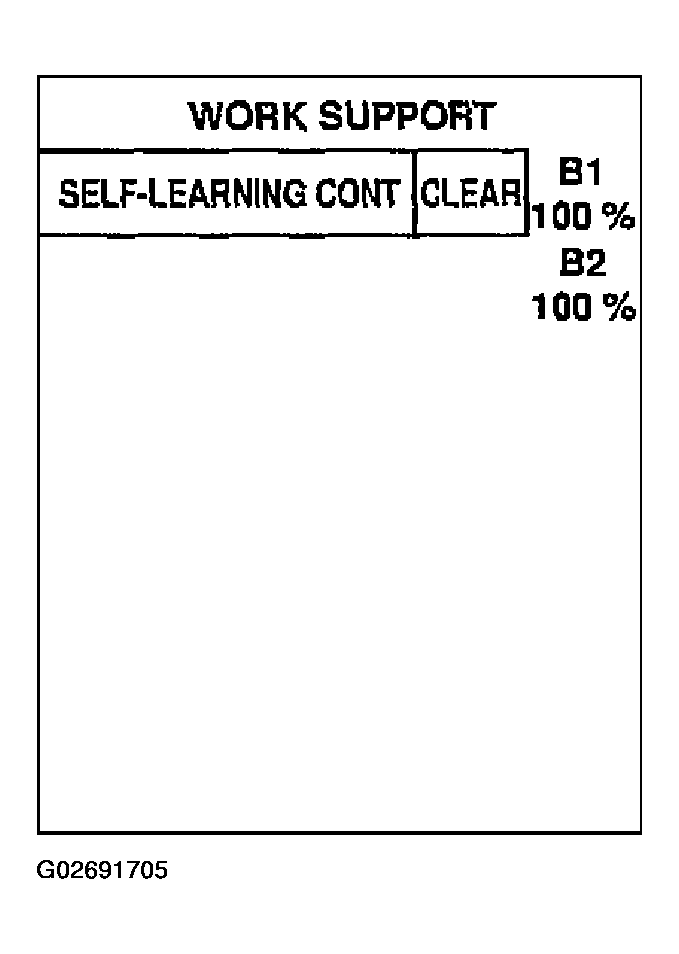

  Fig 3: Selecting "SELF-LEARNING CONT" In "WORK SUPPORT" Mode With CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature
2. Turn ignition switch OFF
3. Disconnect mass air flow sensor harness connector
4. Restart engine and let it idle for at least 5 seconds
5. Stop engine and reconnect mass air flow sensor harness connector
6. Make sure DTC P0102 is displayed
7. Erase the DTC memory. Refer to HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION .
8. Make sure DTC P0000 is displayed
9. Run engine for at least 10 minutes at idle speed
  Is the 1st trip DTC P0171 or P0174 detected?

  Is it difficult to start engine?
Yes or No

Yes: Perform trouble diagnosis for DTC P0171 or P0174. Refer to DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION .

No: GO TO 4.

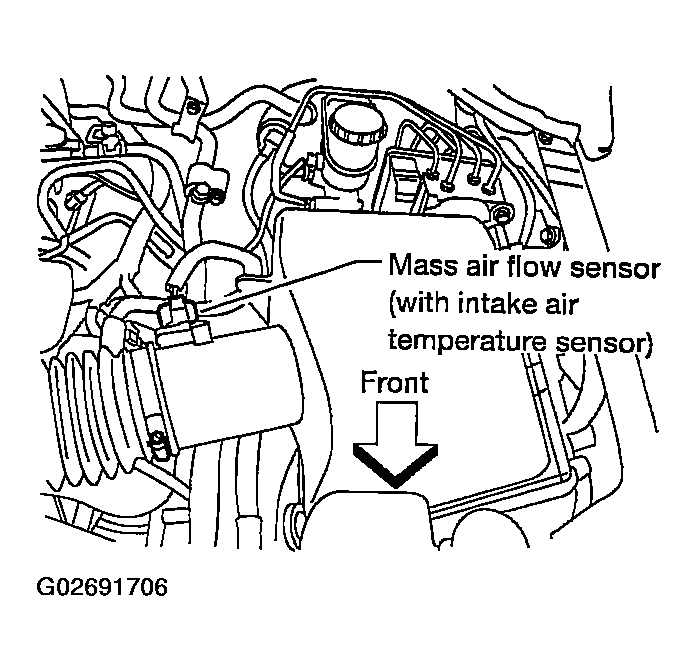

Fig 4: Locating Mass Air Flow Sensor (With Intake Air Temperature Sensor)
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/F sensor 1 harness connector.

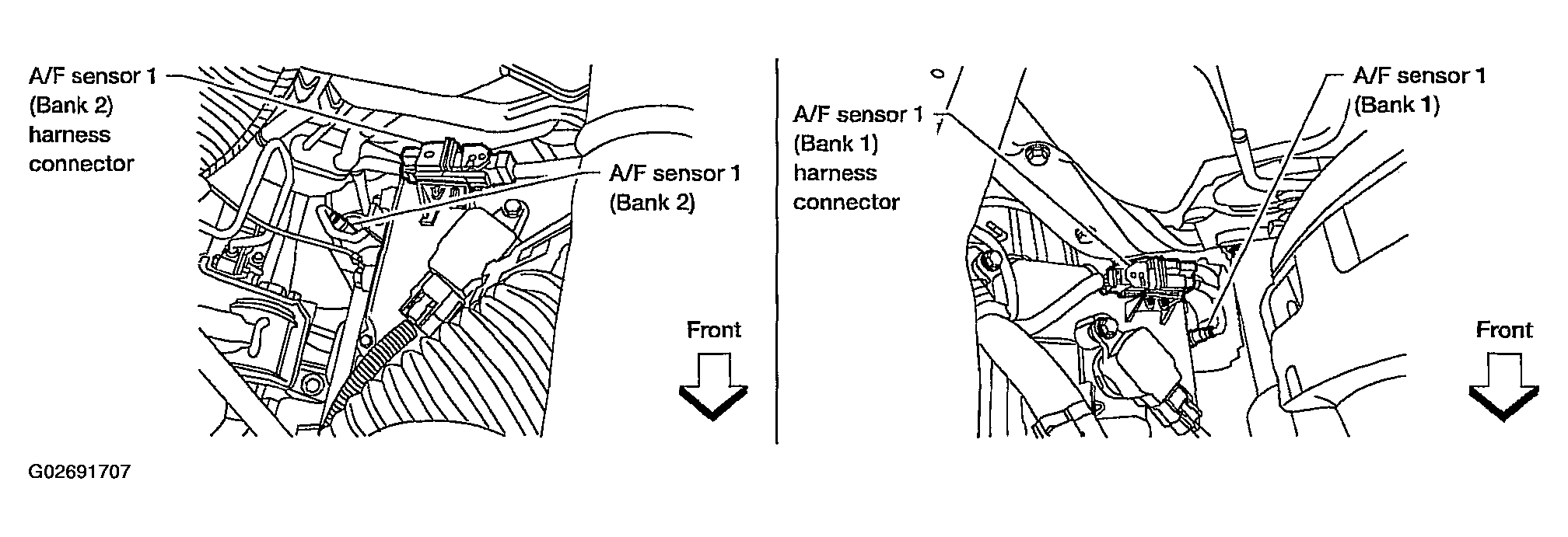

  Fig 5: DTC P1273, P1283 Checking A/F Sensor 1 Power Supply Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-II or tester.
  Voltage: Battery voltage
OK or NG

OK: GO TO 6.

NG: GO TO 5.

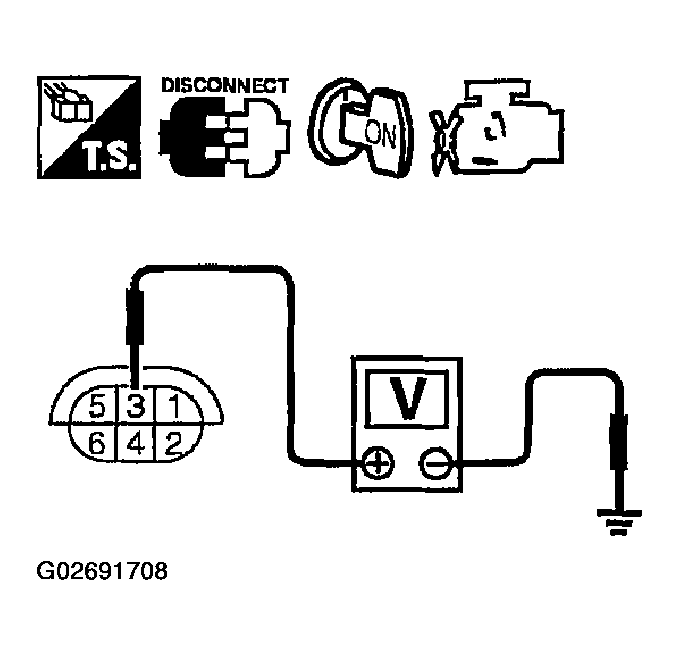

Fig 6: Checking Voltage Between A/F Sensor 1 Terminal 3 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E5, F14
- IPDM E/R harness connector E119
- 10A fuse
- Harness for open or short between A/F sensor 1 and fuse
  : Repair or replace harness or connectors.
CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows. Refer to Wiring Diagram.

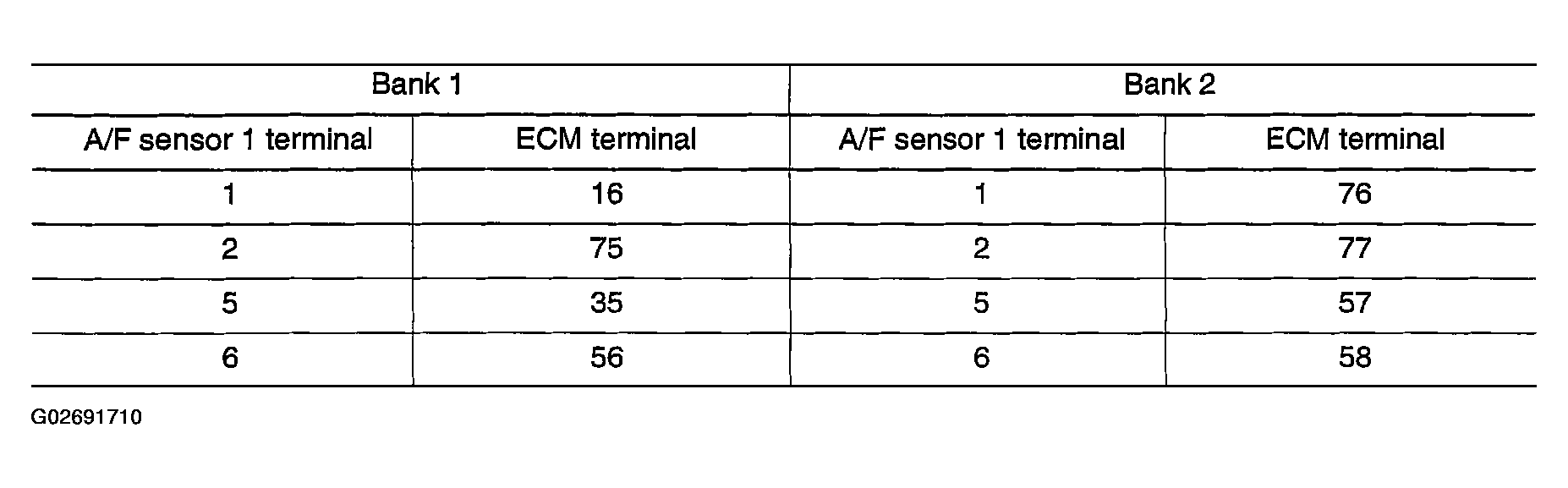

  Fig 7: Checking Harness Continuity Between A/F Sensor 1 Terminal & ECM Reference Table (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should exist.
4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.

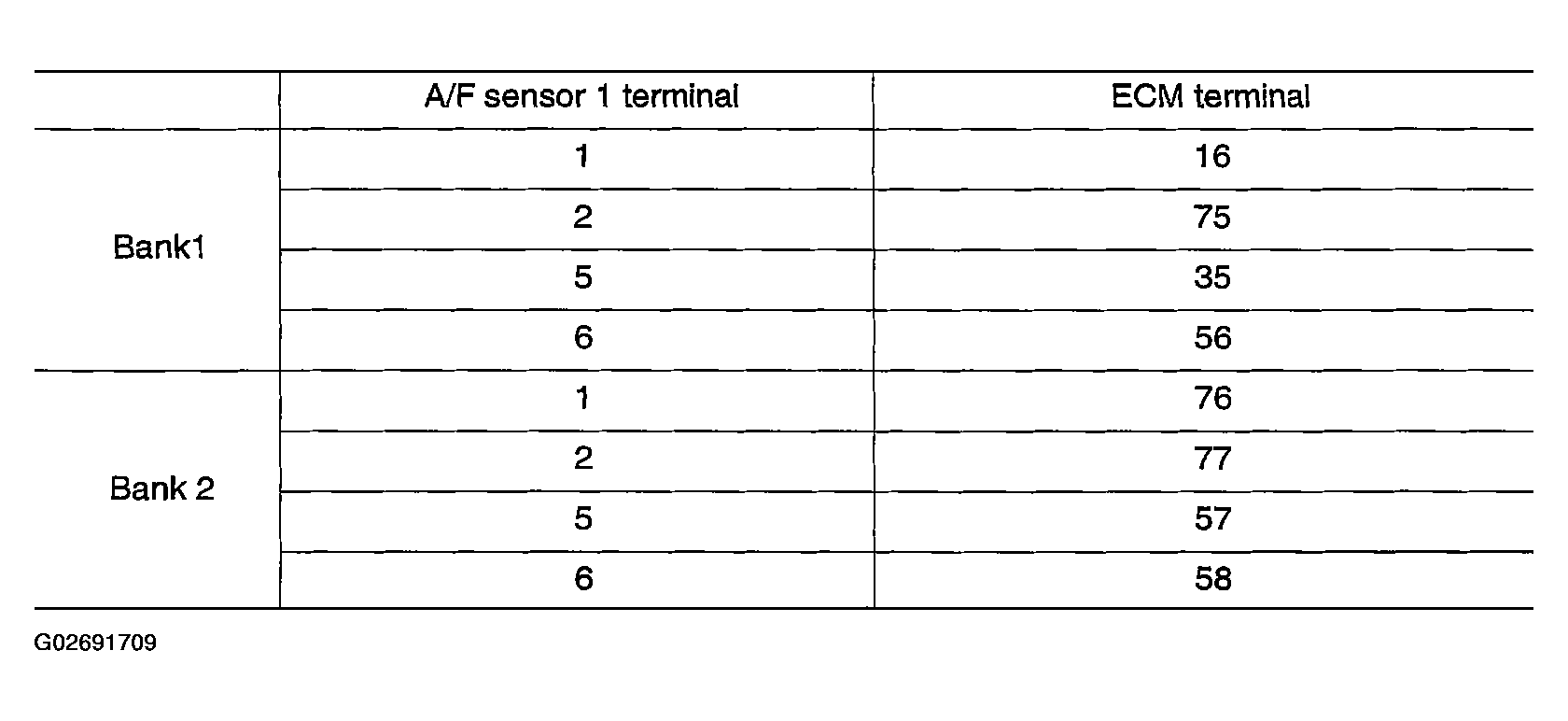

  Fig 8: Checking Harness Continuity Between A/F Sensor 1 Terminal & ECM Reference Table (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Continuity should not exist.
5. Also check harness for short to power.
OK or NG

OK: GO TO 7.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK A/F SENSOR 1 HEATER
Refer to COMPONENT INSPECTION .

OK or NG

OK: GO TO 8.

NG: Replace A/F sensor 1.
CHECK INTERMITTENT INCIDENT
Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

OK or NG

OK: Replace A/F sensor 1.

NG: Repair or replace.
