Diagnostic Procedure

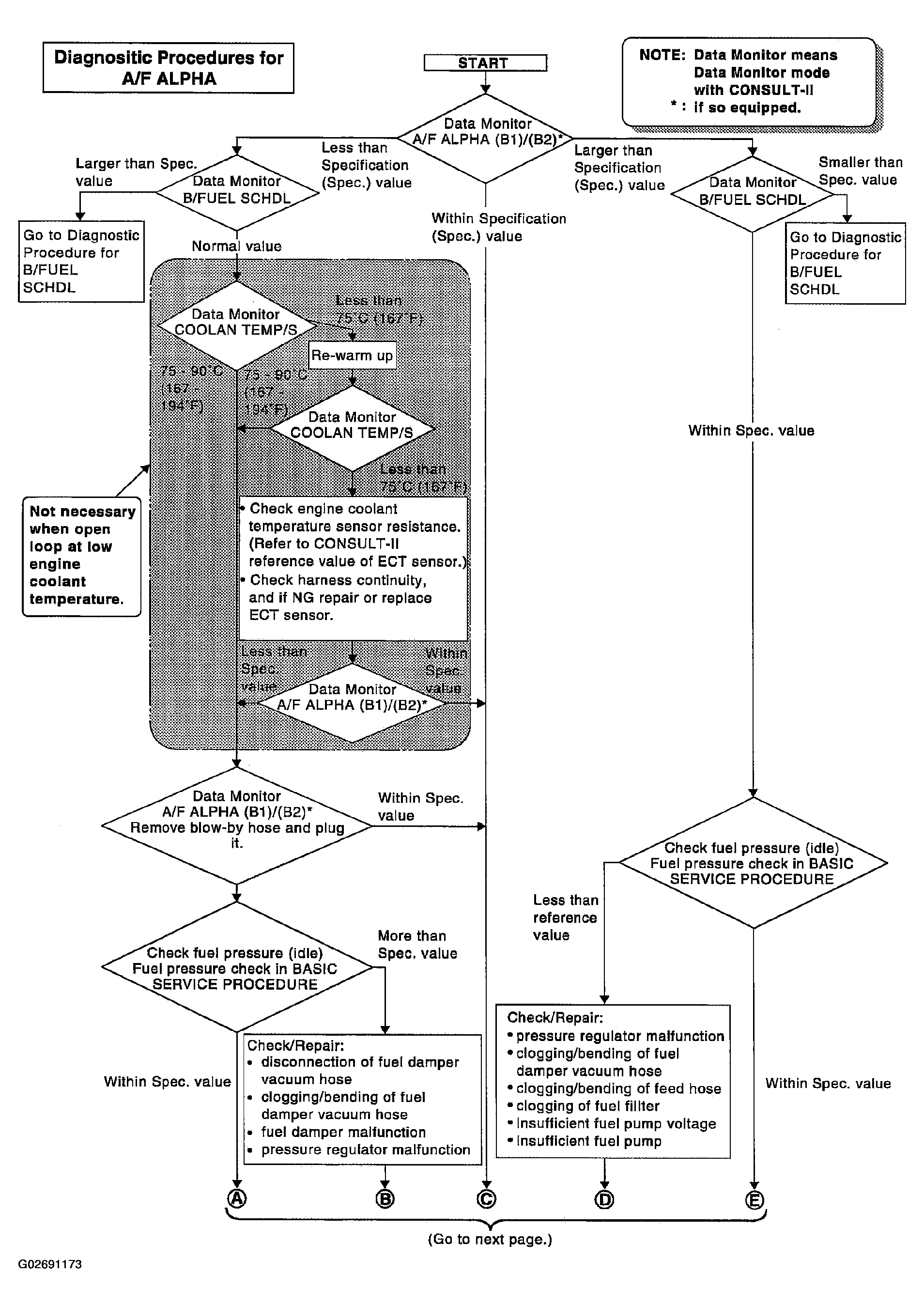

Fig 1: Diagnostic Procedure - A/F ALPHA (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

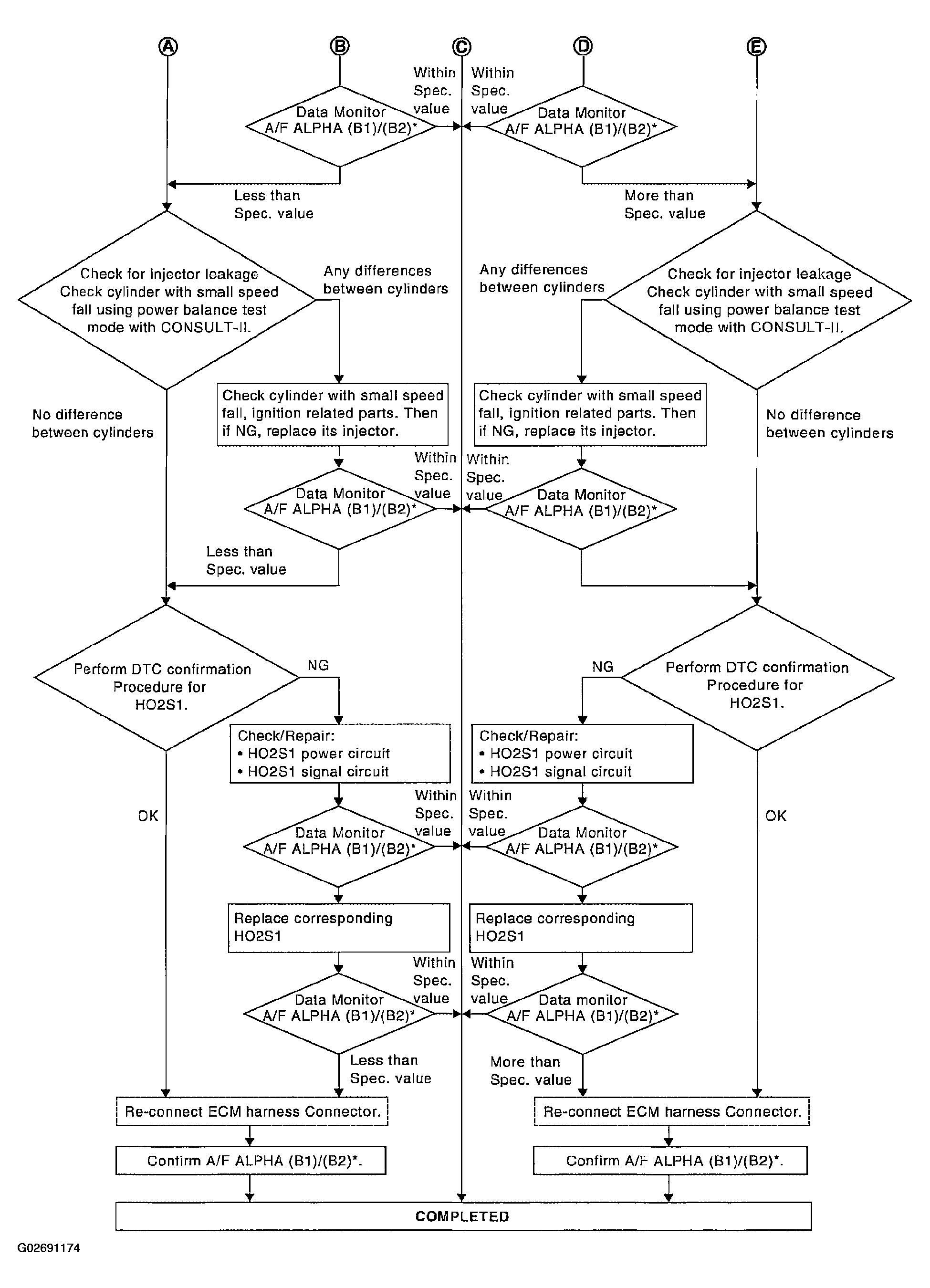

Fig 2: Diagnostic Procedure - A/F ALPHA (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Diagnostic Procedure - A/F ALPHA (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
