Detention Switch

For key:

• Check continuity between terminals of the A/T device.

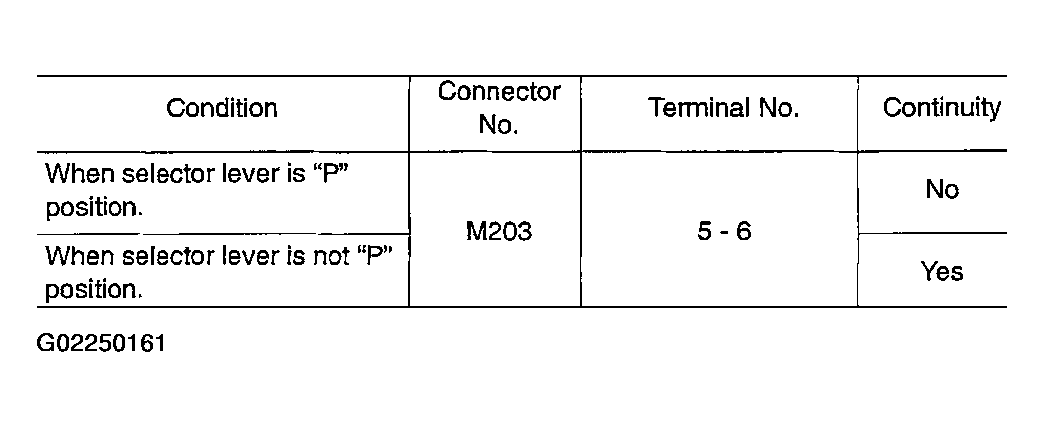

Fig 1: Condition Of Terminal

Courtesy of NISSAN MOTOR CO., U.S.A.

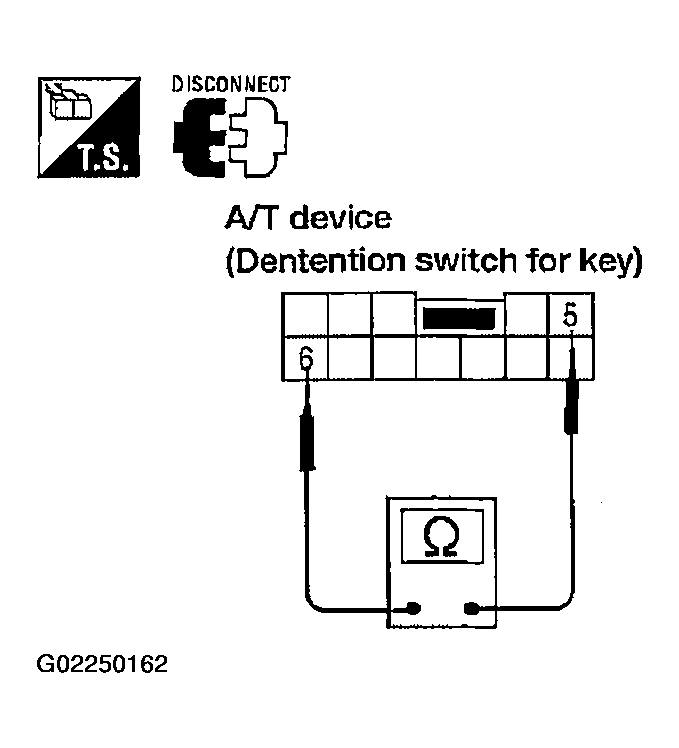

Fig 2: Checking Continuity Between Terminals Of The A/T Device

Courtesy of NISSAN MOTOR CO., U.S.A.

For shift:

• Check continuity between terminals of the A/T device.

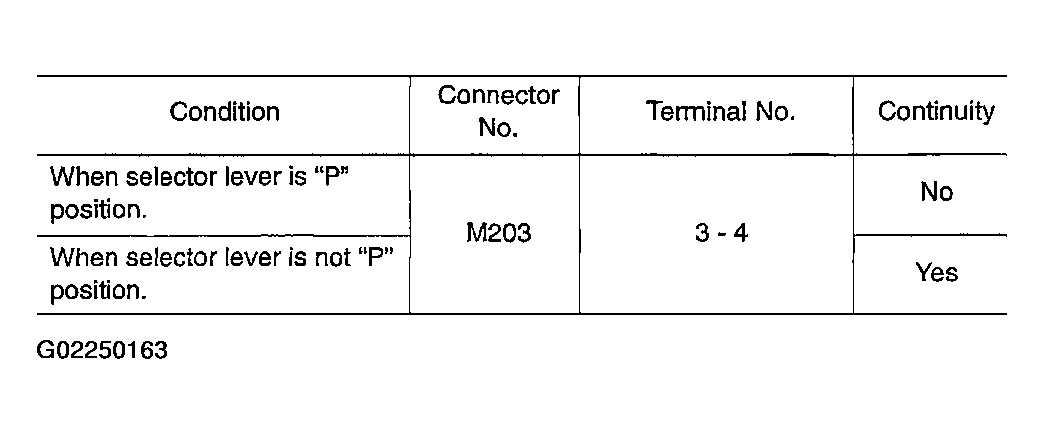

Fig 1: Condition Of Terminal

Courtesy of NISSAN MOTOR CO., U.S.A.

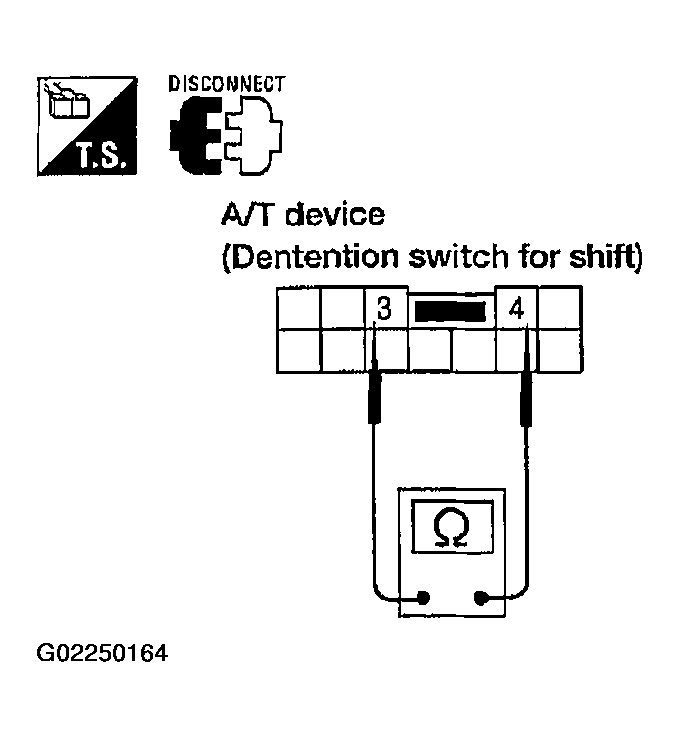

Fig 2: Checking Continuity Between Terminals Of The A/T Device

Courtesy of NISSAN MOTOR CO., U.S.A.
