Key Lock Solenoid

Key lock

• Check operation by applying battery voltage to key switch and key lock solenoid.

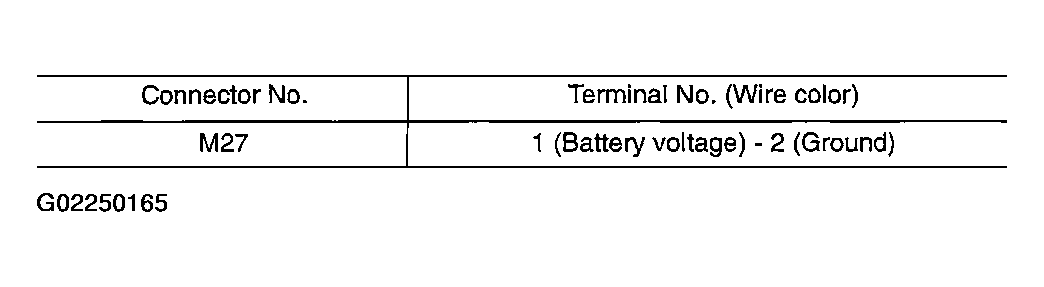

Fig 1: Key Lock Solenoid Connector Terminal Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

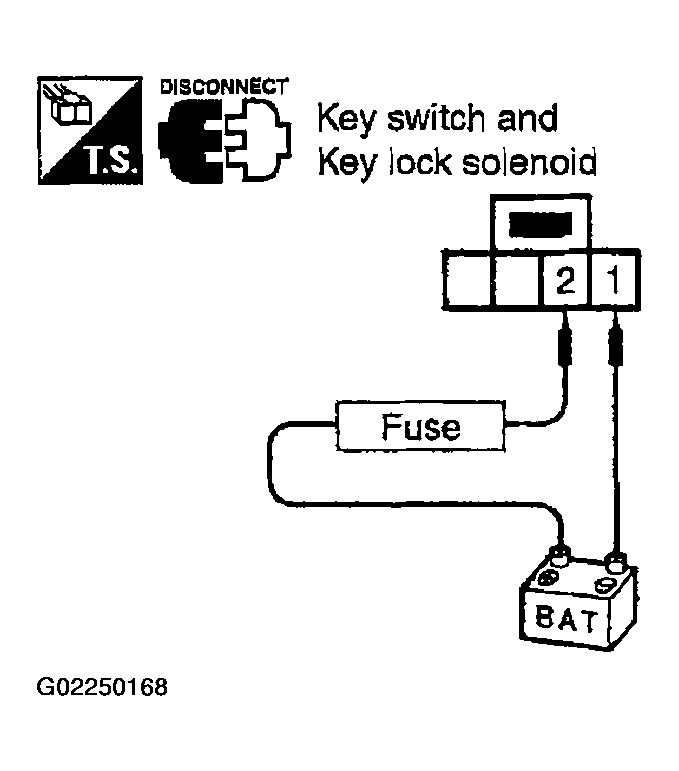

Fig 2: Checking Key Switch And Key Lock Solenoid Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

Key unlock

• Check operation by applying battery voltage to key switch and key lock solenoid.

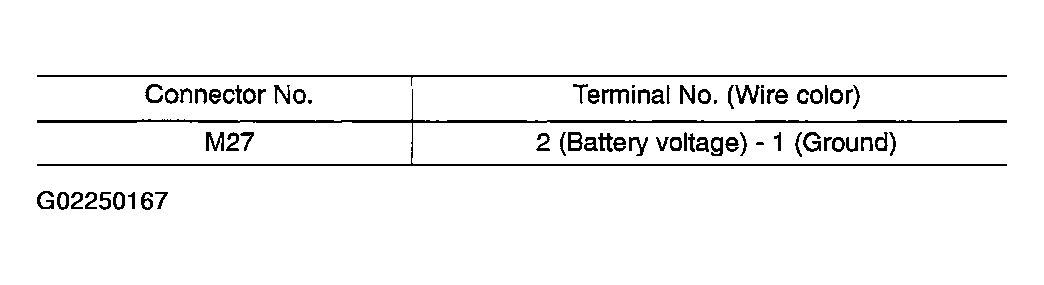

Fig 3: Key Unlock Connector Terminal Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

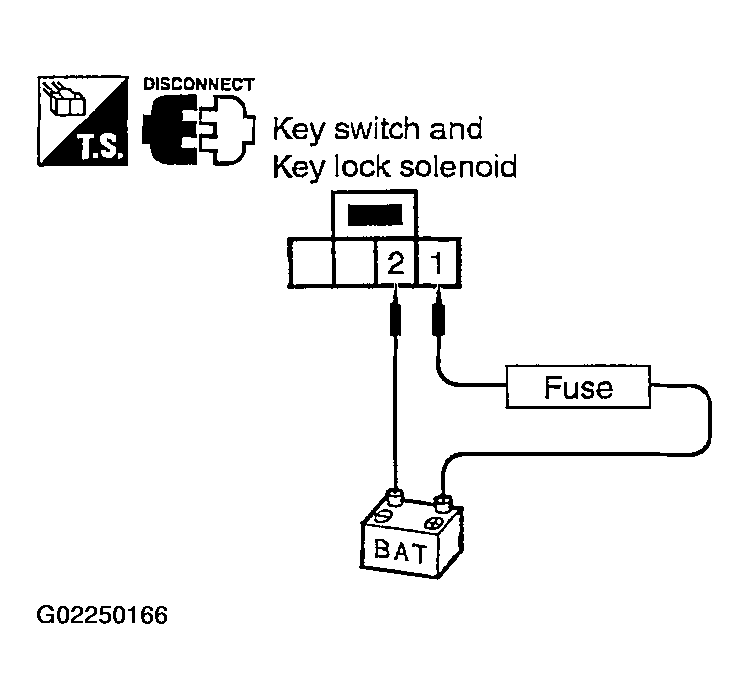

Fig 4: Checking Key Lock And Key Lock Solenoid Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
