Cross-sectional View

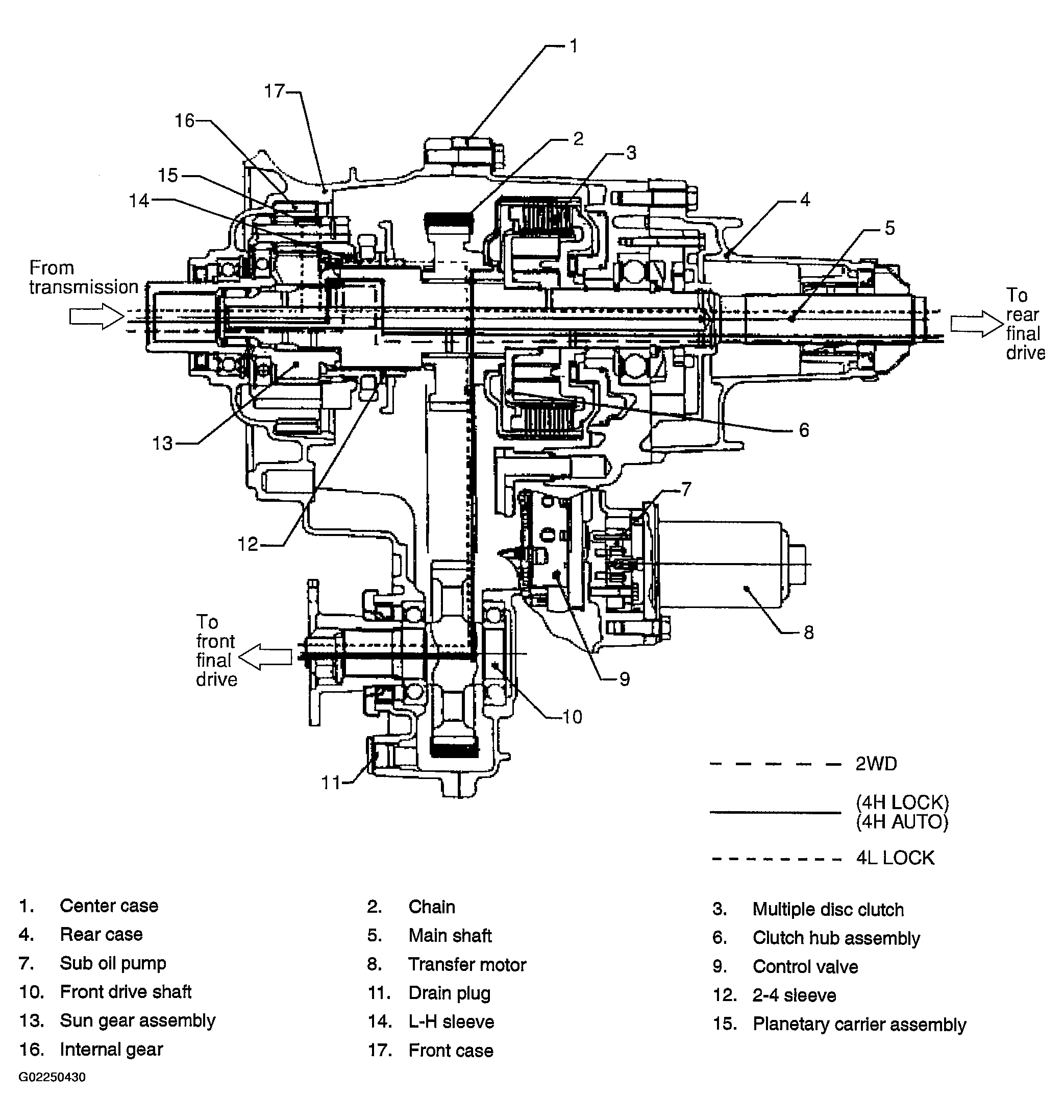

Fig 1: Identifying All-Mode 4WD System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
