Check Sliding Switch Circuit

  1. CHECK FUNCTION

    With CONSULT-II

    With "SLIDE SW-FR, SLIDE SW-RR" on the DATA MONITOR, operate the sliding switch to check ON/OFF operation.

    MONITOR ITEM CHART

    Monitor item [OPERATION or UNIT] Contents
    SLIDE SW - FR "ON/OFF" ON/OFF status judged from the sliding switch (FR) signal is displayed.
    SLIDE SW - RR "ON/OFF" ON/OFF status judged from the sliding switch (RR) signal is displayed.

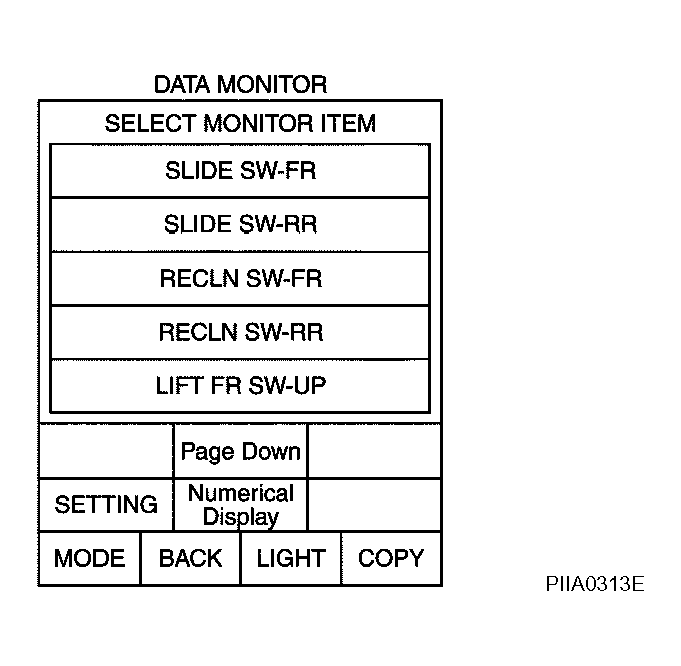

    Fig 1: CONSULT-II Function Display - DATA MONITOR
    G04077695Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Sliding switch operate, check voltage between driver seat control unit connector and ground.
      TERMINAL VOLTAGE CHART

      Connector Terminals (Wire color) Sliding switch condition Voltage (V) (Approx.)
      (+) (-)
      B152 24 (L/R) Ground FORWARD 0
      Other than above Battery voltage
      37 (W) BACKWARD 0
      Other than above Battery voltage

    OK or NG

    OK : Sliding switch circuit is OK.

    NG : GO TO 2.

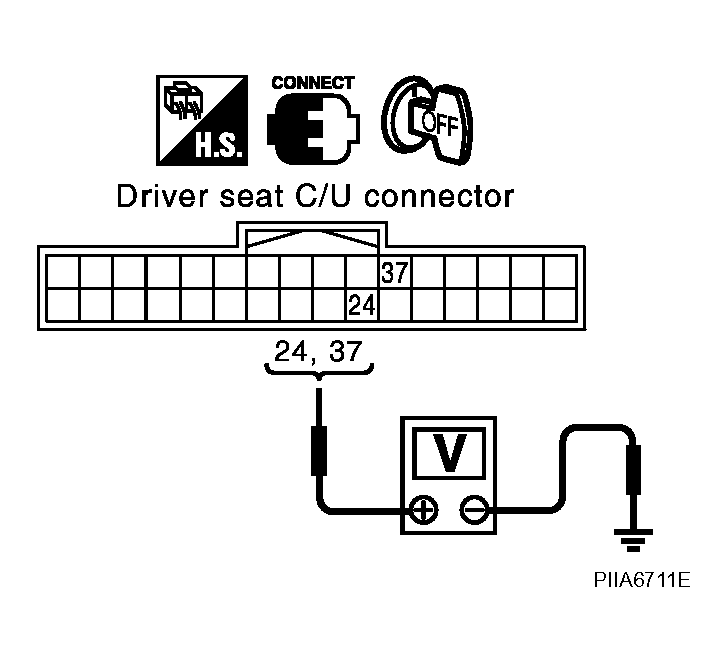

    Fig 2: Identifying Voltage Between Driver Seat Control Unit Connector And Ground
    G04077696Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK HARNESS CONTINUITY
    1. Disconnect driver seat control unit connector and power seat switch connector.
    2. Check continuity between driver seat control unit connector B152 terminals 24, 37 and power seat switch connector B175 terminals 24, 37.

      24 (L/R) - 24 (L/R) : Continuity should exist.

      37 (W) - 37 (W) : Continuity should exist.

    3. Check continuity between driver seat control unit connector B152 terminals 24, 37 and ground.

      24 (L/R) - Ground : Continuity should not exist.

      37 (W) - Ground : Continuity should not exist.

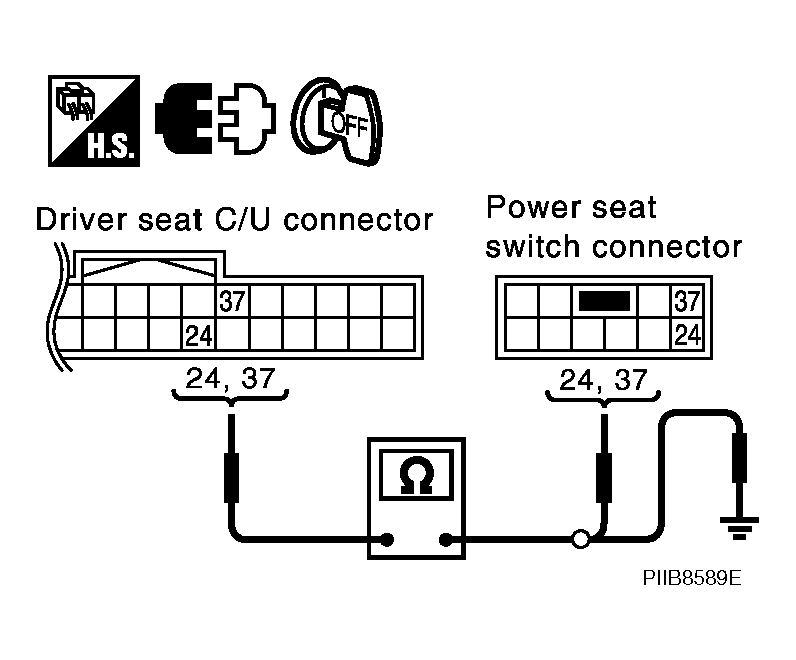

      Fig 3: Identifying Continuity Between Driver Seat Control Unit Connector B152 Terminals 24, 37 And Ground
      G04077697Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : GO TO 3.

    NG : Repair or replace harness between driver seat control unit and power seat switch.

  3. CHECK SLIDING SWITCH

    Sliding switch operate, check continuity between power seat switch connector B175 terminal 24, 27 and 61B.

    TERMINAL CONTINUITY CHART

    Connector Terminal Sliding switch condition Continuity
    B175 24 61B FORWARD Yes
    Other than above No
    37 BACKWARD Yes
    Other than above No

    OK or NG

    OK : Check the condition of the harness and connector.

    NG : Replace power seat switch.

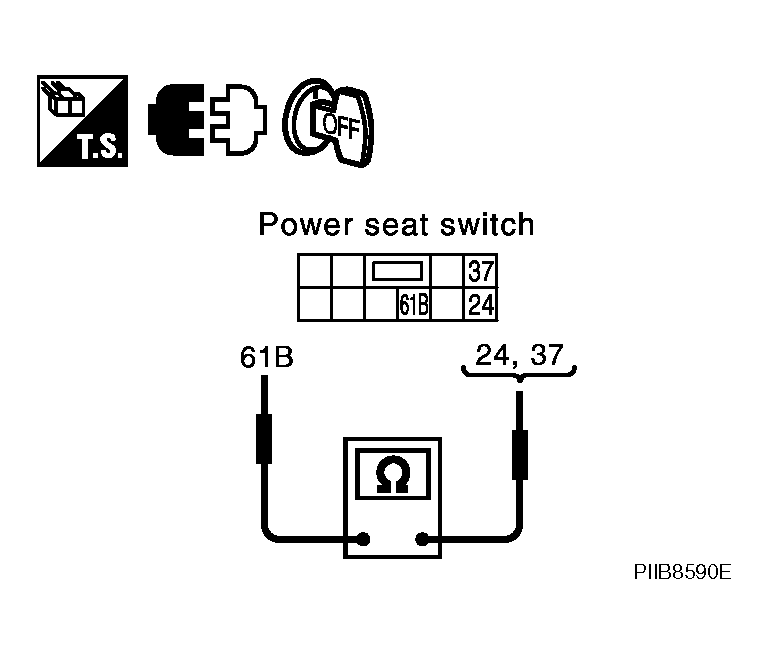

    Fig 4: Identifying Continuity Between Power Seat Switch Connector B175 Terminal 24, 27 And 61B
    G04077698Courtesy of NISSAN MOTOR CO., U.S.A.
