Check Telescopic Sensor Circuit

With CONSULT-II

Operate the telescopic switch with "TELESCO SEN" on the DATA MONITOR to make sure the voltage changes.

Fig 1: CONSULT-II Function Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector and ground.
   TERMINAL VOLTAGE CHART



   Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   M49	23 (Y/B)	Ground	Telescopic top position	1
   			Telescopic bottom position	4

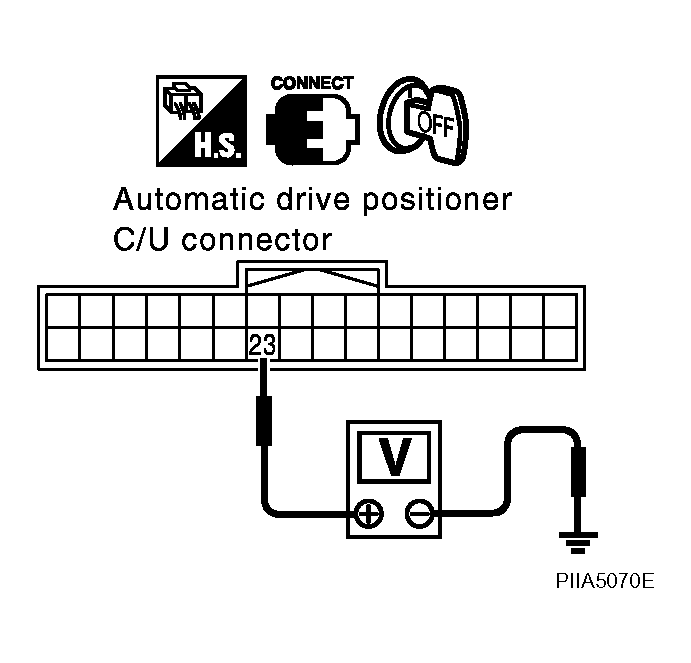

   Fig 2: Identifying Voltage Between Automatic Drive Positioner Control Unit Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Telescopic sensor circuit is OK.

NG : GO TO 2.

1. Disconnect automatic drive positioner control unit connector and tilt sensor and telescopic sensor connector.
2. Check continuity harness between automatic drive positioner control unit connector M49 terminals 23 and tilt sensor and telescopic sensor connector M28 terminals 3.

   23 (Y/B) - 3 (Y/B) : Continuity should exist.

3. Check continuity harness between automatic drive positioner control unit connector M49 terminals 23 and ground.

   23 (Y/B) - Ground : Continuity should not exist.

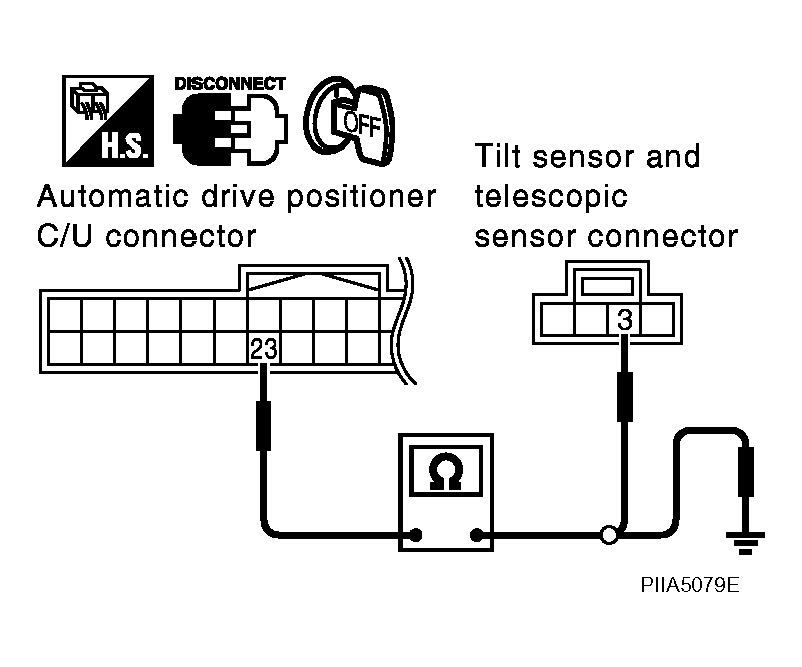

   Fig 3: Identifying Continuity Harness Between Automatic Drive Positioner Control Unit Connector M49 Terminals 23 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace tilt sensor and telescopic sensor.

NG : Repair or replace harness between automatic drive positioner control unit and tilt sensor and telescopic sensor.
