Refrigerant Pressure Sensor: Wiring Diagram

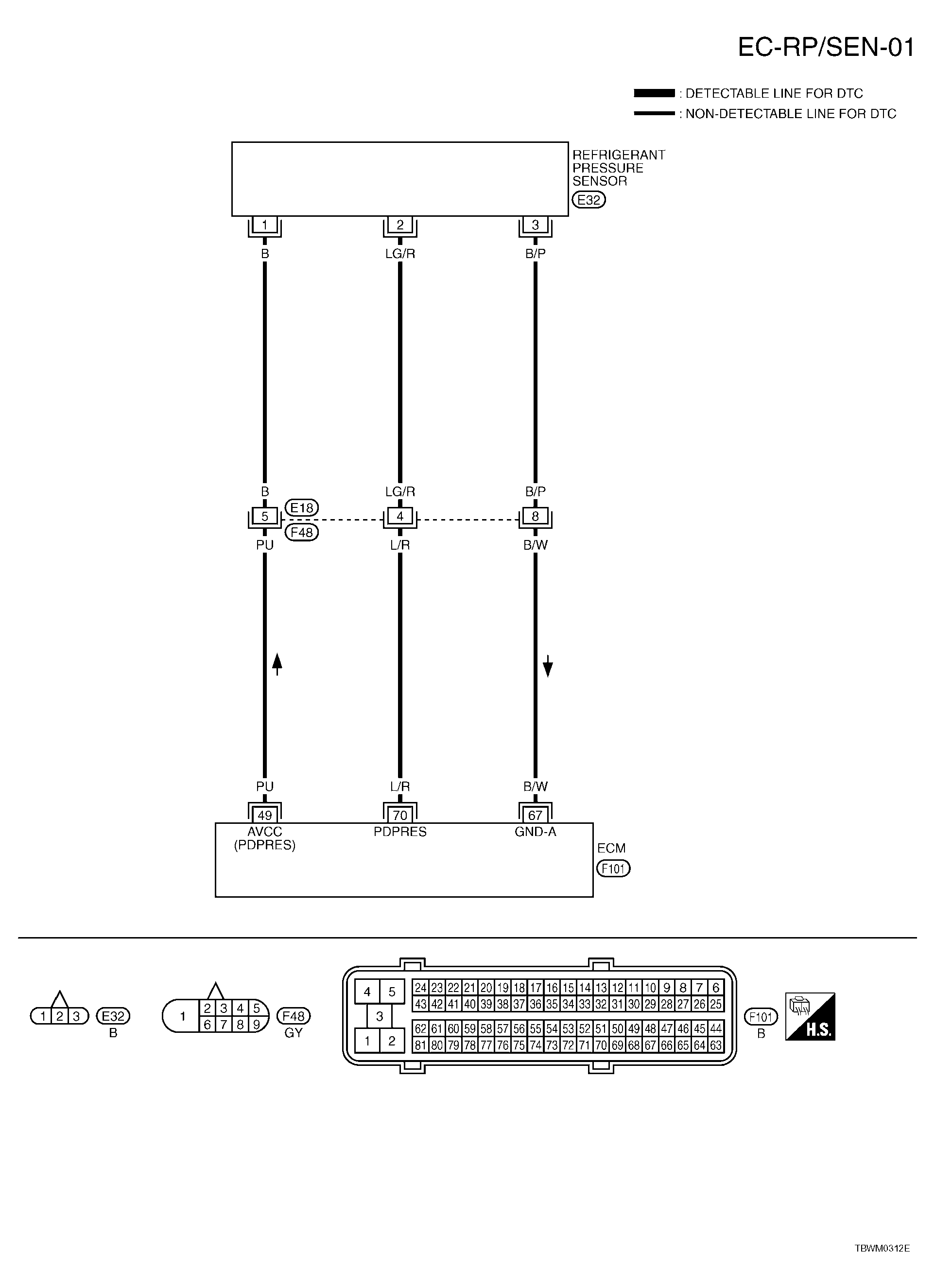

Fig 1: EC-RP/SEN-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ECM SPECIFICATION DATA REFERENCE VALUES

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
49	PU	Sensor power supply (Refrigerant pressure sensor)	[Ignition switch: ON]	Approximately 5V
67	B/W	Sensor ground	[Engine is running] Warm-up condition Idle speed	Approximately 0V
70	L/R	Refrigerant pressure sensor	[Engine is running] Warm-up condition Both A/C switch and blower fan switch: ON (Compressor operates)	1.0 - 4.0V
