Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS SPECIFICATIONS

Tool number (Kent-Moore No.) Tool name Description
KV10117100
(J-36471-A)

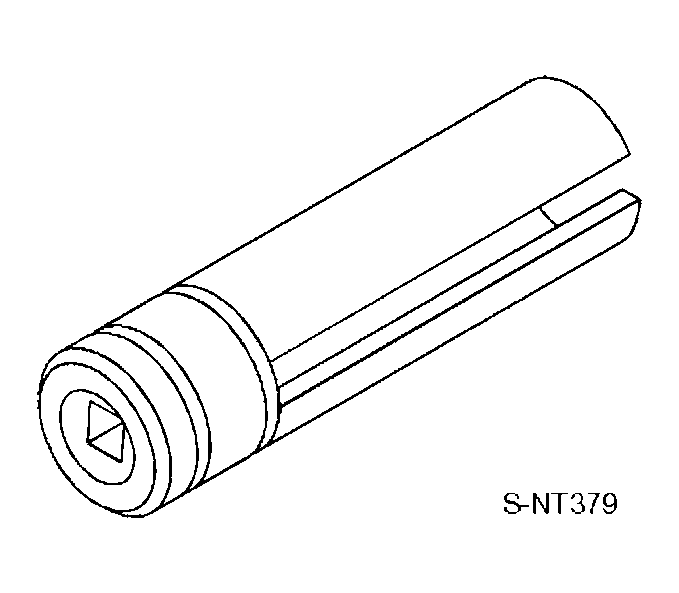

Heated oxygen sensor wrench
G04073629Courtesy of NISSAN MOTOR CO., U.S.A.
 Loosening or tightening heated oxygen sensor with 22 mm (0.87 in) hexagon nut
KV10114400
(J-38365)
Heated oxygen sensor wrench
G04074479Courtesy of NISSAN MOTOR CO., U.S.A.
 Loosening or tightening air fuel ratio (A/F) sensor
a: 22 mm (0.87 in)
(J-44321)

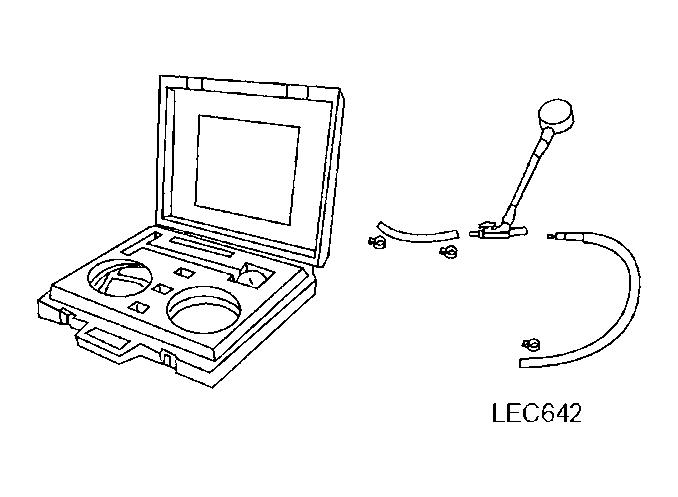

Fuel pressure gauge kit
G04073631Courtesy of NISSAN MOTOR CO., U.S.A.
 Checking fuel pressure
(J-44321-6)

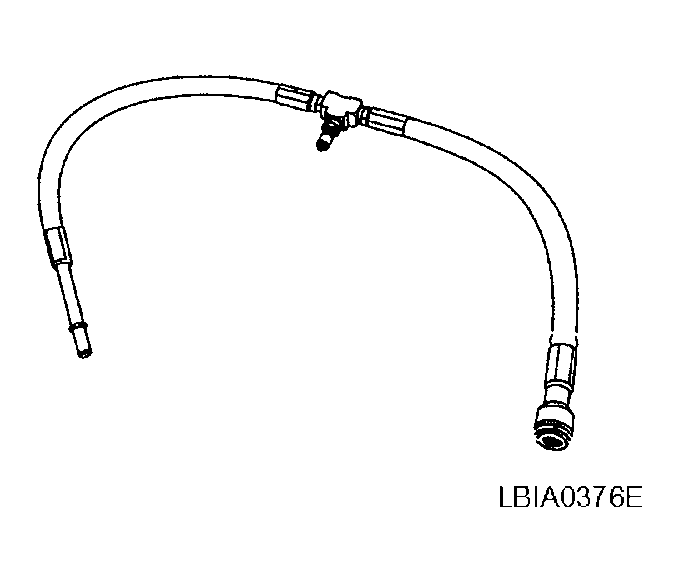

Fuel pressure adapter
G04073632Courtesy of NISSAN MOTOR CO., U.S.A.
 Connecting fuel pressure gauge to quick connector type fuel lines.
(J-44626)
Air fuel ratio (A/F) sensor wrench
G04073633Courtesy of NISSAN MOTOR CO., U.S.A.
 Loosening or tightening air fuel ratio (A/F) sensor 1
(J-45488)
Quick connector release
G04073634Courtesy of NISSAN MOTOR CO., U.S.A.
 Remove fuel tube quick connectors in engine room.
KV109E0010
(J-46209)

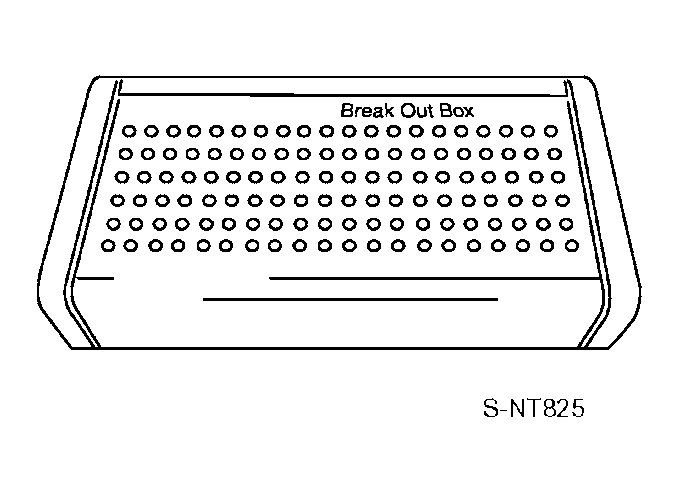

Break-out box
G04073635Courtesy of NISSAN MOTOR CO., U.S.A.
 Measuring ECM signals with a circuit tester
KV109E0080
(J-45819)

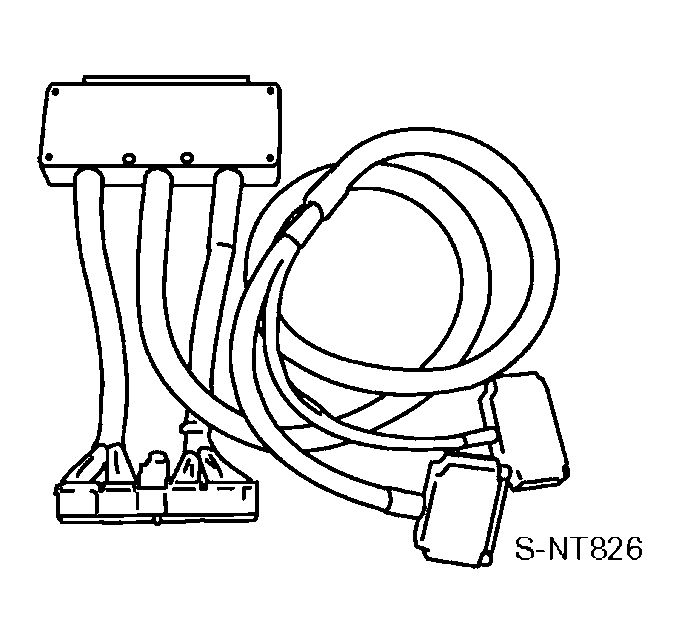

Y-cable adapter
G04073636Courtesy of NISSAN MOTOR CO., U.S.A.
 Measuring ECM signals with a circuit tester
