Check Key Switch (Intelligent Key Unit Input)

With CONSULT-II

Display "KEY SW" on DATA MONITOR screen, and check if ON/OFF display is linked to insertion of mechanical key in ignition knob.

OK or NG

OK : Key switch is OK.

NG : GO TO 2.

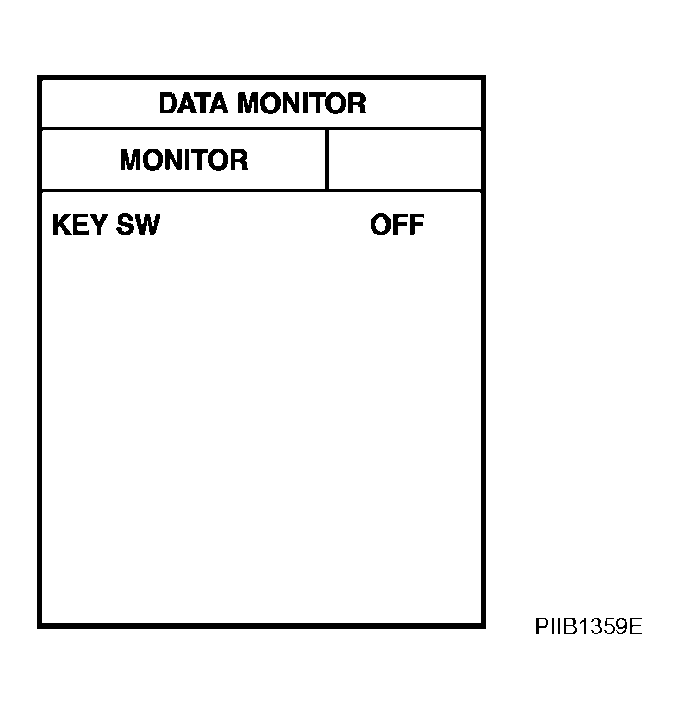

Fig 1: CONSULT-II DISPLAY - "KEY SW"

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove mechanical key from ignition knob.
2. Disconnect key switch and ignition knob switch connector.
3. Check voltage between key switch and ignition knob switch connector M22 terminal 3 (L/R) and ground.

   3 (L/R) - Ground : Battery voltage

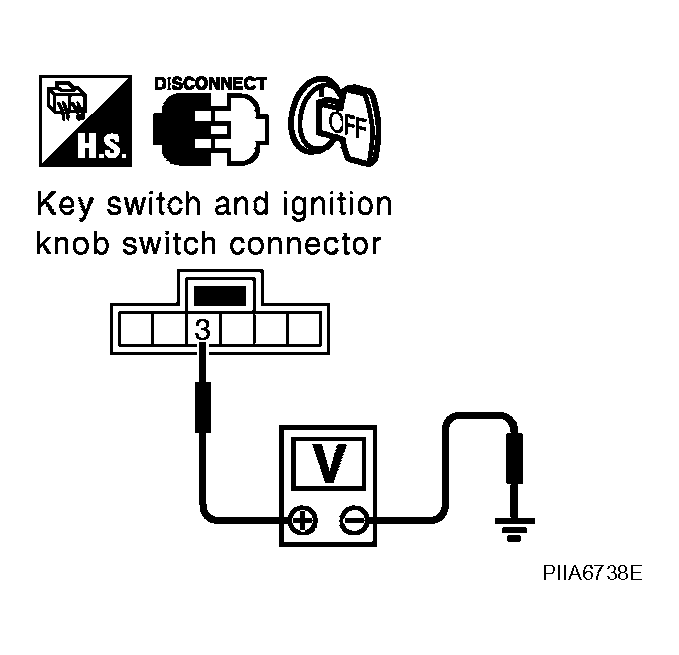

   Fig 2: Identifying Voltage Between Key Switch And Ignition Knob Switch Connector M22 Terminal 3 (L/R) And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.

NG : Repair or replace key switch power supply circuit.

Check continuity between key switch and ignition knob switch terminals 3 and 4.

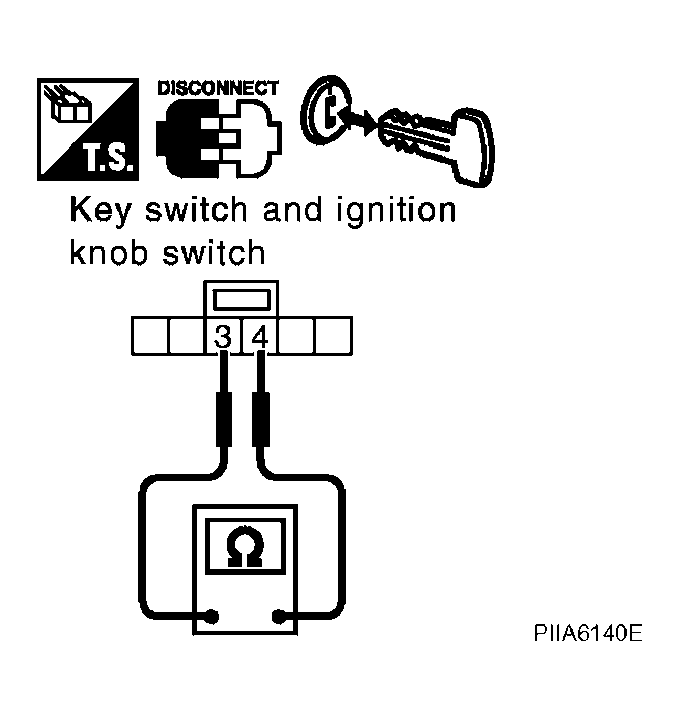

Fig 3: Identifying Continuity Between Key Switch And Ignition Knob Switch Terminals 3 And 4

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 4.

NG : Replace key switch.

1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit connector M34 terminal 7 (B/W) and key switch and ignition knob switch connector M22 terminal 4 (B/W).

   7 (B/W) - 4 (B/W) : Continuity should exist.

3. Check continuity between key switch and ignition knob switch connector M22 terminal 4 (B/W) and ground.

   4 (B/W) - Ground : Continuity should not exist.

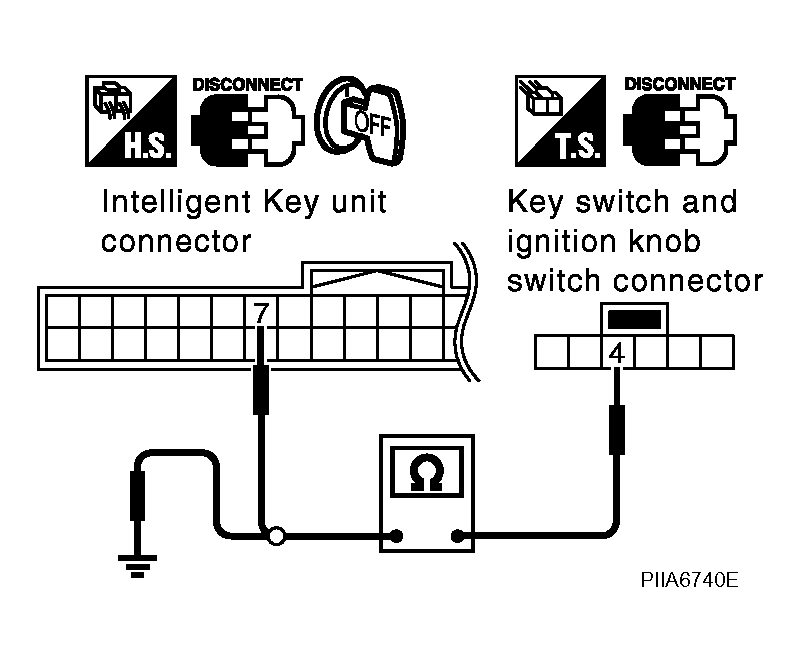

   Fig 4: Identifying Continuity Between Key Switch And Ignition Knob Switch Connector M22 Terminal 4 (B/W) And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace Intelligent key unit.

NG : Repair or replace harness between Intelligent Key unit and key switch and ignition knob switch.
