Control Device Removal and Installation: Notes

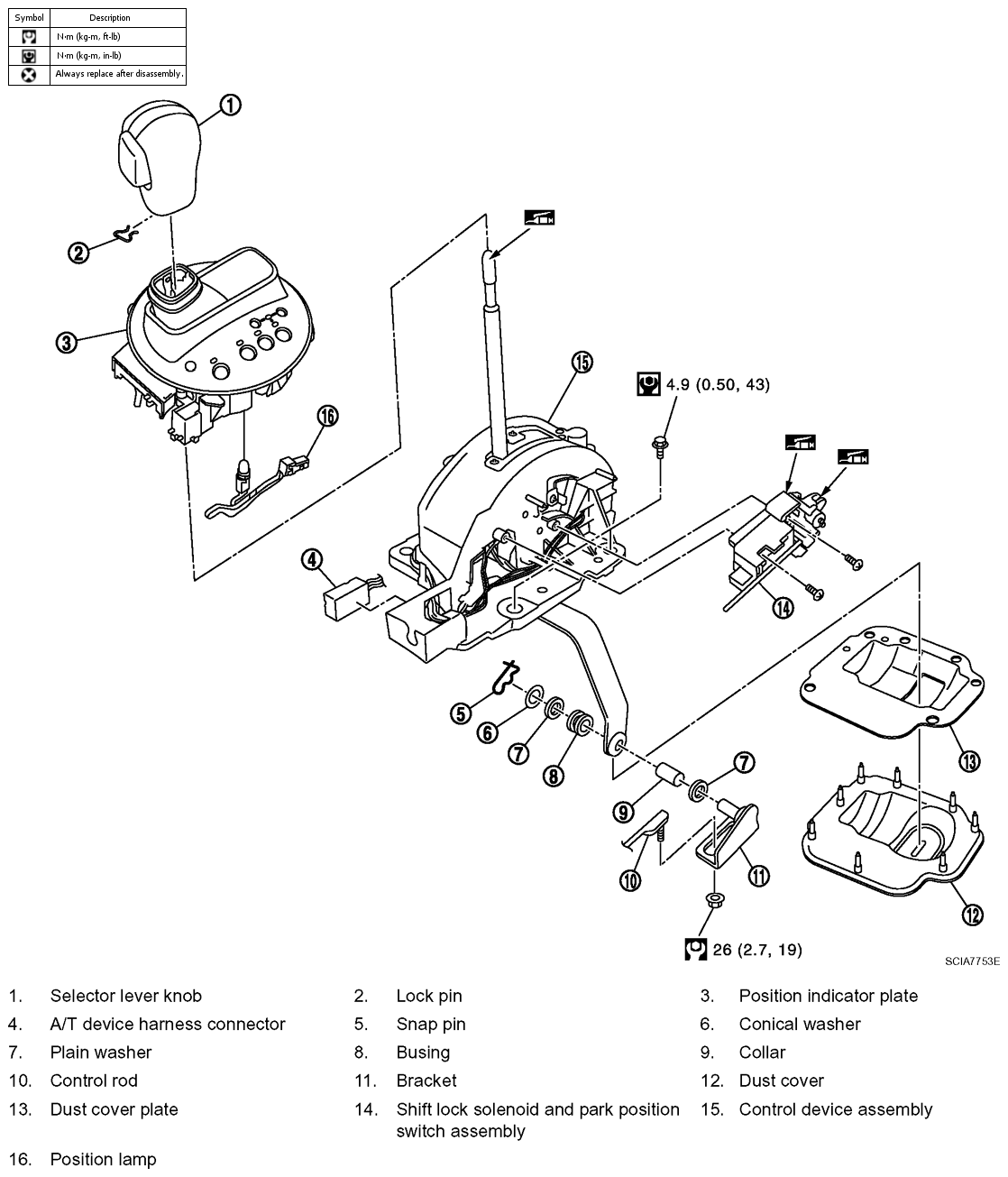

Fig 1: Shift Control System Replacement Components With Torque Specifications
G04075622Courtesy of NISSAN MOTOR CO., U.S.A.
