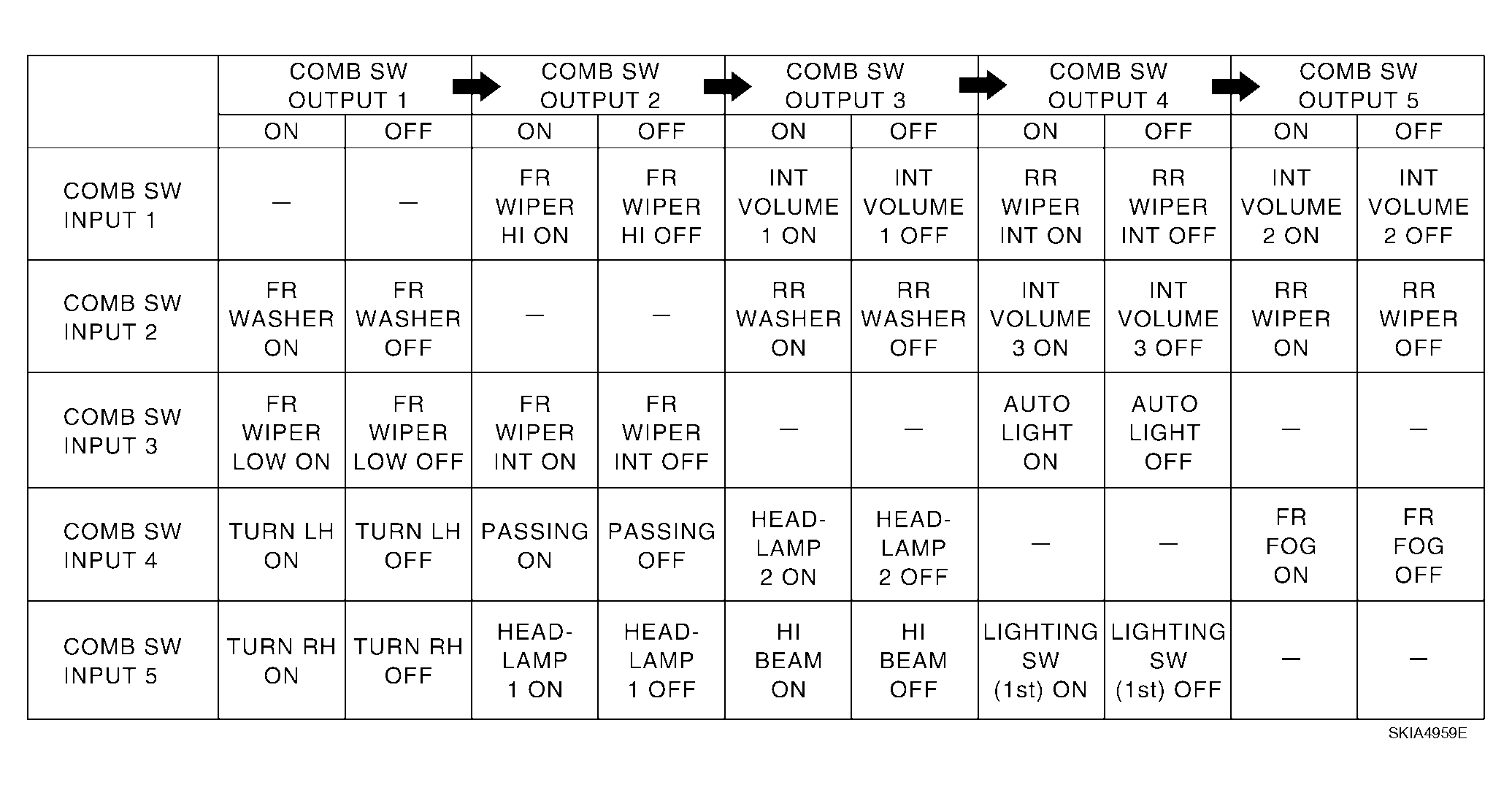

Operation Table Of BCM and Combination Switches

BCM reads operation status of combination switch using combinations shown in table below.

Fig 1: Combination Switch Function System Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
