Front Side Member
Work after hoodledge has been removed.

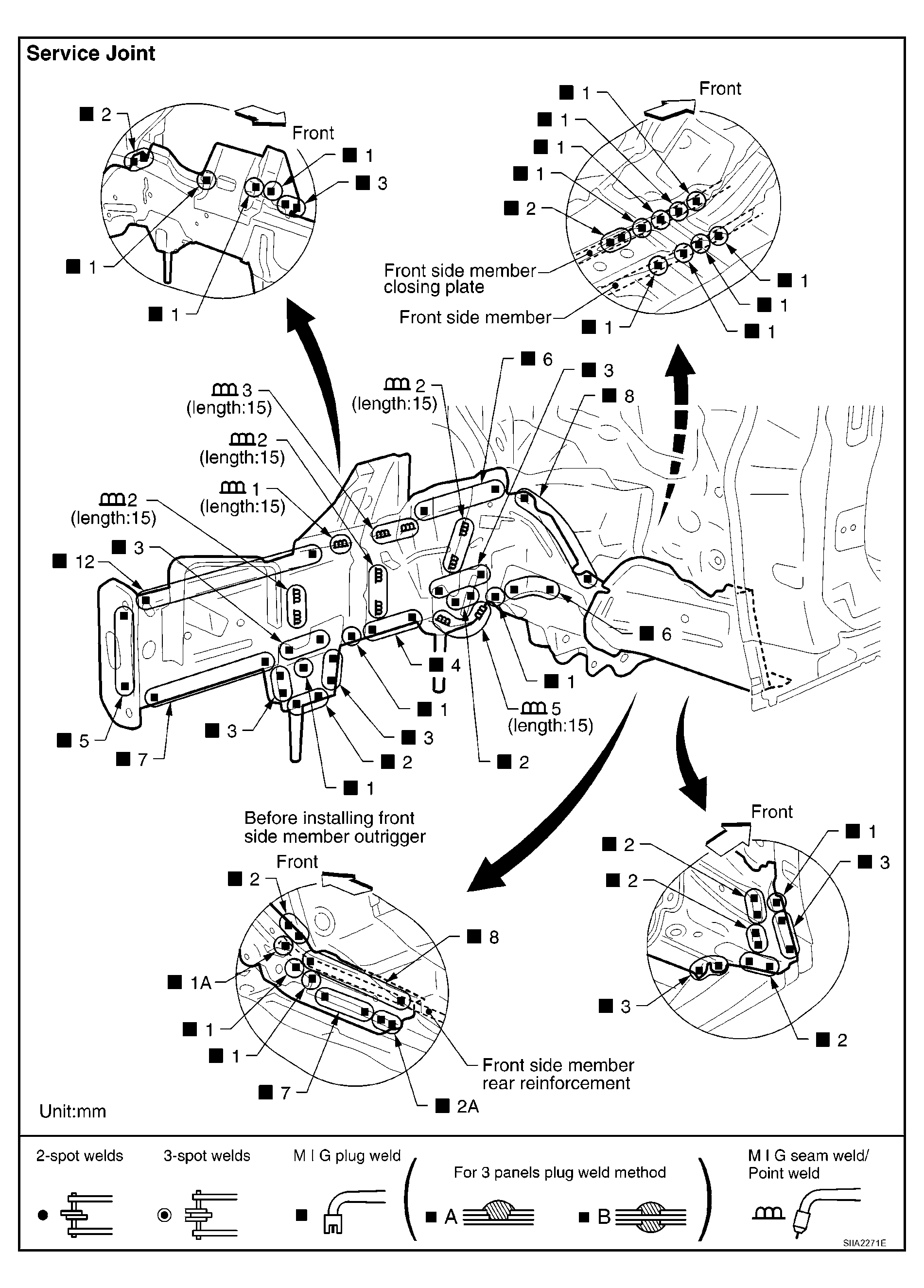

Fig 1: Front Side Member - Service Joint
Courtesy of NISSAN MOTOR CO., U.S.A.

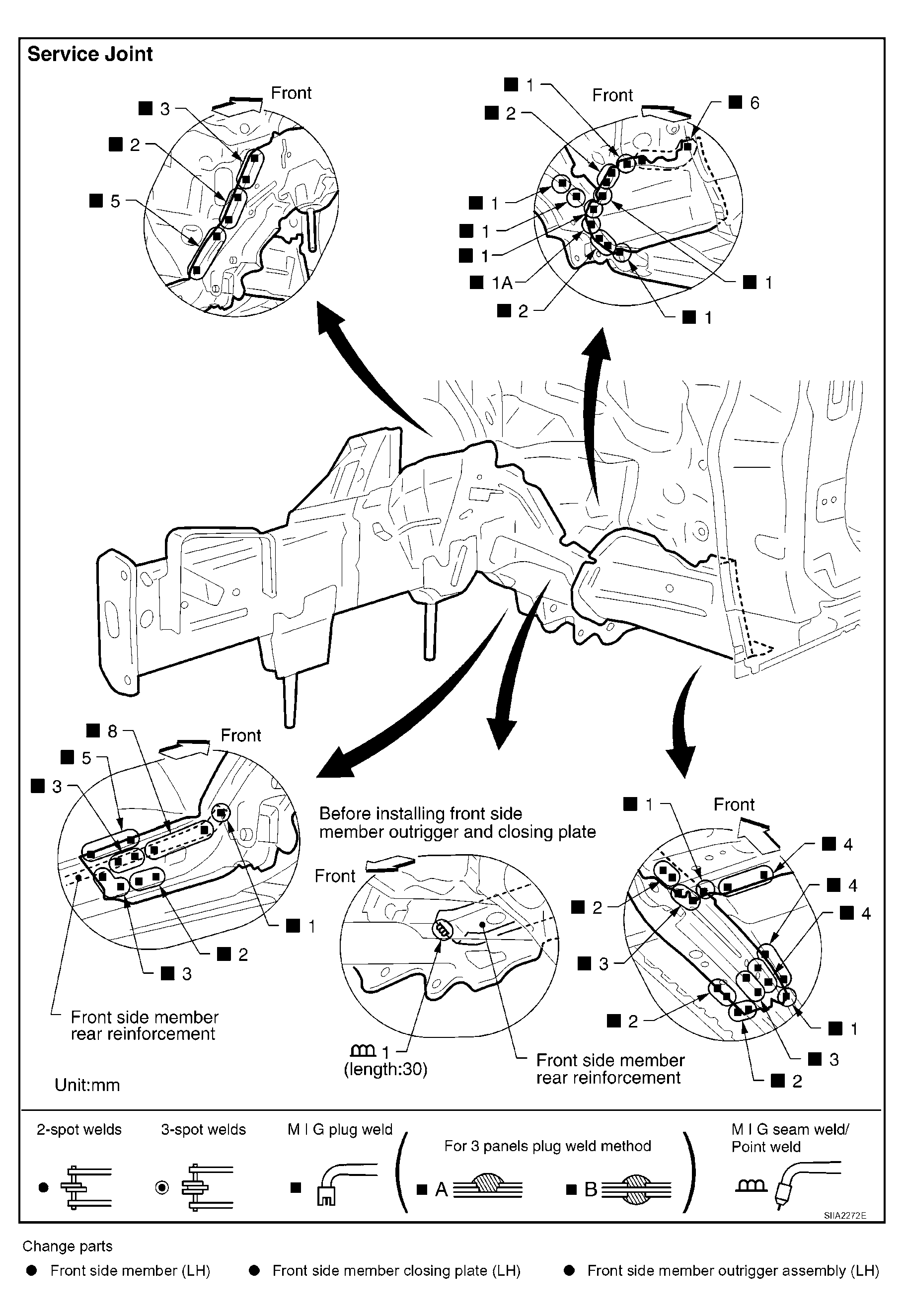

Fig 2: Front Side Member - Service Joint
Courtesy of NISSAN MOTOR CO., U.S.A.
