Intelligent Key System: Schematic

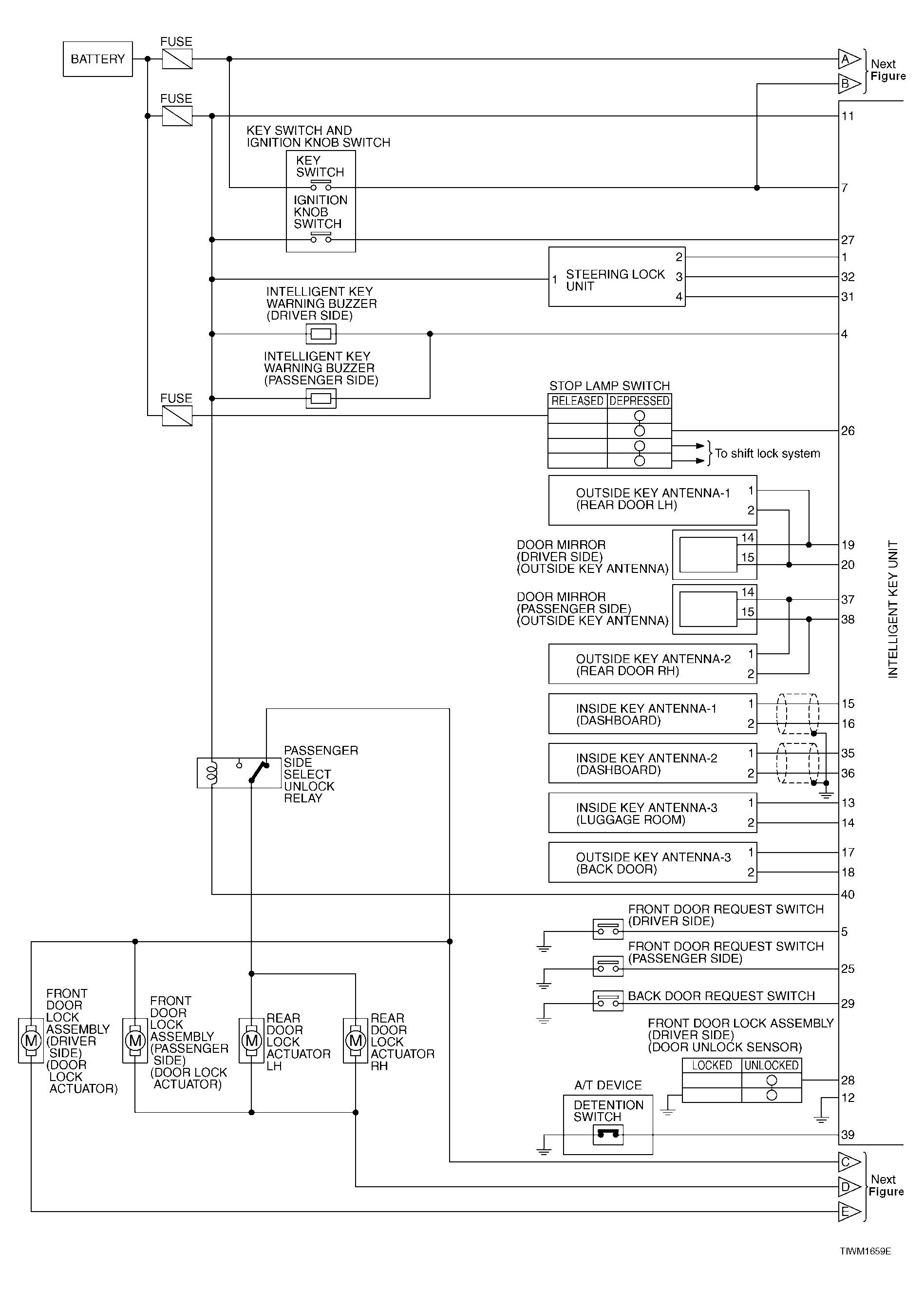

Fig 1: Schematic - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

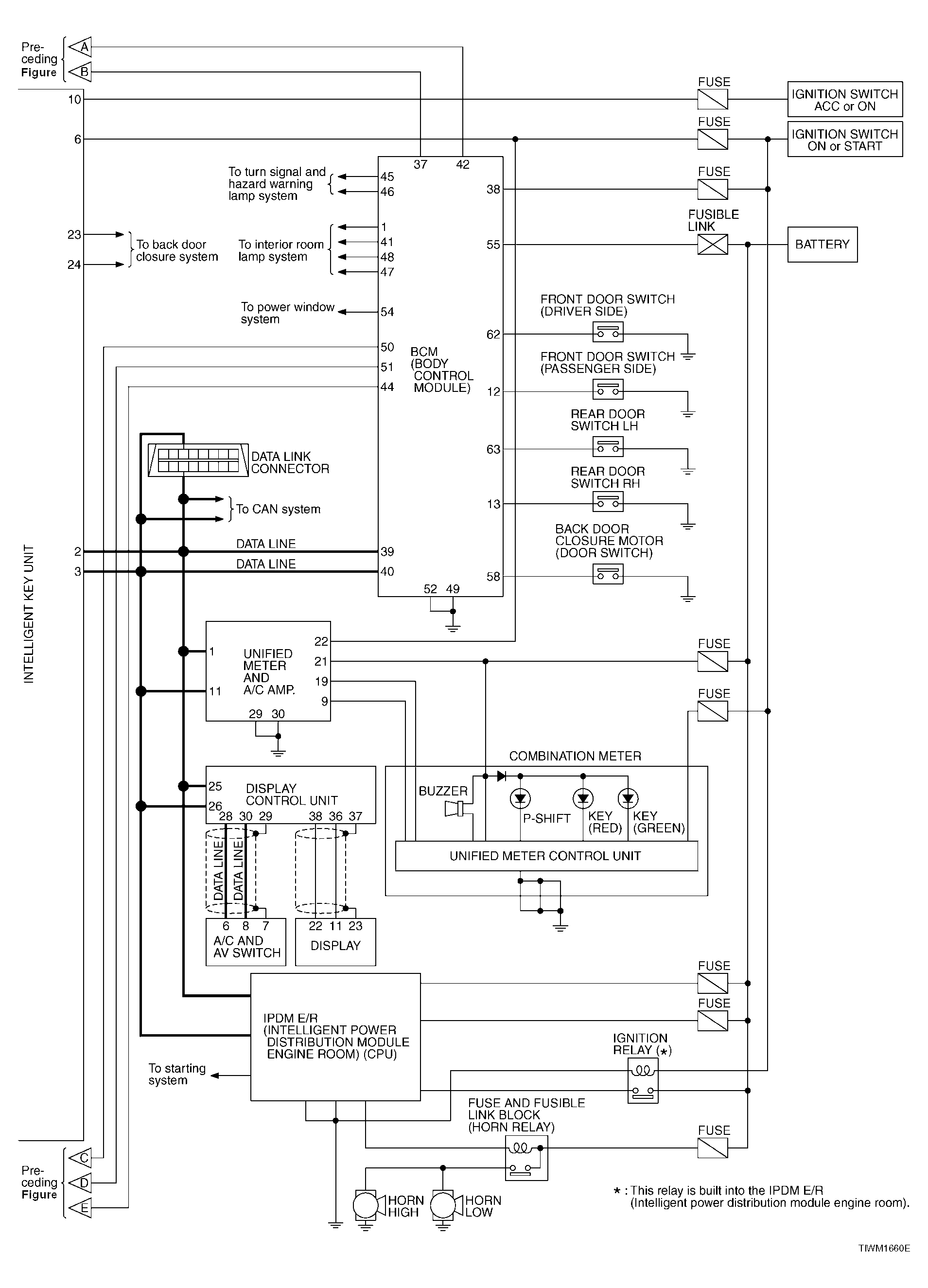

Fig 2: Schematic - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
