Check Key Switch Circuit (With Intelligent Key)
- CHECK KEY SWITCH POWER SUPPLY CIRCUIT (WITH CONSULT-II)
With CONSULT-II
Touch "BCM". With "IGN KEY SW" on the DATA MONITOR, Check ON/OFF operation.
*: Refer to "DATA MONITOR ".
MONITOR ITEM CHARTMonitor item [OPERATION or UNIT] Contents IGN KEY SW* "ON/OFF" Key inserted (ON)/key removed (OFF) status judged from the key-in detection switch is displayed. OK or NG
OK : Key switch circuit is OK.
NG : GO TO 2.
- CHECK KEY SWITCH POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect key switch and ignition knob switch connector.

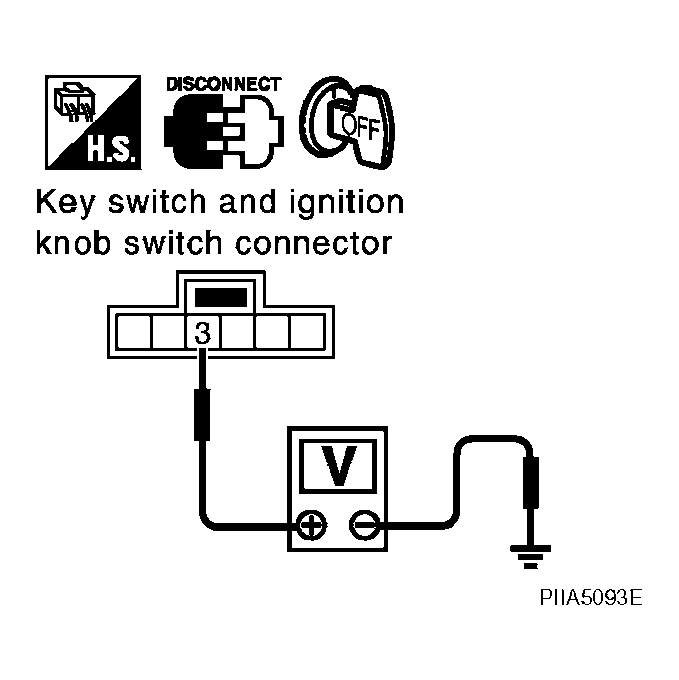

- Check voltage between key switch and ignition knob switch connector M22 terminal 3 and ground.
3 (L/R) - Ground : Battery voltage.
OK or NG
OK : GO TO 3.
NG : Check harness between key switch and fuse.
- CHECK KEY SWITCH

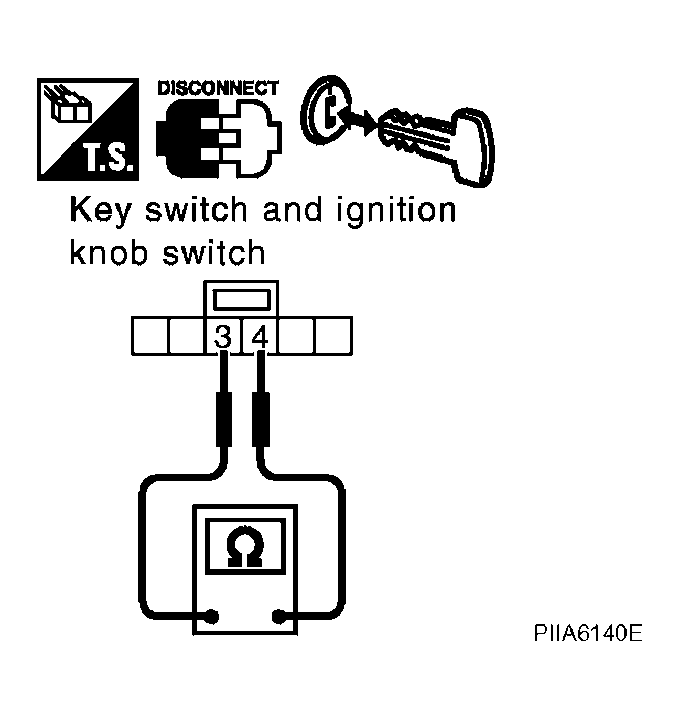

Check continuity between key switch and ignition knob switch connector M22 terminal 3 and 4.
TERMINAL CONTINUITY CHARTConnector Terminal Condition Continuity M22 3 4 Key is inserted in ignition key cylinder. Yes Key is removed from ignition key cylinder. No OK or NG
OK : GO TO 4.
NG : Replace key switch and ignition knob switch.
- CHECK HARNESS CONTINUITY
- Disconnect key switch and ignition knob switch connector and BCM connector.

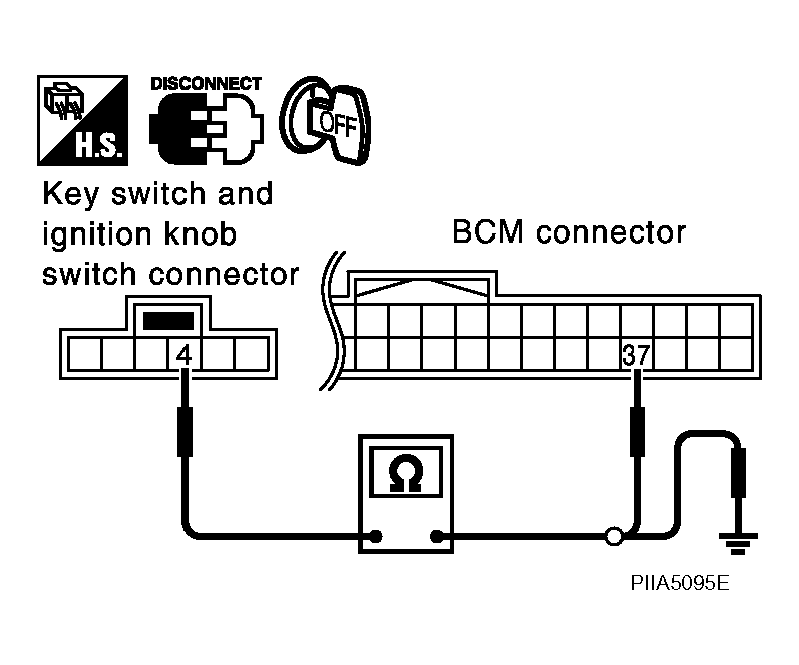

- Check continuity between key switch and ignition knob switch connector M22 terminal 4 and BCM connector M3 terminal 37.
4 (B/W) - 37 (B/W) : Continuity should exist.
- Check continuity between key switch and ignition knob switch connector M22 terminal 4 and ground.
4 (B/W) - Ground : Continuity should not exist.
OK or NG
OK : Key switch circuit is OK.
NG : Repair or replace harness between key switch and ignition knob switch and BCM.
