Fuel Level Sensor Unit (Sub)

Check resistance between terminals 1 and 2.

TERMINALS REFERENCE VALUE CHART

Terminal Float position [mm (in)] Resistance value [Ω]
1 2 (1) Full 6 (0.24) Approx. 3
(2) Empty 203 (7.99) Approx. 48
(1) When float rod is in contact with stopper.
(2) When float rod is in contact with stopper.

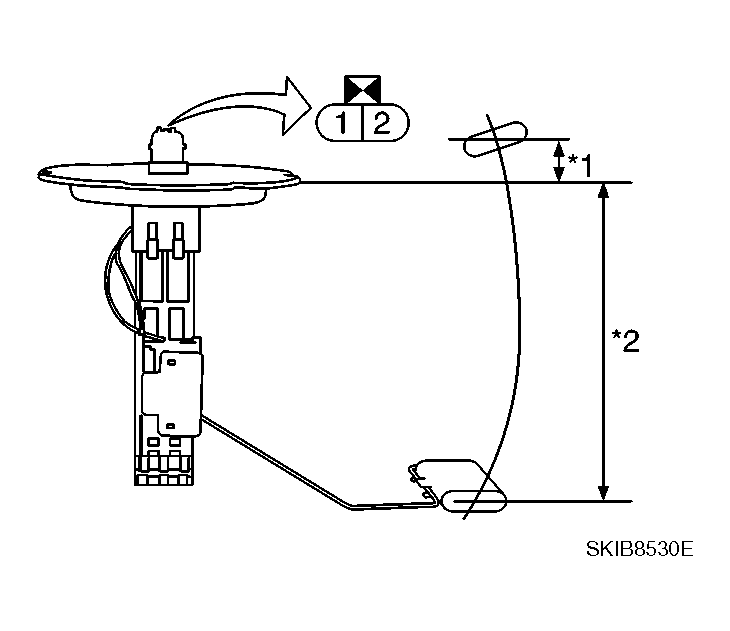

Fig 1: Identifying Fuel Level Sensor Unit
G04078462Courtesy of NISSAN MOTOR CO., U.S.A.
