Fuel Level Sensor Unit and Fuel Pump (Main)

Check the resistance between terminals 2 and 5.

TERMINALS REFERENCE VALUE CHART

Terminal

Float position [mm (in)]

Resistance value [Ω]

⁽¹⁾

Full

236 (9.29)

Approx. 3

⁽²⁾

Empty

29 (1.14)

Approx. 80

⁽¹⁾	When float rod is in contact with stopper.

⁽²⁾	When float rod is in contact with stopper.

If the results of check are NG, check the fuel level sensor unit and fuel pump (main) harness. Refer to "FUEL LEVEL SENSOR UNIT AND PUMP (MAIN) HARNESS ".

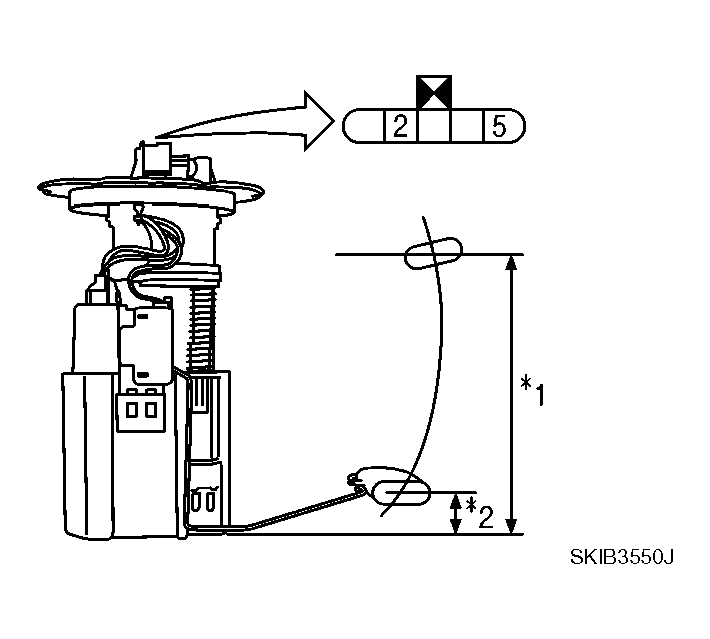

Fig 1: Identifying Fuel Level Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
