Terminals and Reference Value for Rear View Camera Control Unit

TERMINALS REFERENCE VALUE CHART

Terminals		Item	Condition		Reference value
Terminal No.	Wire color		Ignition switch	Operation
1	R/W	Battery power supply	OFF	-	Battery voltage
2	LG	Ignition power supply	ACC	-	Battery voltage
3	B	Ground	ON	-	Approx. 0 V
4	OR	Reverse signal input	ON	A/T selector lever R range position	Battery voltage
				A/T selector lever in other than R range position	Approx. 0 V
5	G/Y	CONTROL 1	ON	-	Approx. 0 V
6	PU	DDL	-	-	-
8	R/W	Camera power output	ON	A/T selector lever R range position	Approx. 6 V
9	-	Camera image input (-)	ON	-	Approx. 0 V

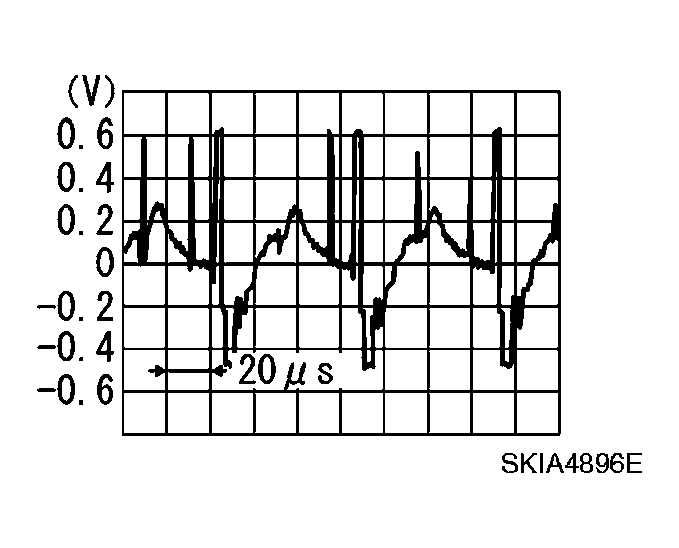

10	W	Camera image input (+)	ON	A/T selector lever R range position
11	-	Shield ground	-	-	-

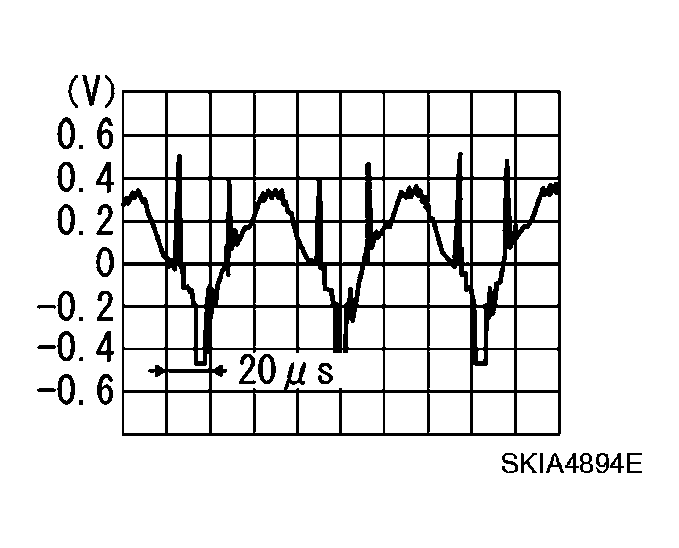

12	L	Composite image output	ON	A/T selector lever R range position

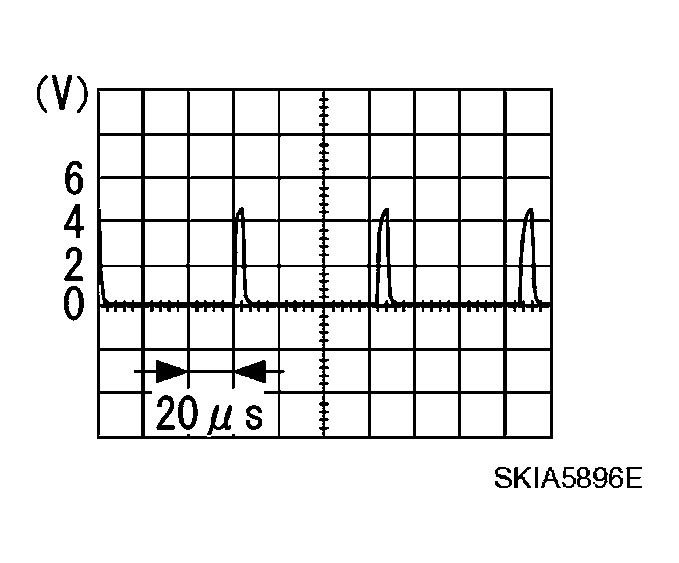

14	R	Composite image synchronization signal output	ON	A/T selector lever R range position
