Key Switch

Check continuity between terminals 1 and 2.

1 - 2

When key is inserted to ignition key cylinder : Continuity should exist.

When key is removed from ignition key cylinder : Continuity should not exist.

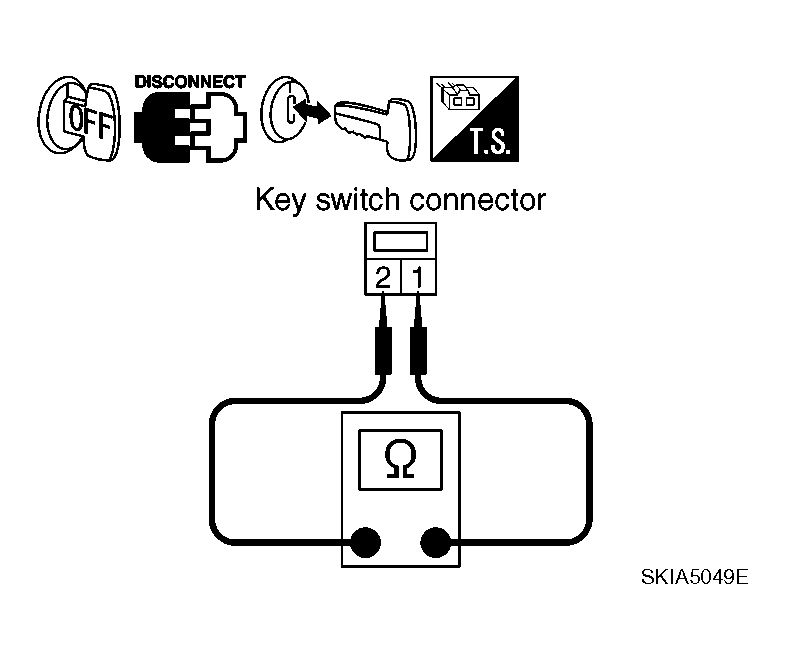

Fig 1: Identifying Continuity Between Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.
