Warning Chime: Schematic

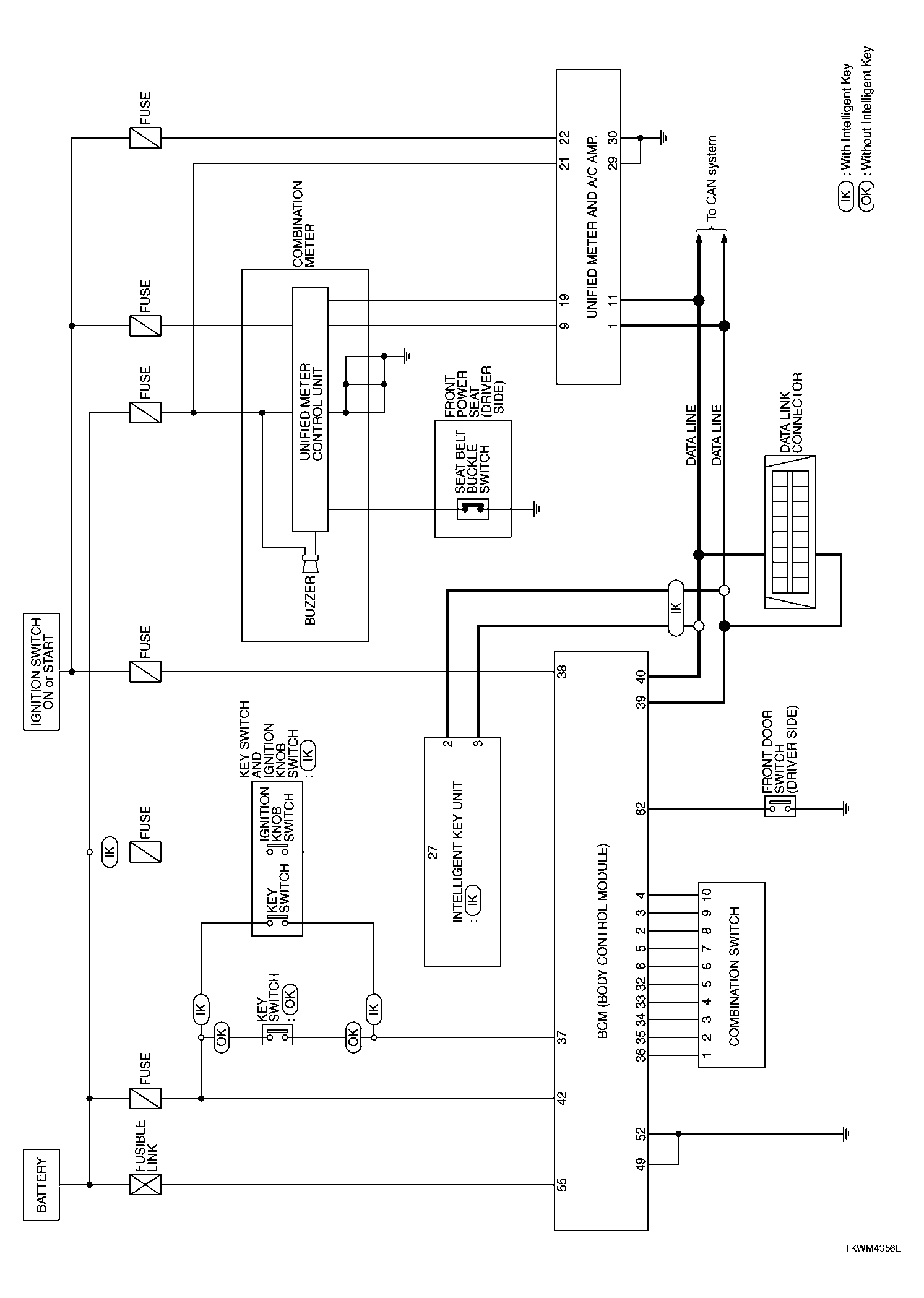

Fig 1: Identifying Warning Chime Schematic Diagram
G04078513Courtesy of NISSAN MOTOR CO., U.S.A.
