Diagnostic Procedure
- INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
Yes or No
Yes (With CONSULT-II) : GO TO 2.
Yes (Without CONSULT-II) : GO TO 3.
No : GO TO 3.
- CHECK OVERALL FUNCTION
With CONSULT-II
- Start engine.
- Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
- Make sure that each circuit produces a momentary engine speed drop.
OK or NG
OK : INSPECTION END
NG : GO TO 3.
- CHECK FUNCTION OF FUEL INJECTOR-I
- Turn ignition switch OFF.

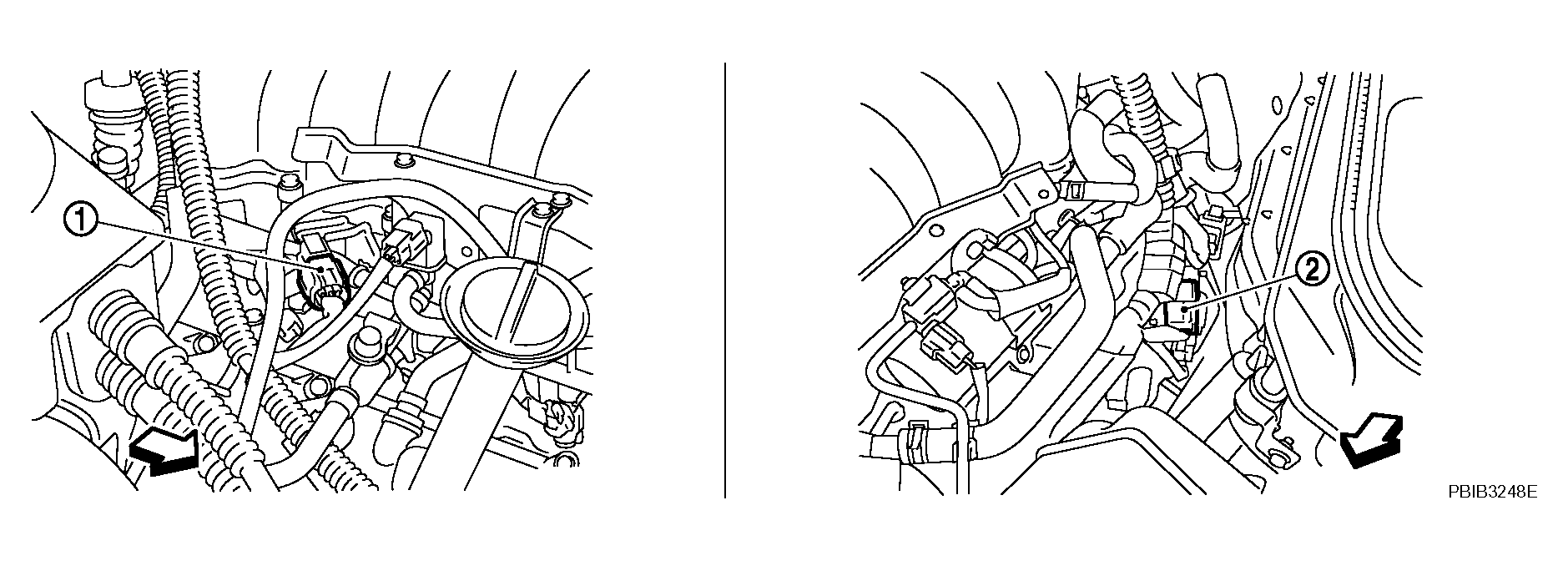

- Disconnect harness connector F21, F201 (bank 1) and F41, F221 (bank 2).
- Turn ignition switch ON.

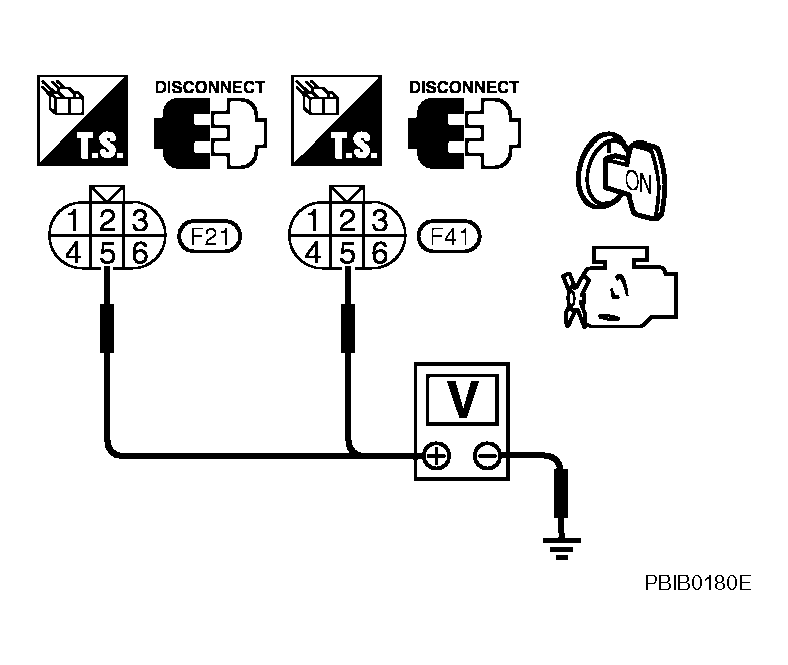

- Check voltage between the following;
harness connector F21 terminal 5 and ground,
harness connector F41 terminal 5 and ground
with CONSULT-II or tester.
Voltage: Battery voltage
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between the following terminals.Fig 3: Identifying Voltage Between Harness Connector F21 Terminal 5 And Ground And Harness Connector F41 Terminal 5 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
HARNESS CONNECTOR TERMINAL REFERENCECylinder Harness connector terminal ECM terminal 1 F21 terminal 3 23 3 F21 terminal 2 22 5 F21 terminal 1 21 7 F21 terminal 6 44 2 F41 terminal 3 42 4 F41 terminal 2 41 6 F41 terminal 1 40 8 F41 terminal 6 63 Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
OK : GO TO 5.
NG : GO TO 4.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors M82, F102
- Harness connectors F21, F201
- Harness connectors F41, F221
- Fuse block (J/B) connector M1
- 15A fuse
- Harness for open or short between harness connector F21 and fuse
- Harness for open or short between harness connector F41 and fuse
- Harness for open or short between harness connector F21 and ECM
- Harness for open or short between harness connector F41 and ECM
: Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK FUNCTION OF FUEL INJECTOR-II

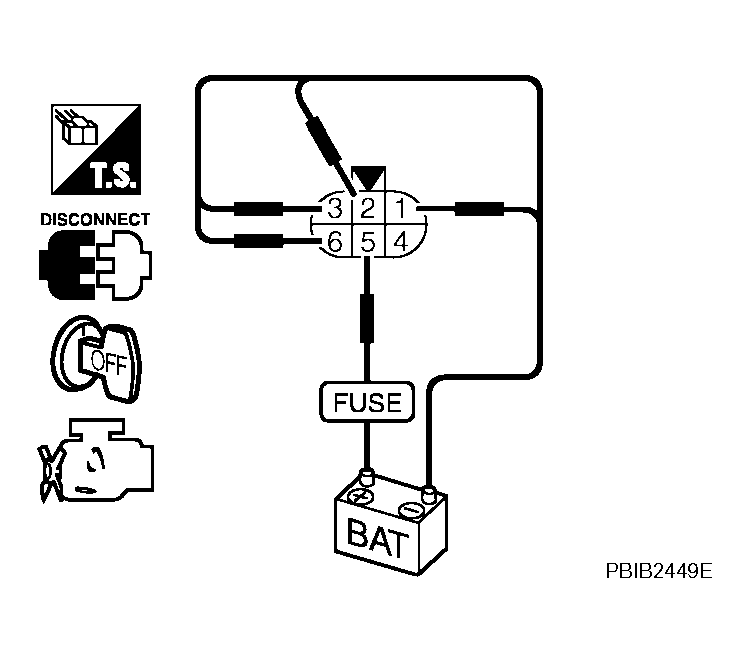

Provide battery voltage between the following terminals, and then interrupt it. Listen to each fuel injector operating sound.
HARNESS CONNECTOR TERMINAL REFERENCECylinder Harness connector terminal (+) (-) 1 F201 5 3 3 2 5 1 7 6 2 F221 5 3 4 2 6 1 8 6 Operating sound should exist.
OK or NG
OK : INSPECTION END
NG : GO TO 6.
- CHECK SUB-HARNESS CIRCUIT FOR OPEN AND SHORT
- Disconnect fuel injector harness connectors.
- Check harness continuity between the following terminals. Refer to Wiring Diagram.HARNESS CONNECTOR TERMINAL REFERENCE
Harness connector terminal Fuel injector terminal F201 terminal 1 2 F201 terminal 2 F201 terminal 3 F201 terminal 6 F201 terminal 5 1 F221 terminal 1 2 F221 terminal 2 F221 terminal 3 F221 terminal 6 F221 terminal 5 1 Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
OK : GO TO 7.
NG : Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK FUEL INJECTOR
Refer to "COMPONENT INSPECTION ".
OK or NG
OK : GO TO 8.
NG : Replace fuel injector.
- CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
: INSPECTION END
