Diagnostic Procedure

  1. CHECK OVERALL FUNCTION-I

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-II.
    3. Check "BRAKE SW1" indication under the following conditions.
      INDICATION CONDITIONS

      CONDITION INDICATION
      Brake pedal: Slightly depressed OFF
      Brake pedal: Fully released ON
      Fig 1: Consult-II DATA MONITOR Display Screen
      G04075136Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.
      VOLTAGE CONDITIONS

      CONDITION VOLTAGE
      Brake pedal: Slightly depressed Approximately 0V
      Brake pedal: Fully released Battery voltage

    OK or NG

    OK : GO TO 2.

    NG : GO TO  3.

    Fig 2: Identifying Voltage Between Ground And ECM Terminal 108
    G04075137Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK OVERALL FUNCTION-II

    With CONSULT-II

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    INDICATION CONDITIONS

    CONDITION INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON
    Fig 3: Consult-II DATA MONITOR Display Screen
    G04075138Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between ECM terminal 101 and ground under the following conditions.

    VOLTAGE CONDITIONS

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage

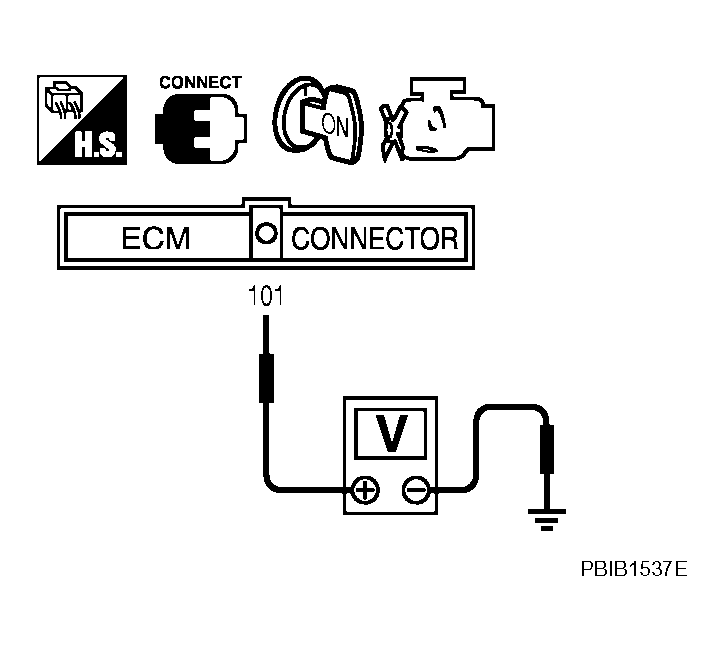

    Fig 4: Identifying Voltage Between ECM Terminal 101 And Ground
    G04075289Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : INSPECTION END

    NG : GO TO  12.

  3. CHECK DTC WITH ICC UNIT

    Refer to "TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ".

    OK or NG

    OK : GO TO 4.

    NG : Repair or replace.

  4. CHECK ICC BRAKE SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ICC brake hold relay.
    3. Turn ignition switch ON.

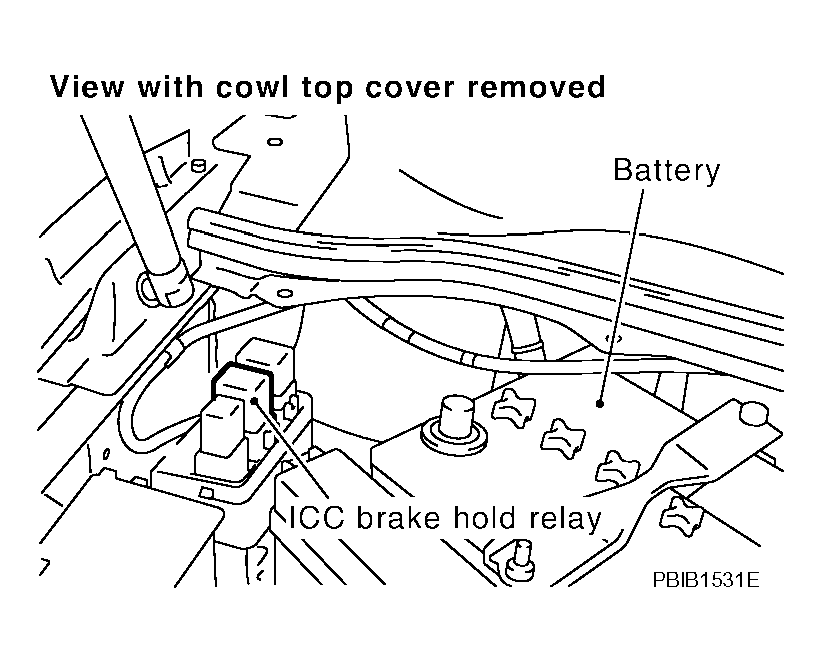

      Fig 5: Identifying ICC Brake Hold Relay
      G04075290Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ICC brake hold relay terminal 3 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK : GO TO  9.

    NG : GO TO 5.

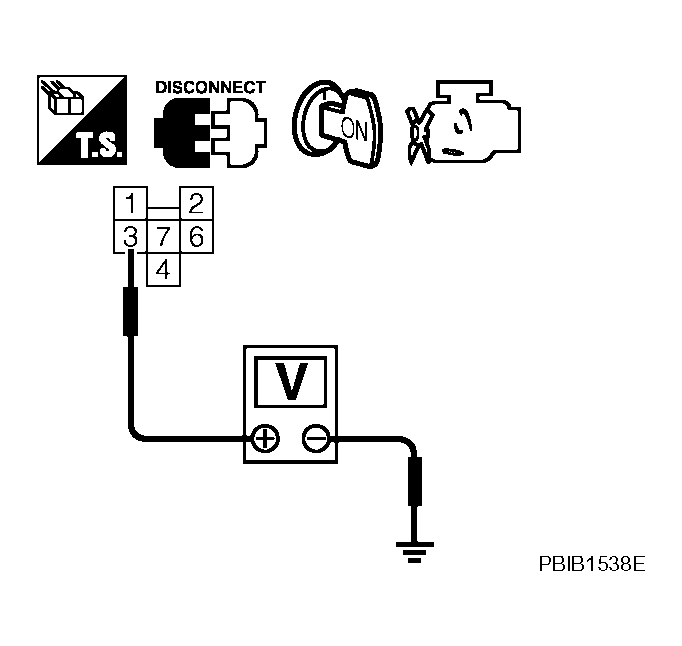

    Fig 6: Identifying Voltage Between ICC Brake Hold Relay Terminal 3 And Ground With CONSULT-II Or Tester
    G04075291Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ICC brake switch harness connector.
    3. Turn ignition switch ON.
      Fig 7: Identifying ICC Brake Switch
      G04075292Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ICC brake switch terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK : GO TO  7.

    NG : GO TO 6.

    Fig 8: Identifying Voltage Between Connector Terminal 1 and Ground
    G04075143Courtesy of NISSAN MOTOR CO., U.S.A.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector M201
    • 10A fuse
    • Harness for open or short between ICC brake switch and fuse

      : Repair open circuit or short to ground or short to power in harness or connectors.

  7. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
    1. Turn ignition switch OFF.
    2. Check harness continuity between ICC brake hold relay terminal 3 and ICC brake switch terminal 2.

      Refer to Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK : GO TO 8.

    NG : Repair open circuit or short to ground or short to power in harness or connectors.

  8. CHECK ICC BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK : GO TO  17.

    NG : Replace ICC brake switch.

  9. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ICC brake hold relay terminal 4 and ECM terminal 108.

      Refer Wiring Diagram.

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK : GO TO  11.

    NG : GO TO 10.

  10. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E211, M41
    • Harness for open or short between ICC brake hold relay and ECM

      : Repair open circuit or short to ground or short to power in harness or connectors.

  11. CHECK ICC BRAKE HOLD RELAY

    Refer to "COMPONENT INSPECTION ".

    OK : GO TO  17.

    NG : Replace ICC brake fold relay.

  12. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.

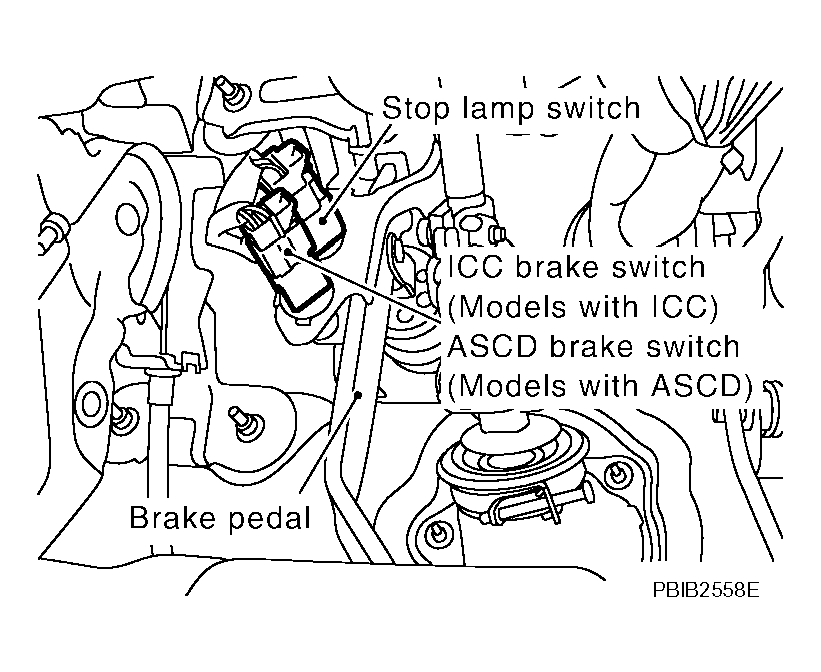

      Fig 9: Identifying Stop Lamp Switch
      G04075294Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT -II or tester.

      Voltage: Battery voltage

    OK or NG

    OK : GO TO  14.

    NG : GO TO 13.

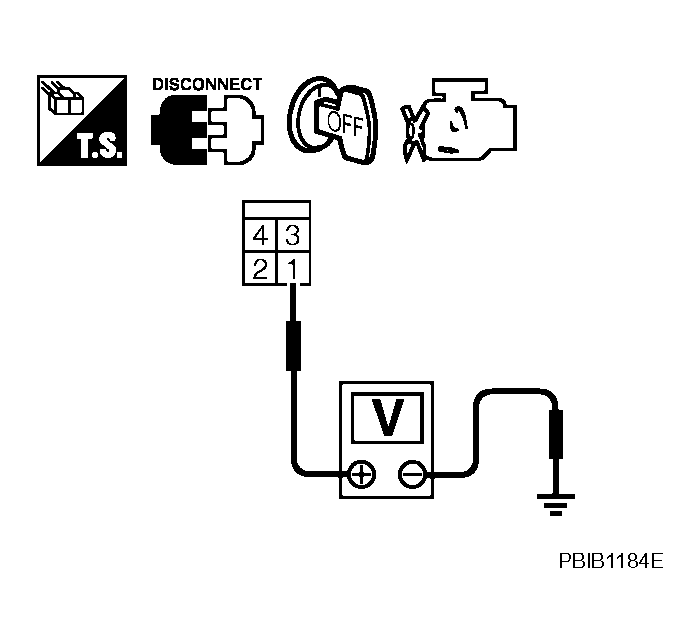

    Fig 10: Identifying Voltage Between Stop Lamp Switch Terminal 1 And Ground With CONSULT-II Or Tester
    G04075295Courtesy of NISSAN MOTOR CO., U.S.A.
  13. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E201
    • 10A fuse
    • Harness for open or short between stop lamp switch and battery

      : Repair open circuit or short to ground or short to power in harness or connectors.

  14. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.

      Refer to Wiring Diagram.

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK : GO TO  16.

    NG : GO TO 15.

  15. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E211, M41
    • Harness for open or short between ECM and stop lamp switch

      : Repair open circuit or short to ground or short to power in harness or connectors.

  16. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    OK : GO TO 17.

    NG : Replace stop lamp switch.

  17. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    : INSPECTION END
