Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the port A of vacuum tank.
  3. Apply vacuum and make sure that vacuum exists at the port B.

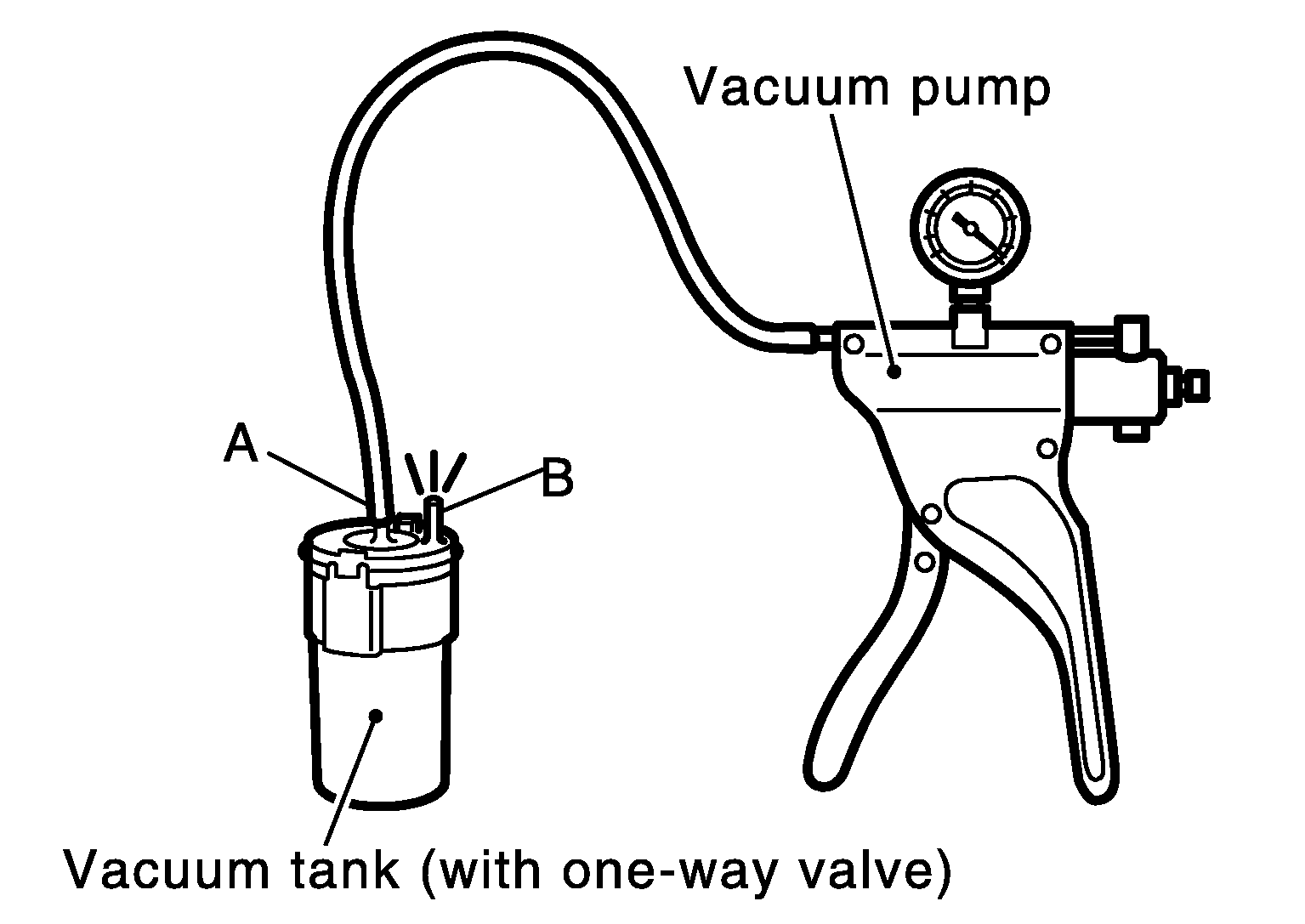

    Fig 1: Identifying Vacuum Pump To Port A Of Vacuum Tank
    G04075347Courtesy of NISSAN MOTOR CO., U.S.A.
