Intake Valve Timing Control Position Sensor

  1. Disconnect intake valve timing control position sensor harness connector.
  2. Loosen the fixing bolt of the sensor.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

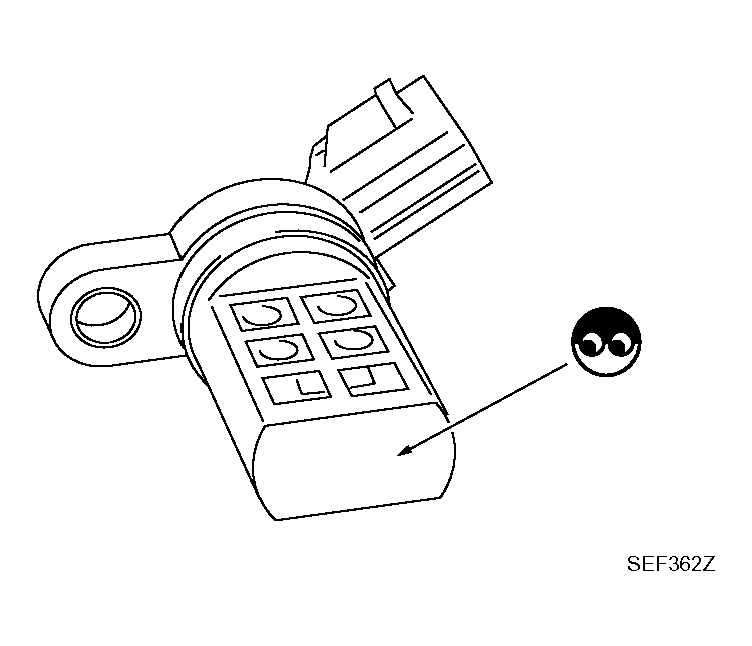

    Fig 1: Inspecting Intake Valve Timing Control Position Sensor
    G04075091Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown below.
    TERMINALS RESISTANCE

    Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
    3 (+) - 1 (-) Except 0 or [Infinity]
    2 (+) - 1 (-)
    3 (+) - 2 (-)
  6. If NG, replace intake valve timing control position sensor.
    Fig 2: Identifying Intake Valve Timing Control Position Sensor Resistance
    G04075092Courtesy of NISSAN MOTOR CO., U.S.A.
