Hydraulic Line: Component

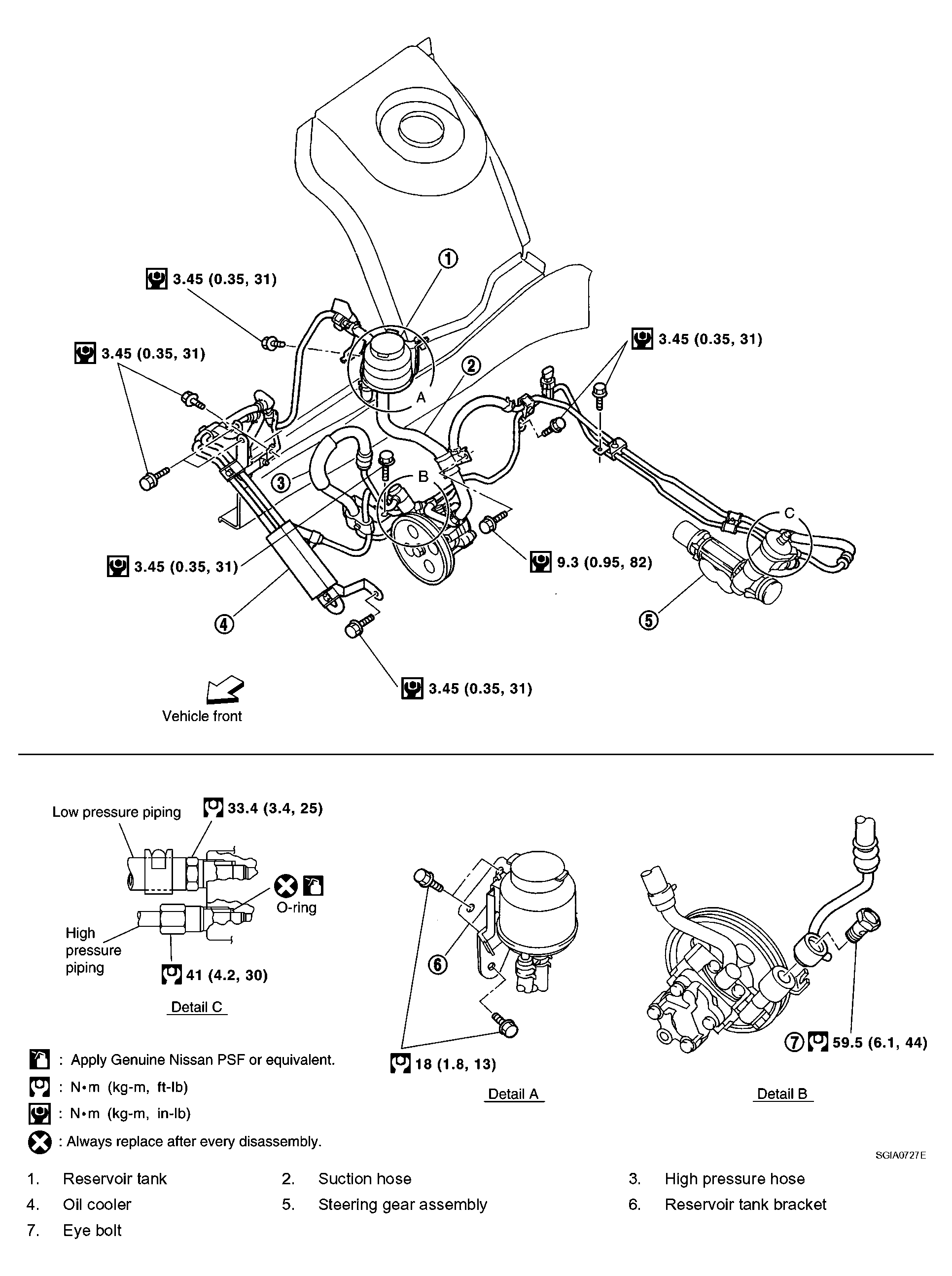

Fig 1: Hydraulic Line Replacement Components With Torque Specifications (VK45DE AWD Models)
G04076809Courtesy of NISSAN MOTOR CO., U.S.A.
