Removal and Installation: Components

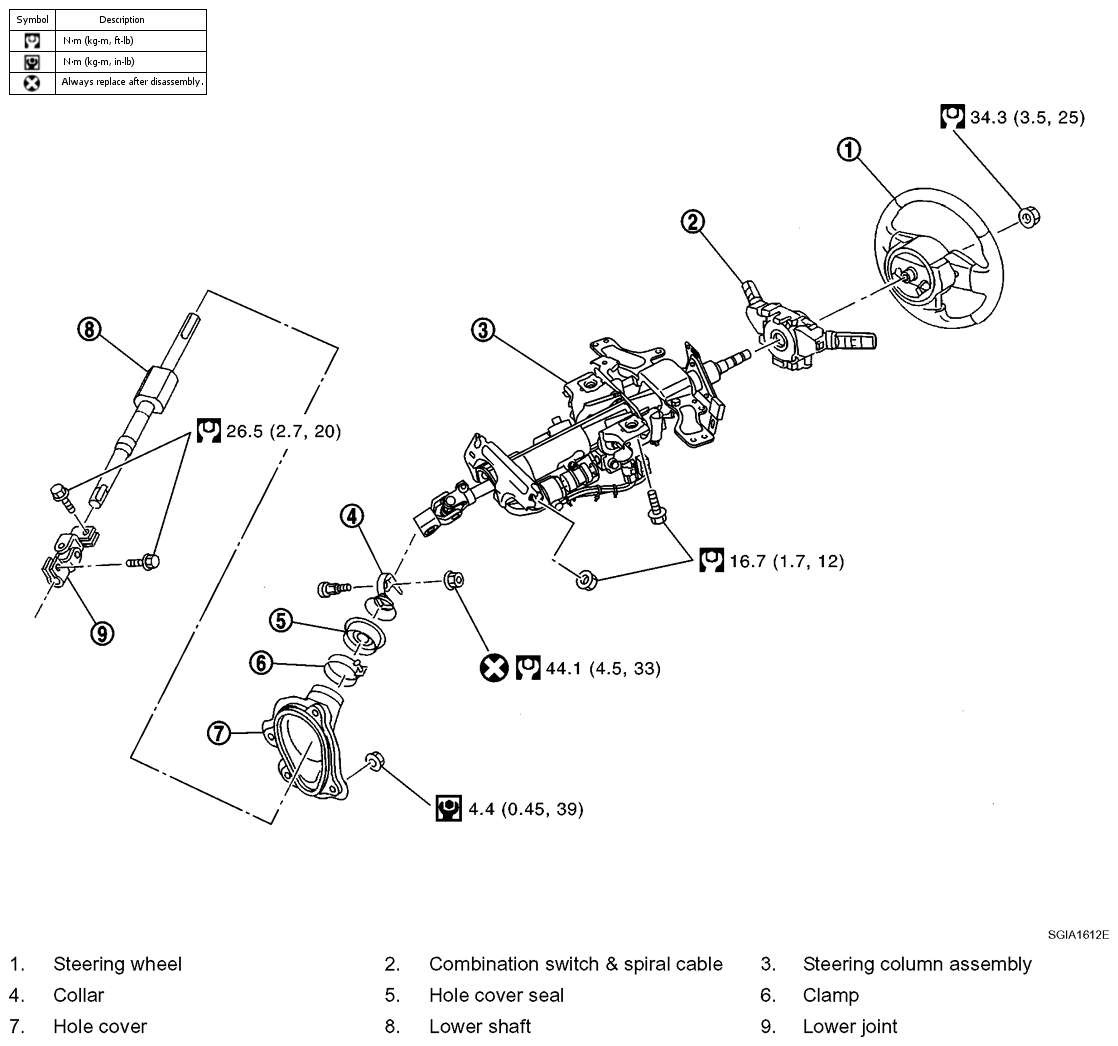

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS ", for the symbols in the figure.

CAUTION:

Care must be taken not to give axial impact to steering column assembly during removal and installation.
Care must be taken not to move steering gear during removal of steering column assembly.
