During Shift Change

The necessary and adequate line pressure for shift change is set. For this reason, line pressure pattern setting corresponds to input torque and gearshift selection. Also, line pressure characteristic is set according to engine speed, during engine brake operation.

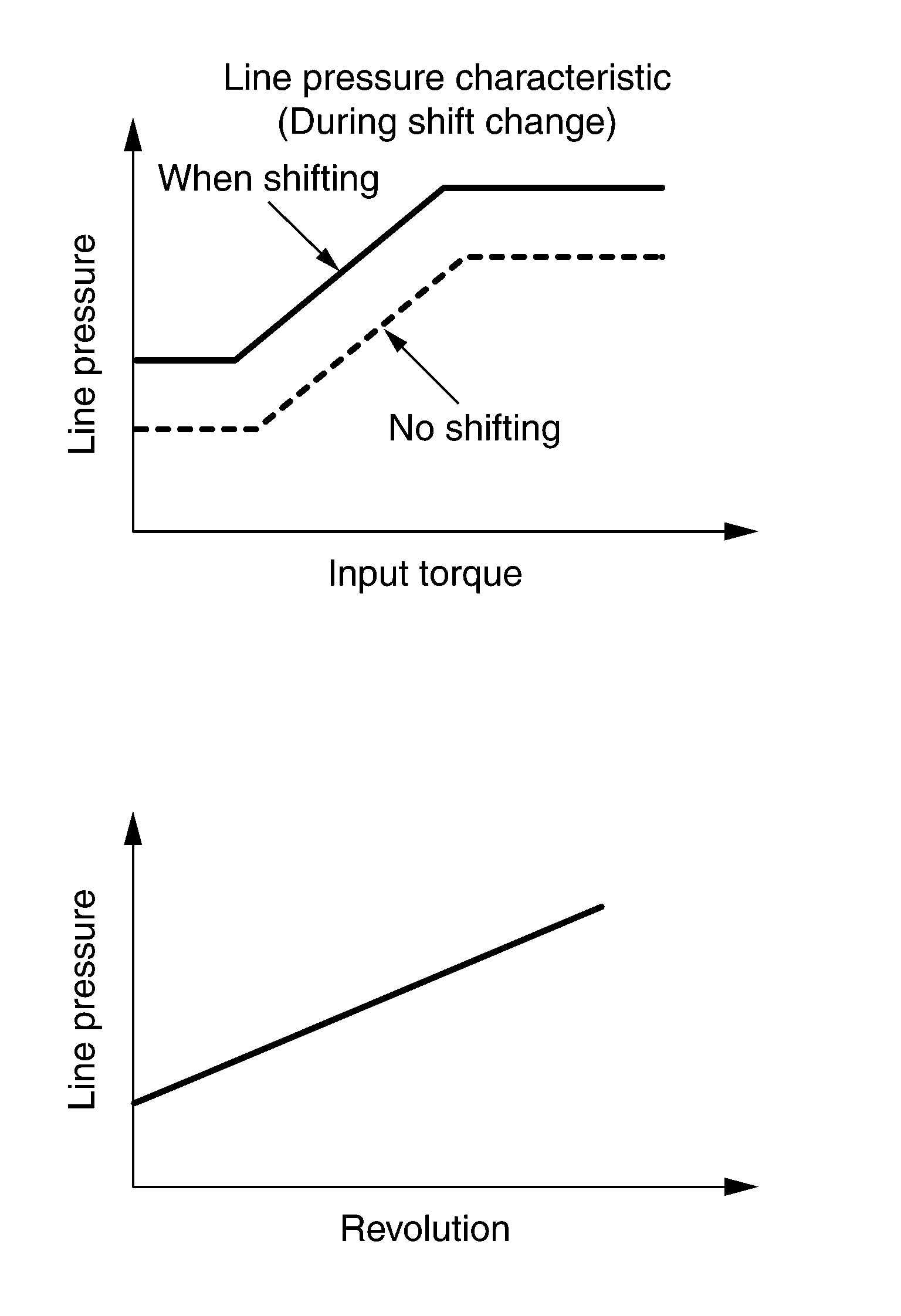

Fig 1: Line Pressure Characteristic Graph - During Shift Change
G04075420Courtesy of NISSAN MOTOR CO., U.S.A.
