Diagnostic Procedure

SYMPTOM 1:

• Selector lever cannot be moved from "P" position with key in ON position and brake pedal applied.
• Selector lever can be moved from "P" position with key in ON position and brake pedal released.
• Selector lever can be moved from "P" position when key is removed from key cylinder.

  SYMPTOM 2:

  • Ignition key cannot be removed when selector lever is set to "P" position.
  • Ignition key can be removed when selector lever is set to any position except "P" position.

1. CHECK KEY INTERLOCK CABLE

   Check the key interlock cable for damage.

   OK or NG

   OK : GO TO 2.

   NG : Repair or replace key interlock cable. Refer to "KEY INTERLOCK CABLE ".

2. CHECK SELECTOR LEVER POSITION

   Check the selector lever position for damage. Refer to "CHECKING OF A/T POSITION "

   OK or NG

   OK : GO TO 3.

   NG : Adjust A/T position. Refer to "ADJUSTMENT OF A/T POSITION ".

3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
   1. Connect A/T device harness connector.
   2. Turn ignition switch ON. (Do not start engine.)
   3. Selector lever is set in "P" position.
   4. Check operation.
      BRAKE PEDAL OPERATION CHART



      Condition	Brake pedal	Operation
      When ignition switch is turned to ON and selector lever is set in "P" position.	Depressed	Yes
      	Released	No

   OK or NG

   OK : INSPECTION END

   NG : GO TO 4.

4. CHECK POWER SOURCE
   1. Turn ignition switch ON. (Do not start engine.)
   2. Check the voltage between A/T device harness connector M67 terminal 1 and ground. Refer to "WIRING DIAGRAM - AT - SHIFT ".
      TERMINALS VOLTAGE CHART



      Condition	Brake pedal	Data (Approx.)
      When ignition switch is turned to ON.	Depressed	Battery voltage
      	Released	0 V

   OK or NG

   OK : GO TO  7.

   NG : GO TO 5.

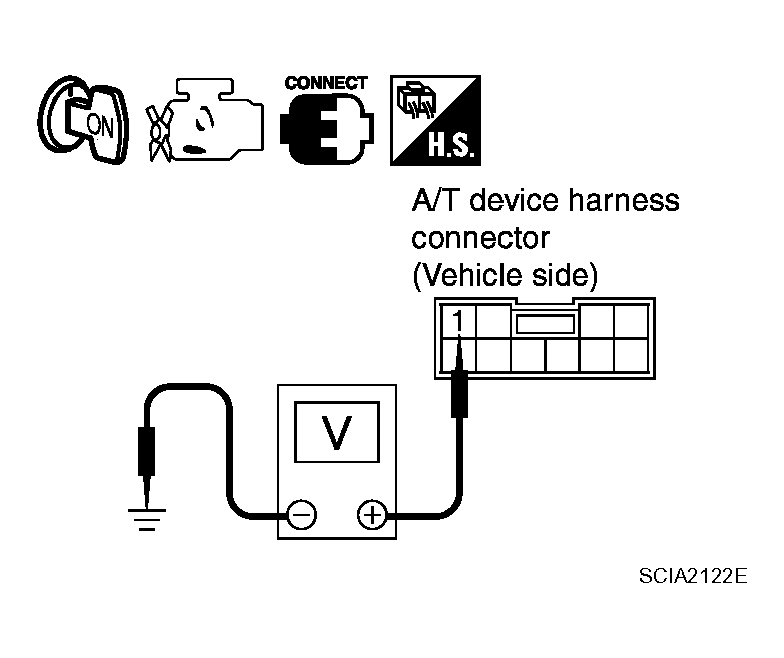

   Fig 1: Identifying Voltage Between A/T Device Harness Connector M67 Terminal 1 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. CHECK STOP LAMP SWITCH
   1. Turn ignition switch OFF.
   2. Disconnect stop lamp switch harness connector.
   3. Check continuity between stop lamp switch harness connector E210 terminals 3 and 4.
      TERMINALS CONTINUITY CHART



      Condition	Continuity
      When brake pedal is depressed	Yes
      When brake pedal is released	No

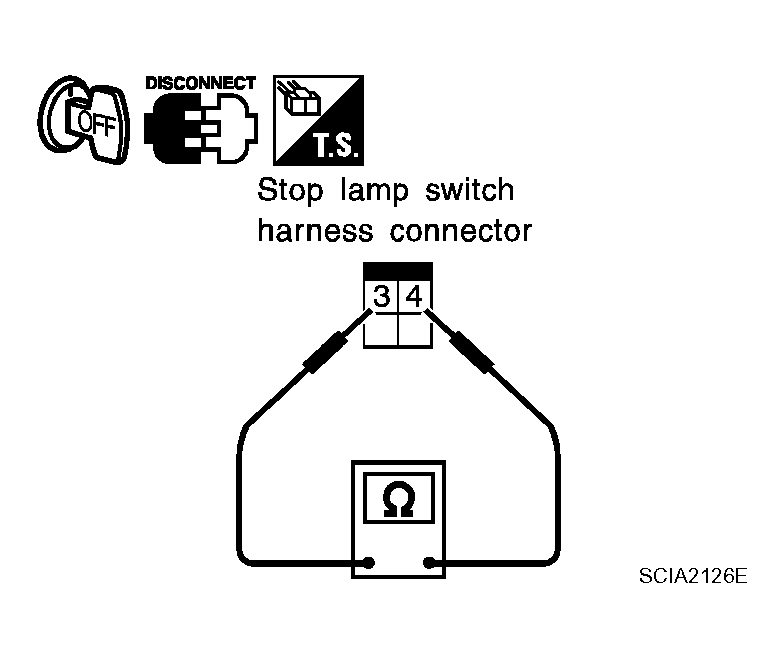

      Fig 2: Identifying Continuity Between Stop Lamp Switch Harness Connector E210 Terminals 3 And 4

      Courtesy of NISSAN MOTOR CO., U.S.A.

      Check stop lamp switch after adjusting brake pedal - refer to " BRAKE PEDAL  "  .

   OK or NG

   OK : GO TO 6.

   NG : Repair or replace damaged parts.

6. DETECT MALFUNCTIONING ITEM

   Check the following items. If any items are damaged, repair or replace damaged parts.

   • Harness for short or open between ignition switch and stop lamp switch harness connector E210 terminal 3.
   • Harness for short or open between stop lamp switch harness connector E210 terminal 4 and A/T device harness connector M67 terminal 1.
   • 10 A fuse [No.12, located in the fuse block (J/B)].
   • Ignition switch, Refer to "POWER SUPPLY ROUTING CIRCUIT ".

   OK or NG

   OK : INSPECTION END

   NG : Repair or replace damaged parts.

7. CHECK GROUND CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect A/T device harness connector.
   3. Check continuity between A/T device harness connector M67 terminal 2 and ground.

      Continuity should exist.

   OK or NG

   OK : Replace shift lock solenoid and park position switch assembly.

   NG : Repair open circuit in harness or connectors.

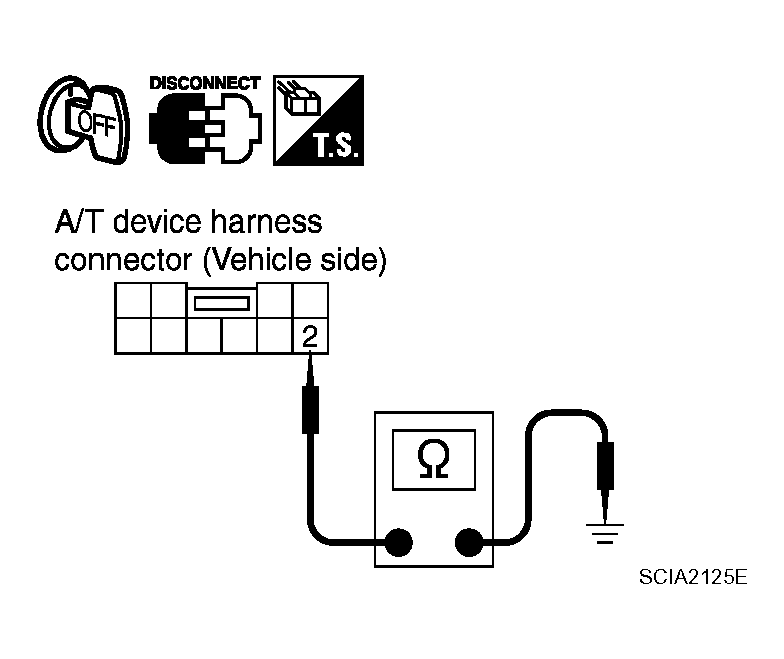

   Fig 3: Identifying Continuity Between A/T Device Harness Connector M67 Terminal 2 And Ground
