Automatic Transmission: Overhaul: Components

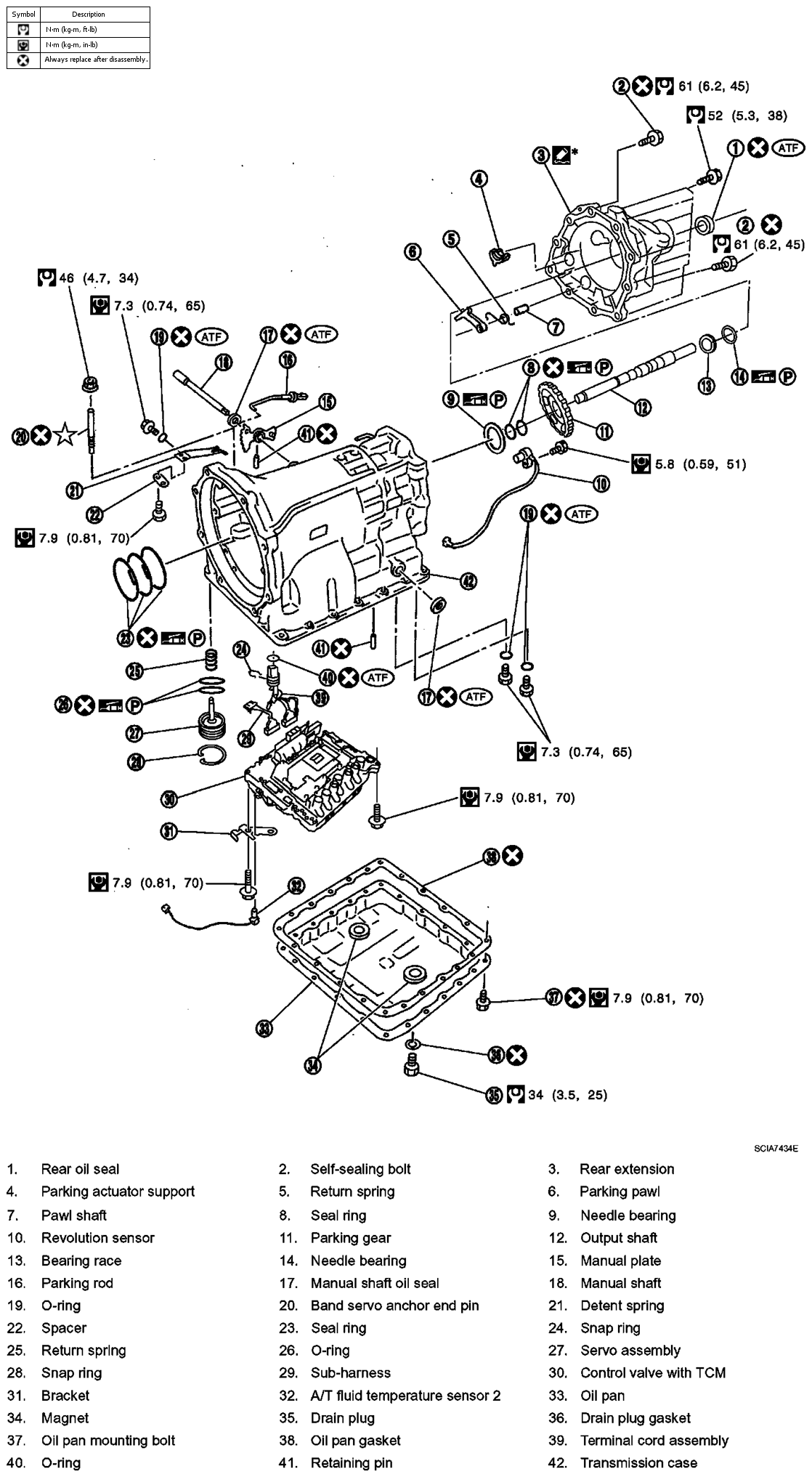

Fig 1: Overhaul Replacement Components With Torque Specifications -- VQ35DE Model

Courtesy of NISSAN MOTOR CO., U.S.A.

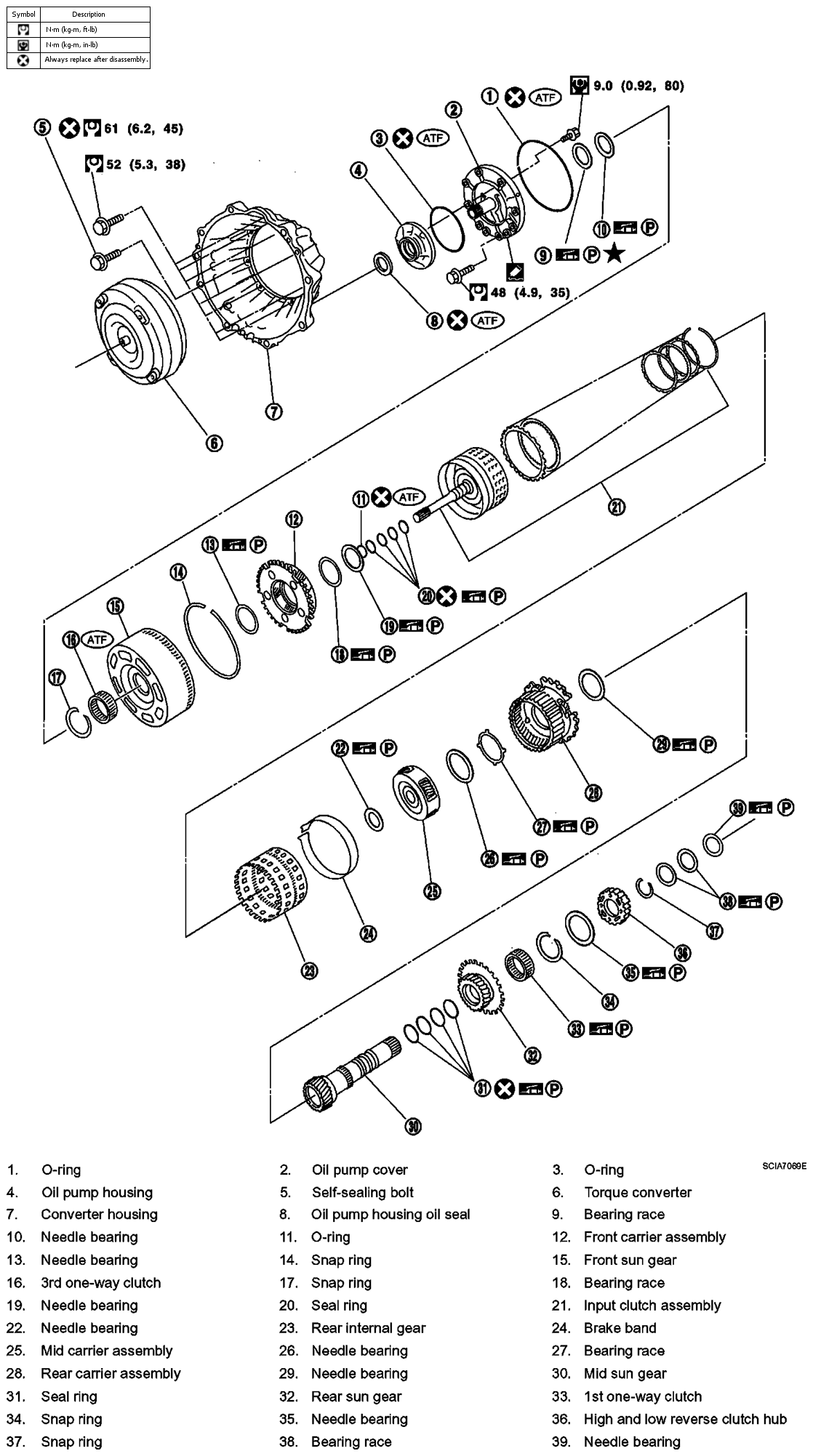

Fig 2: Overhaul Replacement Components With Torque Specifications -- VK45DE Model

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

However, refer to the following symbols for others.

: Apply Genuine RTV silicone sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

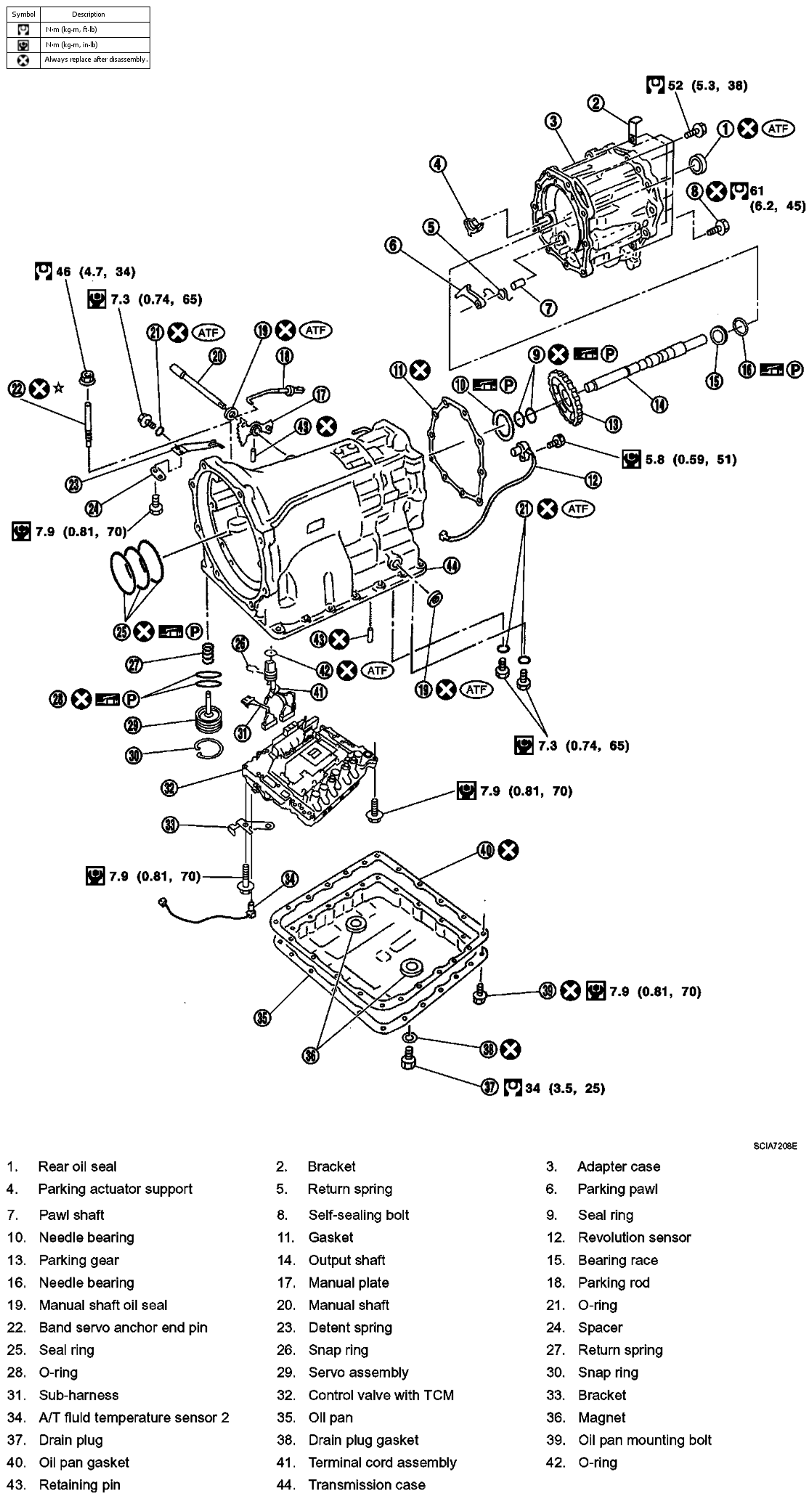

Fig 3: Overhaul Replacement Components With Torque Specifications -- VQ35DE Model

Courtesy of NISSAN MOTOR CO., U.S.A.

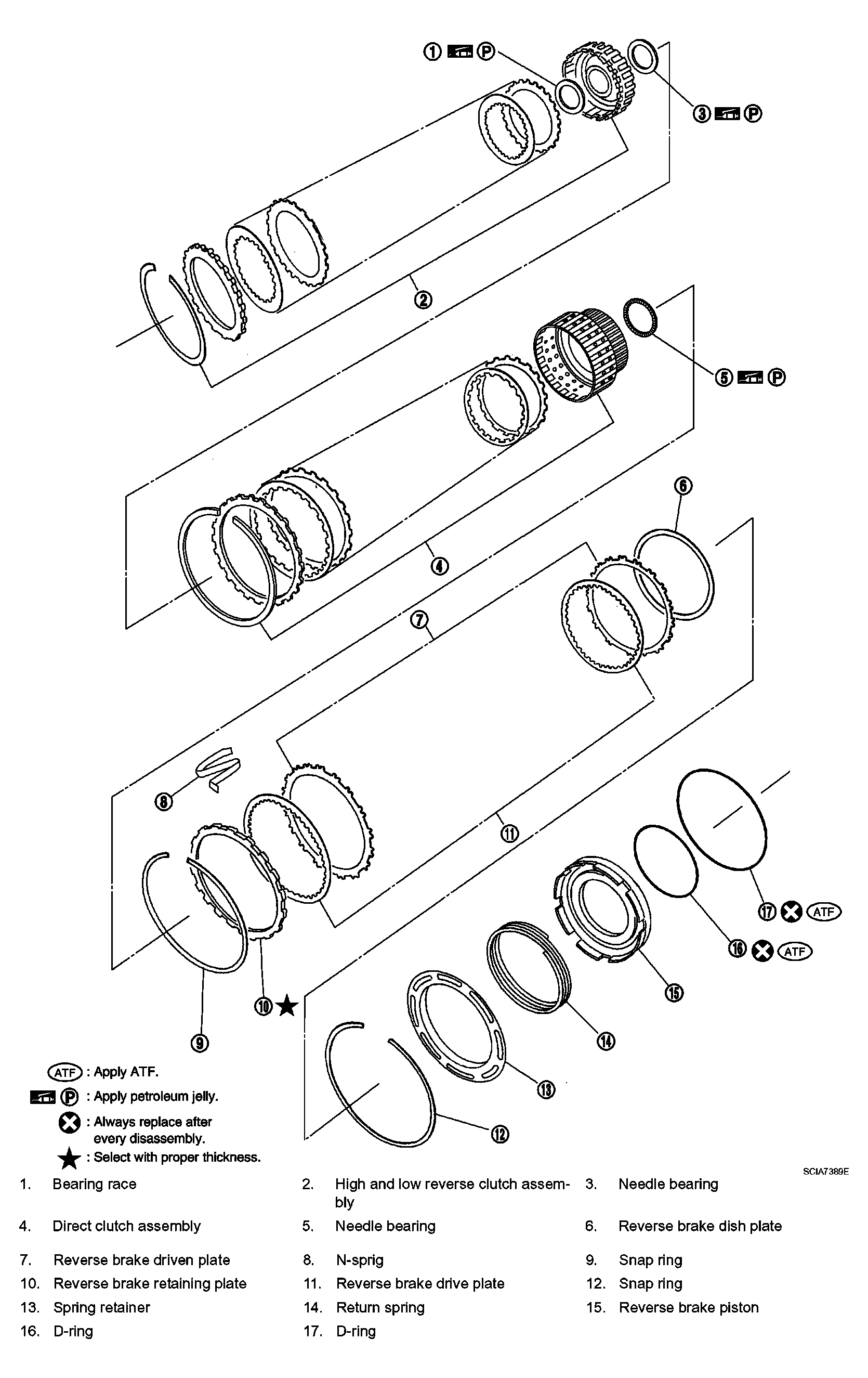

Fig 4: Identifying Overhaul Components - VK45DE Model

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

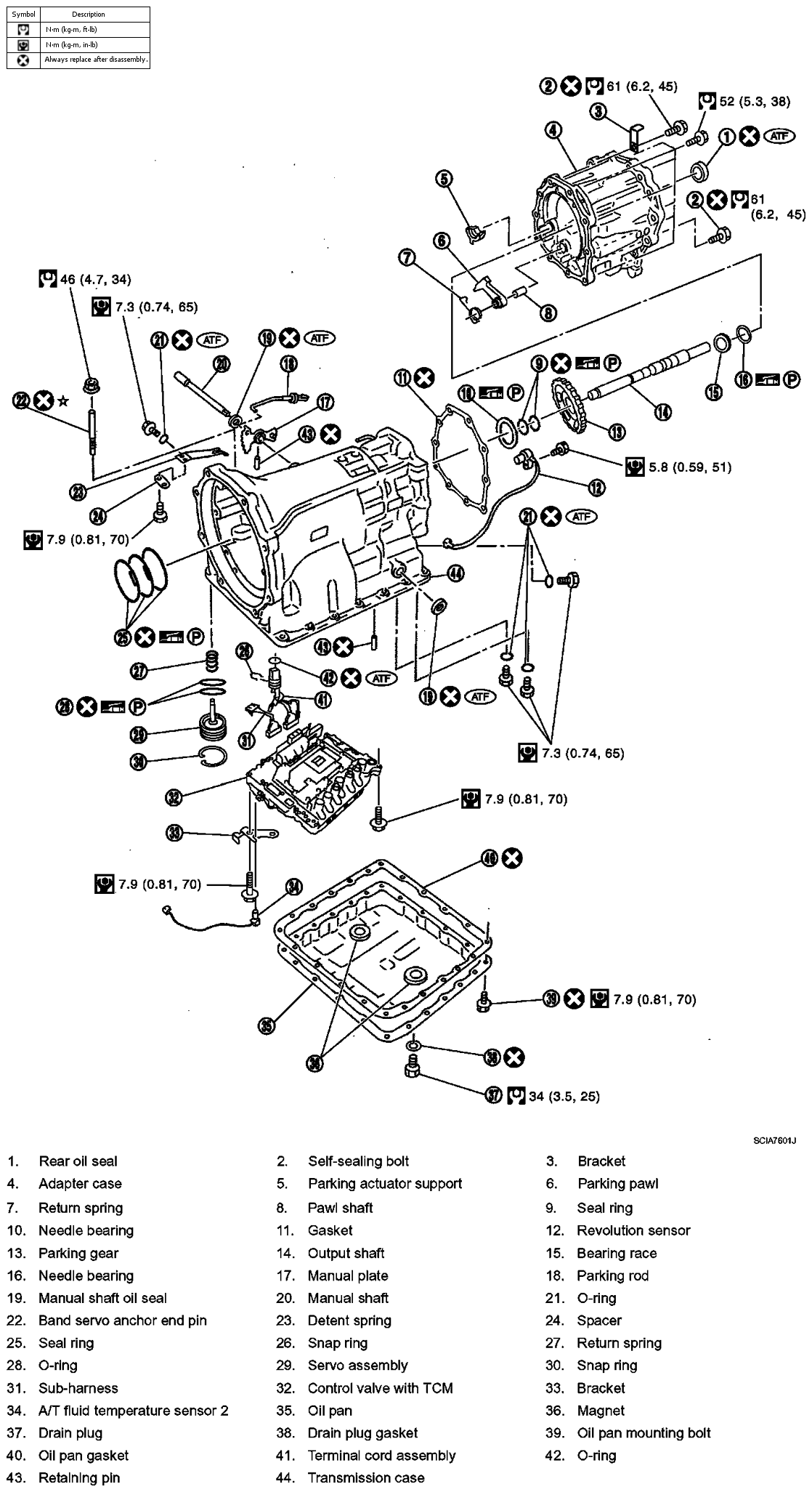

Fig 5: Overhaul Replacement Components With Torque Specifications -- 2WD Model

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

However, refer to the following symbol for others.

* : Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

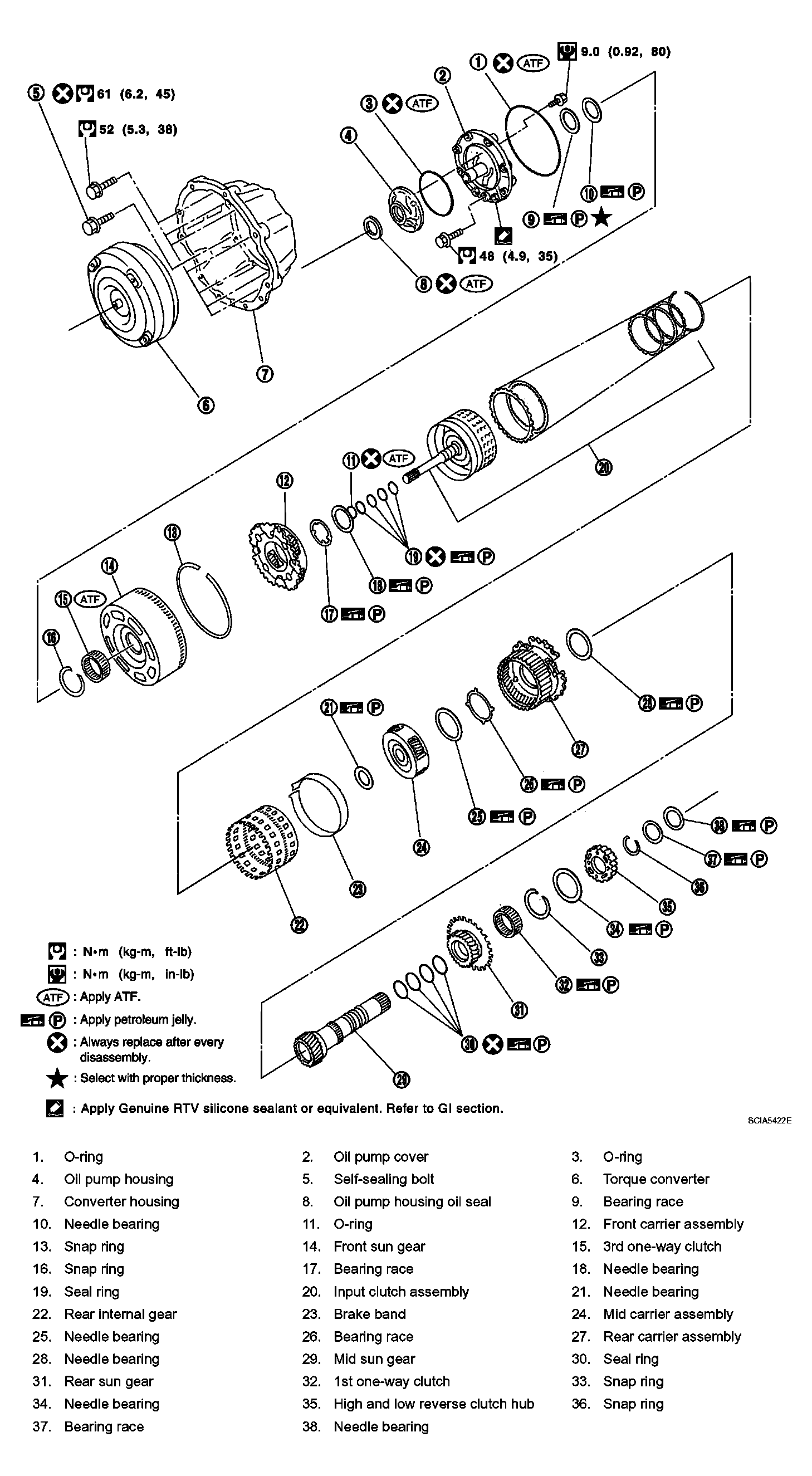

Fig 6: Overhaul Replacement Components With Torque Specifications -- VQ35DE Model AWD

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

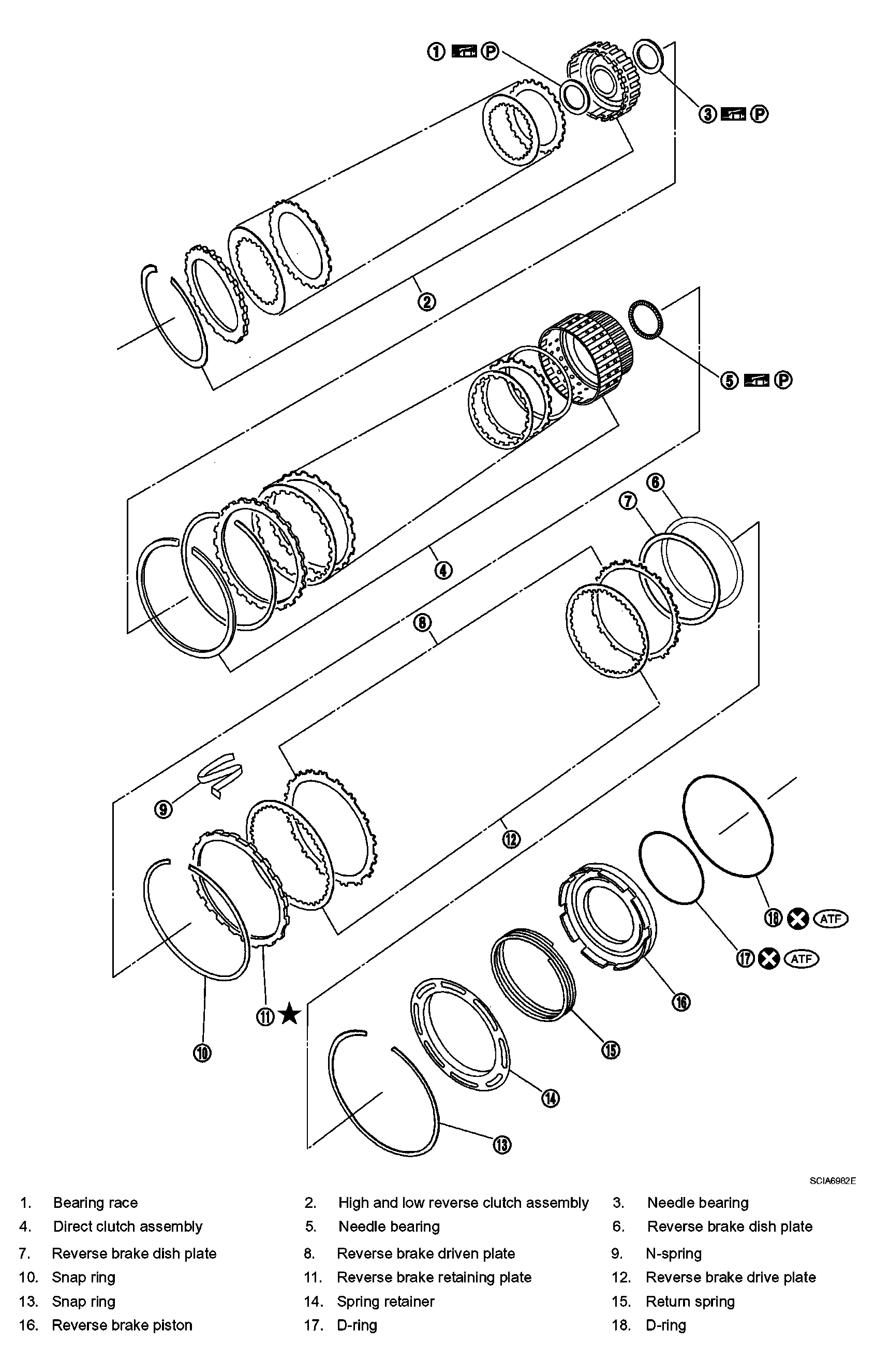

Fig 7: Overhaul Replacement Components With Torque Specifications -- VK45DE Model 4AWD

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".
