Control Device Removal and Installation: Removal
- Disconnect lower lever of control device and control rod.

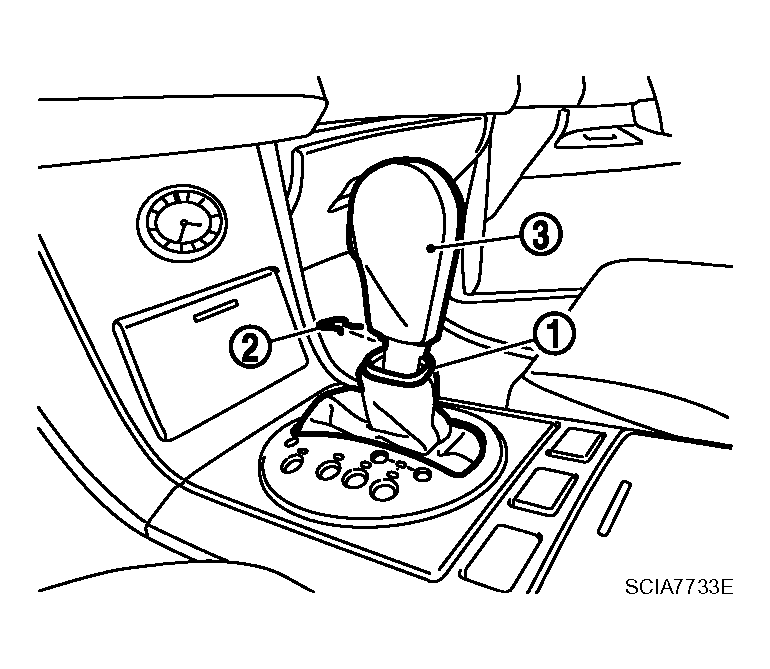

- Remove knob cover (1) below selector lever downward.
- Pull lock pin (2) out of selector lever knob (3).
- Remove selector lever knob (3).
- Remove A/T console finisher. Refer to
"COMPONENT PARTS DRAWING
".
- Remove center console. Refer to
"COMPONENT PARTS DRAWING
".
- Remove rear ventilator duct 2. Refer to
"REMOVAL AND INSTALLATION
".
Courtesy of NISSAN MOTOR CO., U.S.A.

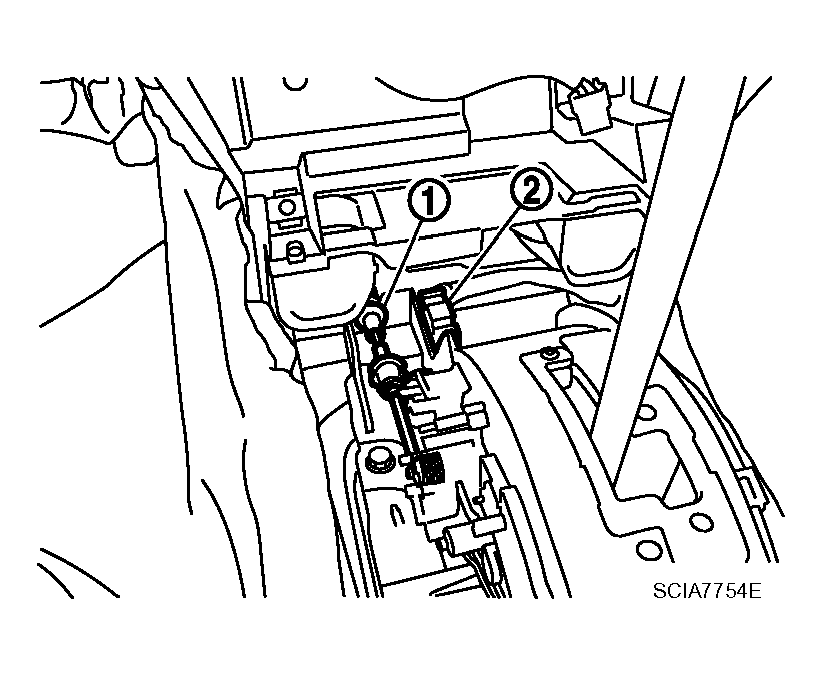

- Remove key interlock cable (1) from control device. Refer to
"REMOVAL AND INSTALLATION ".
- Disconnect A/T device harness connector (2).
- Remove control device assembly.
Courtesy of NISSAN MOTOR CO., U.S.A.
