Control Rod Removal and Installation: Removal

  1. Disconnect lower lever of control device and control rod.
  2. Remove manual lever from A/T assembly.
  3. Remove control rod from vehicle.

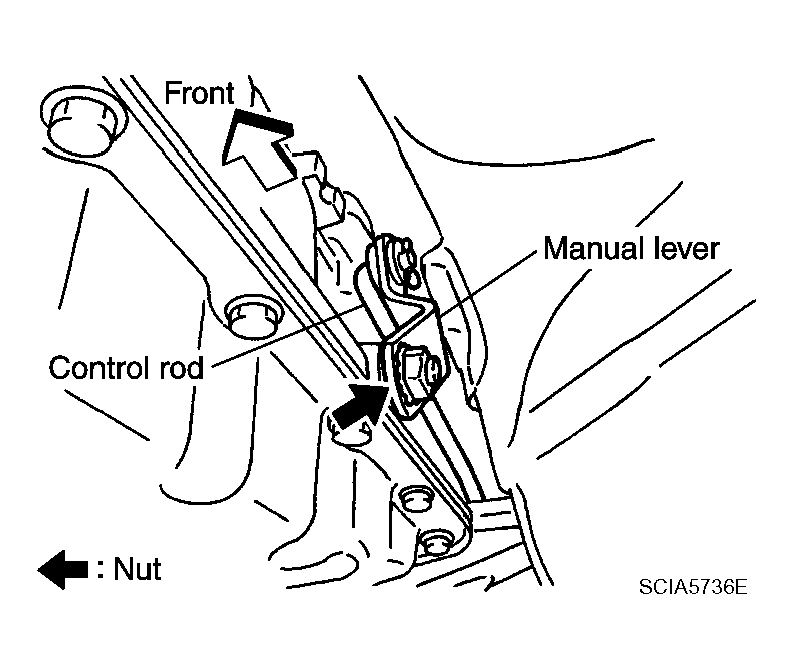

    Fig 1: Identifying Control Rod From Vehicle
    G04075626Courtesy of NISSAN MOTOR CO., U.S.A.
