Removal and Installation: Removal

  1. Remove the dash side finisher. Refer to "DASH SIDE FINISHER ".
  2. Disconnect AWD control unit connector.
  3. Remove the AWD control unit.

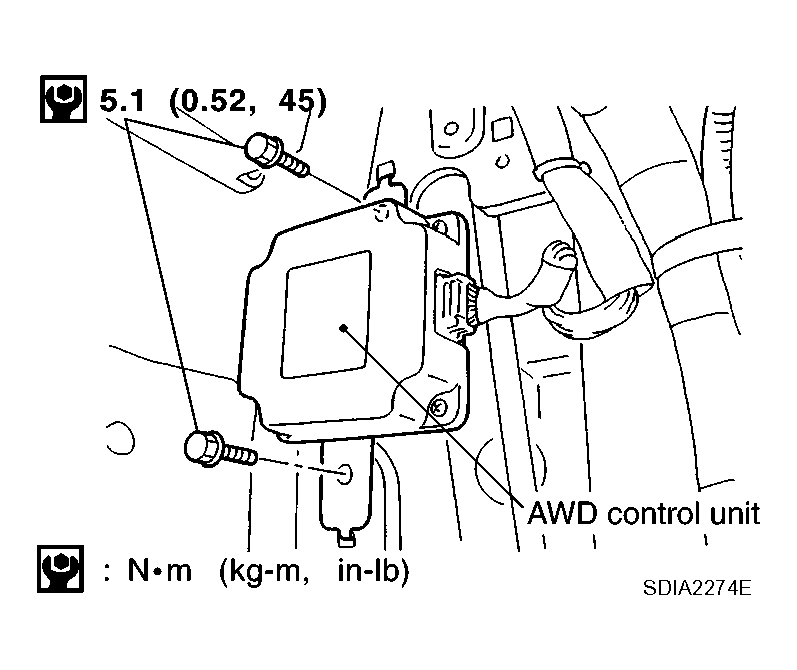

    Fig 1: AWD Control Unit With Torque Specifications
    G04076064Courtesy of NISSAN MOTOR CO., U.S.A.
