Control Device Components (AWD Models)

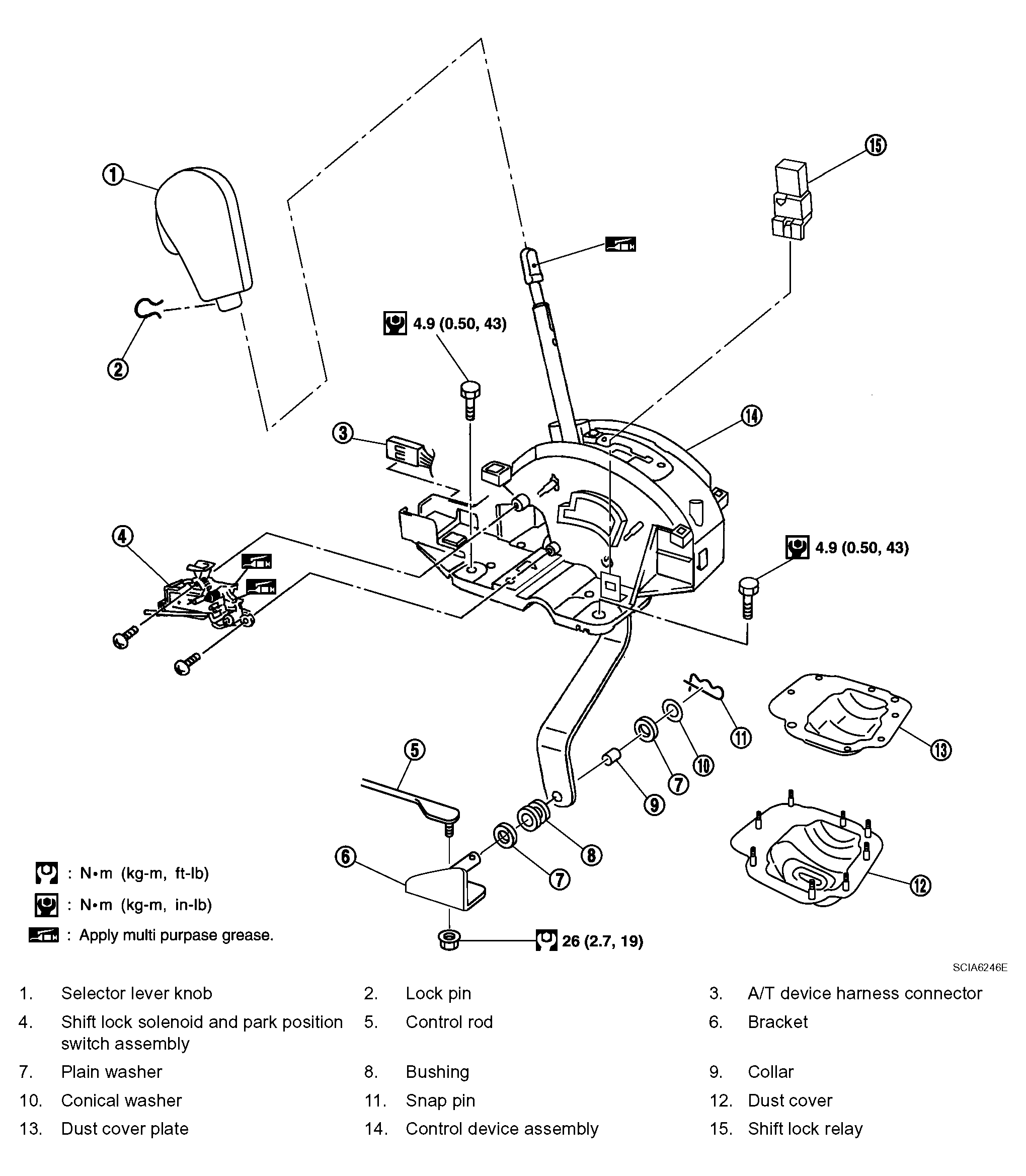

Fig 1: Shift Control System Replacement Components With Torque Specifications (AWD Models)
G04120791Courtesy of NISSAN MOTOR CO., U.S.A.
