Diagnostic Procedure

  1. CHECK EXHAUST GAS LEAK
    1. Start engine and run it at idle.
    2. Listen for an exhaust gas leak before three way catalyst 1.

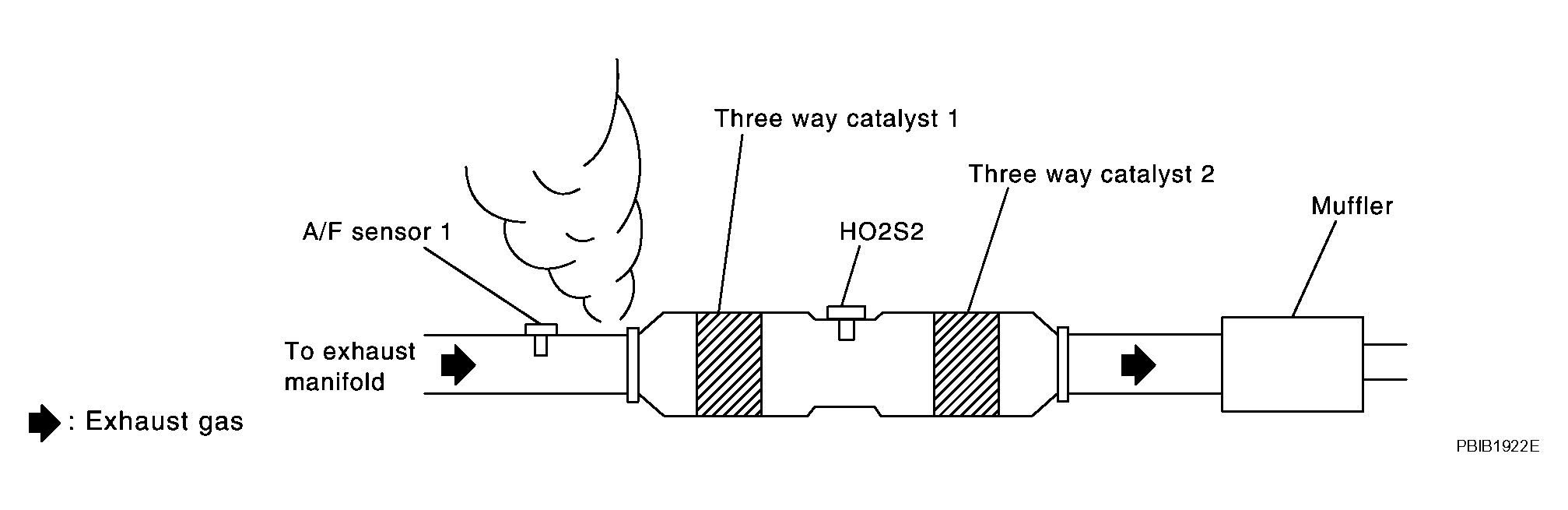

    Fig 1: Identifying Exhaust Gas Leak Before Three Way Catalyst 1
    G04119877Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace.
  2. CHECK FOR INTAKE AIR LEAK
    1. Listen for an intake air leak after the mass air flow sensor.
    2. Check PCV hose connection.

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace.
  3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect corresponding A/F sensor 1 harness connector.

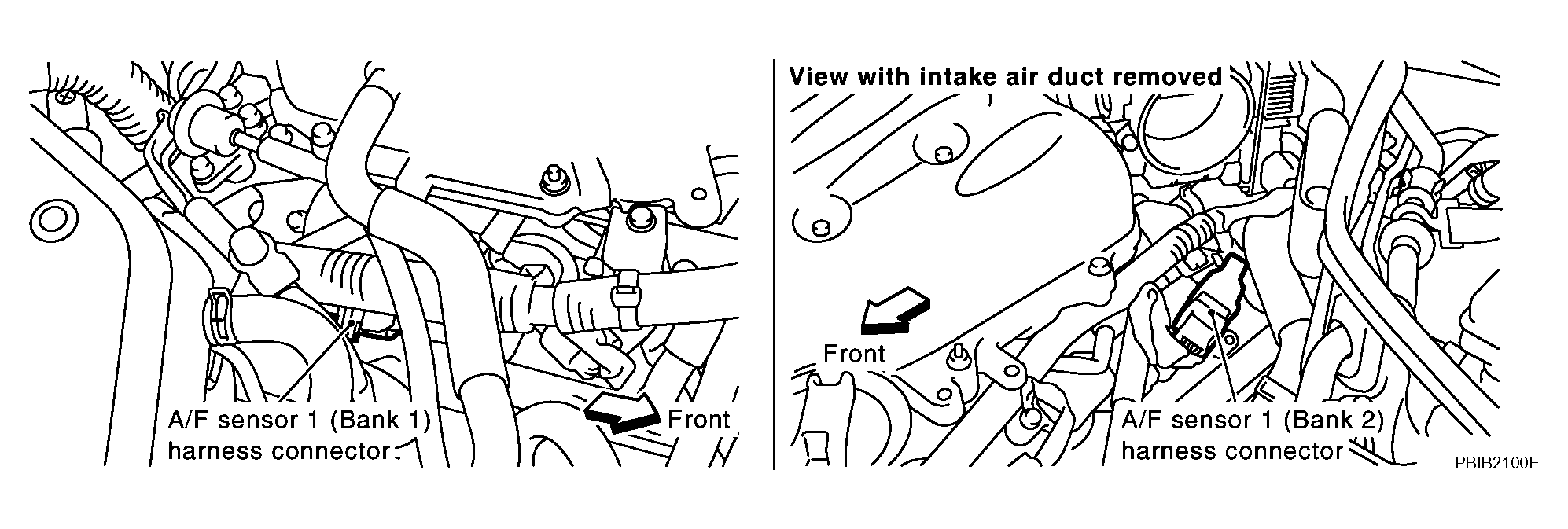

      Fig 2: Identifying Corresponding A/F Sensor 1 Harness Connector
      G04119878Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Disconnect ECM harness connector.
    4. Check harness continuity between the following terminals.

      Refer to WIRING DIAGRAM .

      TERMINALS CONTINUITY REFERENCE

        A/F sensor 1 terminal ECM terminal
      Bank 1 1 16
      2 75
      5 35
      6 56
      Bank 2 1 76
      2 77
      5 57
      6 58

      Continuity should exist.

    5. Check harness continuity between the following terminals and ground.

      Refer to WIRING DIAGRAM .

      TERMINALS CONTINUITY REFERENCE

      Bank 1 Bank 2
      A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
      1 16 1 76
      2 75 2 77
      5 35 5 57
      6 56 6 58

      Continuity should not exist.

    6. Also check harness for short to power.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK FUEL PRESSURE
    1. Release fuel pressure to zero. Refer to "FUEL PRESSURE RELEASE ".
    2. Install fuel pressure gauge and check fuel pressure. Refer to "FUEL PRESSURE CHECK ".

      At idling: Approximately 350 kPa (3.57 kg/cm2, 51 psi)

    OK or NG

    1. OK: GO TO  6.
    2. NG: GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

  6. CHECK MASS AIR FLOW SENSOR

    With CONSULT-II

    1. Install all removed parts.
    2. Check "MASS AIR FLOW" in "DATA MONITOR" mode with CONSULT-II.

      2.0 - 6.0 g.m/sec: at idling

      7.0 - 20.0 g.m/sec: at 2, 500 RPM

    With GST

    1. Install all removed parts.
    2. Check mass air flow sensor signal in Service $01 with GST.

      2.0 - 6.0 g.m/sec: at idling

      7.0 - 20.0 g.m/sec: at 2, 500 RPM

    OK or NG

    1. OK (With CONSULT-II): GO TO 7.
    2. OK (Without CONSULT-II): GO TO  8.
    3. NG: Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or ground. Refer to "DTC P0101 MAF SENSOR ".
  7. CHECK FUNCTION OF FUEL INJECTOR

    With CONSULT-II

    1. Start engine.
    2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
    3. Make sure that each circuit produces a momentary engine speed drop.
      Fig 3: Consult-II ACTIVE TEST Display Screen
      G04080452Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  10.
    2. NG: Perform trouble diagnosis for FUEL INJECTOR, refer to "FUEL INJECTOR ".
  8. CHECK FUNCTION OF FUEL INJECTOR-I

    Without CONSULT-II

    1. Stop engine.
    2. Disconnect harness connectors F33, F221
    3. Turn ignition switch ON.

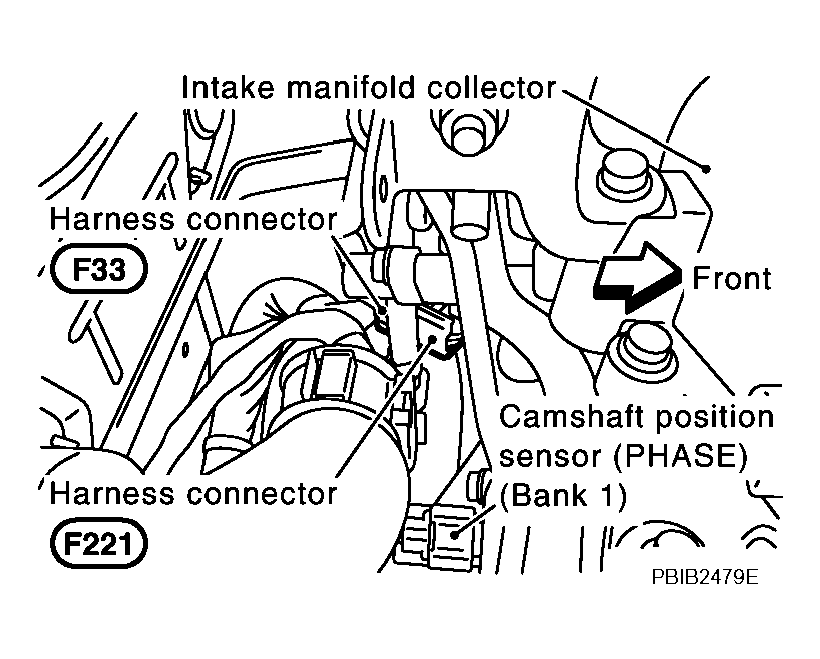

      Fig 4: Identifying Harness Connectors F33, F221
      G04119880Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between harness connector F33 terminal 5 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    5. Turn ignition switch OFF.
    6. Disconnect ECM harness connector.
    7. Check harness continuity between harness connector F33 and ECM as follows.

      Refer to WIRING DIAGRAM .

      Fig 5: Identifying Voltage Between Harness Connector Terminal 5 And Ground
      G04073991Courtesy of NISSAN MOTOR CO., U.S.A.
      TERMINALS CONTINUITY REFERENCE

      Cylinder Harness connector F33 terminal ECM terminal
      1 6 23
      2 4 42
      3 2 22
      4 3 41
      5 1 21
      6 7 40

      Continuity should exist.

    8. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Perform trouble diagnosis for FUEL INJECTOR, refer to "FUEL INJECTOR ".
  9. CHECK FUNCTION OF FUEL INJECTOR-II

    Provide battery voltage between harness connector F221 as follows and then interrupt it. Listen to each fuel injector operating sound.

    TERMINALS VOLTAGE REFERENCE

    Cylinder Harness connector F221 terminal
    (+) (-)
    1 5 6
    2 4
    3 2
    4 3
    5 1
    6 7

    Operating sound should exist.

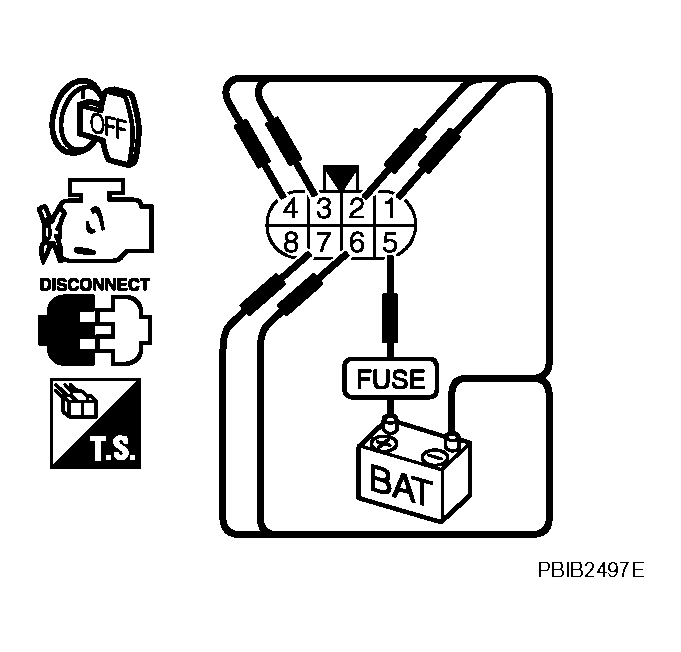

    Fig 6: Identifying Function Of Fuel Injector-II
    G04119882Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 10.
    2. NG: Perform trouble diagnosis for INJECTOR CIRCUIT, refer to "FUEL INJECTOR ".
  10. CHECK FUEL INJECTOR
    1. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
    2. Turn ignition switch OFF.
    3. Reconnect all harness connectors disconnected.
    4. Disconnect all fuel injector harness connectors.
    5. Remove fuel injector gallery assembly. Refer to "FUEL INJECTOR AND FUEL TUBE ".

      Keep fuel hose and all fuel injectors connected to injector gallery.

    6. For DTC P0171, reconnect fuel injector harness connectors on bank 1.

      For DTC P0174, reconnect fuel injector harness connectors on bank 2.

    7. Disconnect all ignition coil harness connectors.
    8. Prepare pans or saucers under each injector.
    9. Crank engine for about 3 seconds.

      For DTC P0171, make sure that fuel sprays out from fuel injectors on bank 1.

      For DTC P0174, make sure that fuel sprays out from fuel injectors on bank 2.

      Fuel should be sprayed evenly for each injector.

    OK or NG

    1. OK: GO TO 11.
    2. NG: Replace fuel injectors from which fuel does not spray out. Always replace O-ring with new ones.

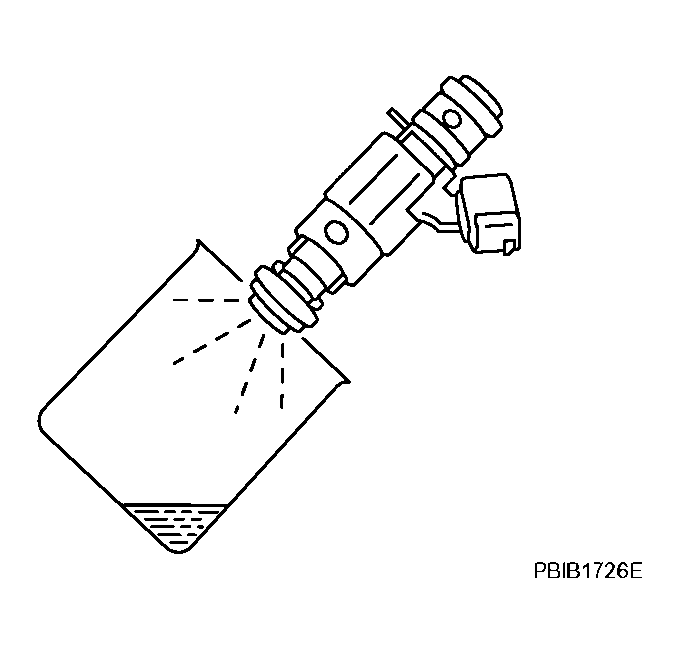

    Fig 7: Identifying Fuel Injector
    G04119883Courtesy of NISSAN MOTOR CO., U.S.A.
  11. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    INSPECTION END
