Component Description

Exhaust valve timing control position sensor detects the concave groove of the exhaust camshaft rear end.

This sensor signal is used for sensing a position of the exhaust camshaft.

This sensor uses a Hall IC.

Based on the position of the exhaust camshaft, ECM controls exhaust valve timing control magnet retarder to optimize the shut/ open timing of exhaust valve for the driving condition.

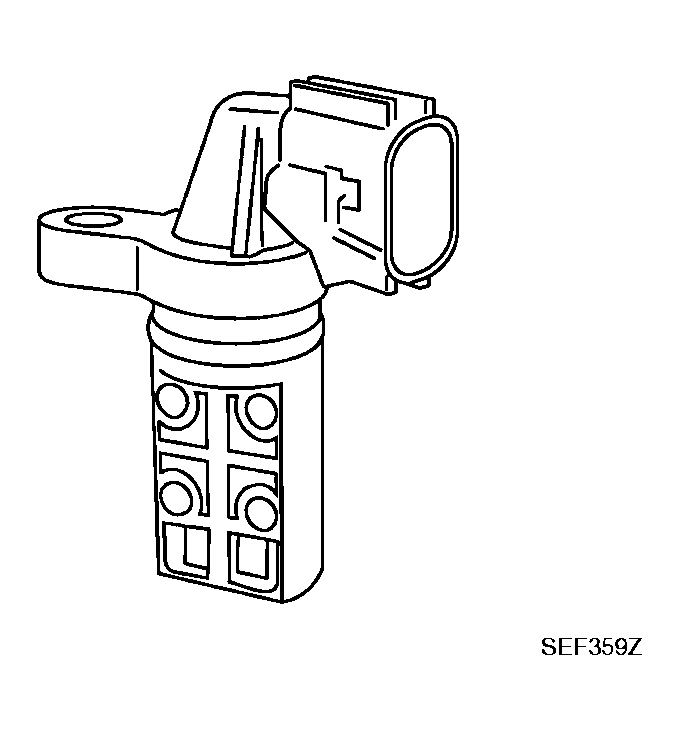

Fig 1: Identifying Exhaust Valve Timing Control Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
