Exhaust Valve Timing Control Position Sensor

  1. Disconnect exhaust valve timing control position sensor harness connector.
  2. Loosen the fixing bolt of the sensor.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

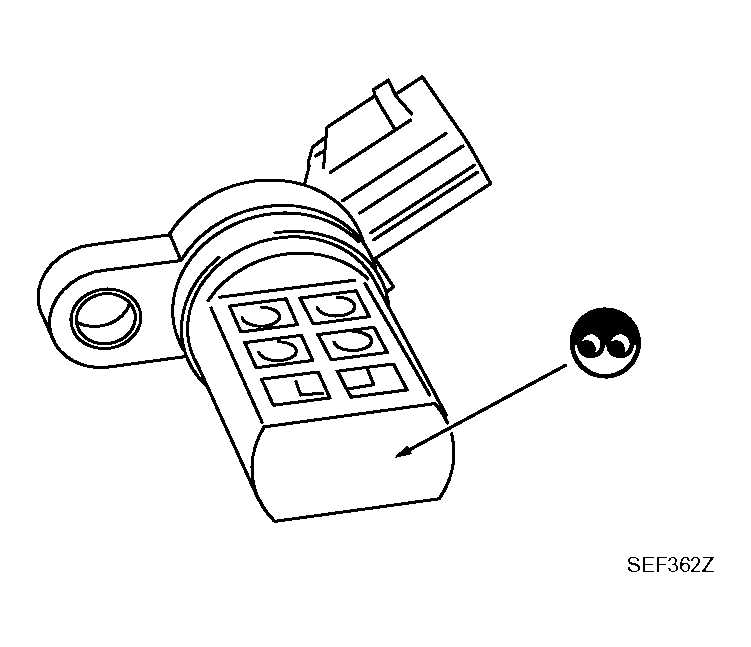

    Fig 1: Identifying Exhaust Valve Timing Control Position Sensor
    G04120132Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown below.
    TERMINALS RESISTANCE REFERENCE

    Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
    3 (+) - 1 (-) Except or [infinity]
    2 (+) - 1 (-)
    3 (+) - 2 (-)

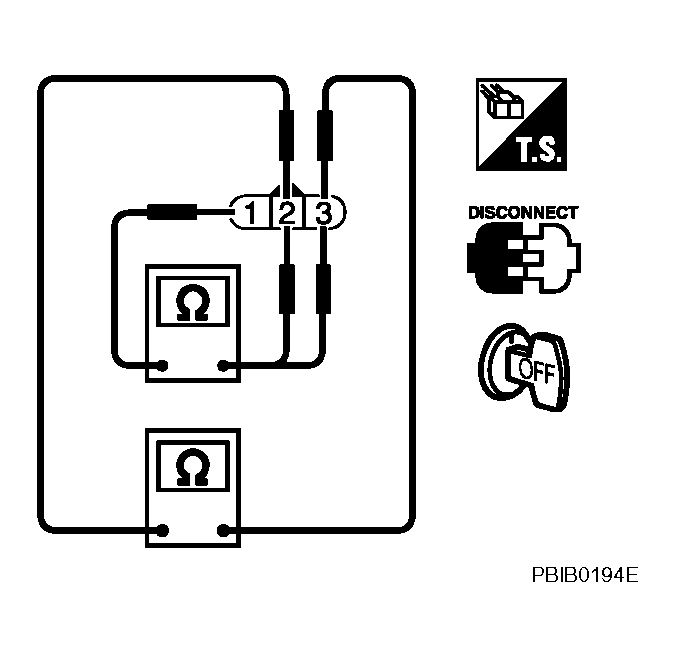

    Fig 2: Identifying Resistance
    G04120133Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If NG, replace exhaust valve timing control position sensor.
