ECM Inspection Table
Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
TERMINALS VOLTAGE CONDITIONS
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) | ||||
|---|---|---|---|---|---|---|---|---|
| 1 | B | ECM ground | [Engine is running]
|
Body ground | ||||
| 2 | OR | A/F sensor 1 heater (bank 1) | [Engine is running]
|
|||||
| 3 | W/R | Throttle control motor relay power supply | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | ||||
| 4 | BR | Throttle control motor (Close) | [Ignition switch: ON]
|
|||||
| 5 | G | Throttle control motor (Open) | [Ignition switch: ON]
|
|||||
| 6 | BR/W | Heated oxygen sensor 2 heater (bank 2) | [Engine is running]
|
0 - 1.0V | ||||
[Ignition switch: ON]
[Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | |||||||
| 8(2) | R/W | Exhaust valve timing control magnet retarder (bank 2) | [Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | ||||

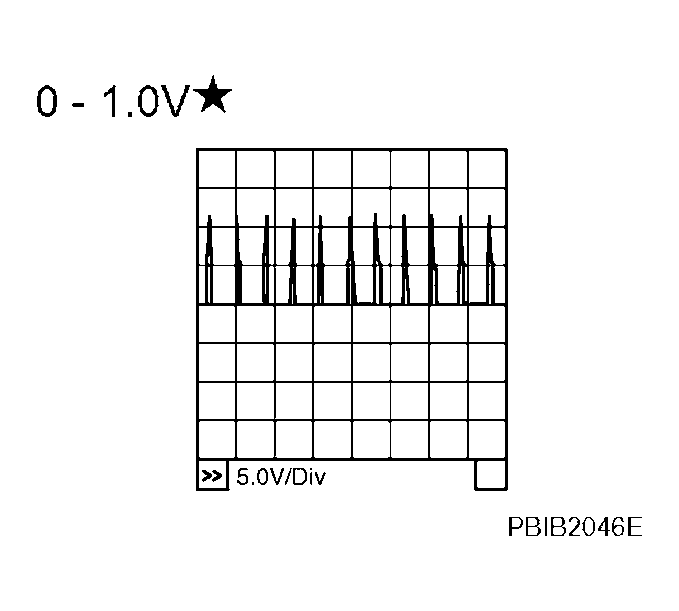

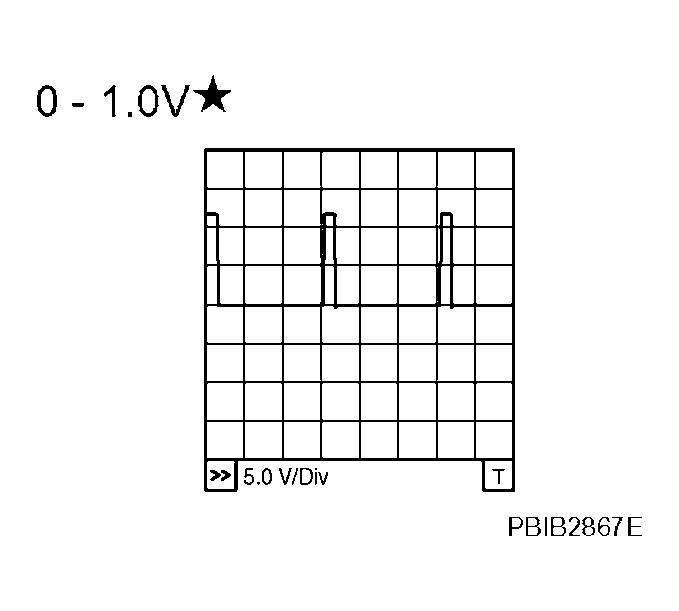

[Engine is running]
|
||||||||
| 9(2) | P | Exhaust valve timing control magnet retarder (bank 1) | [Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | ||||

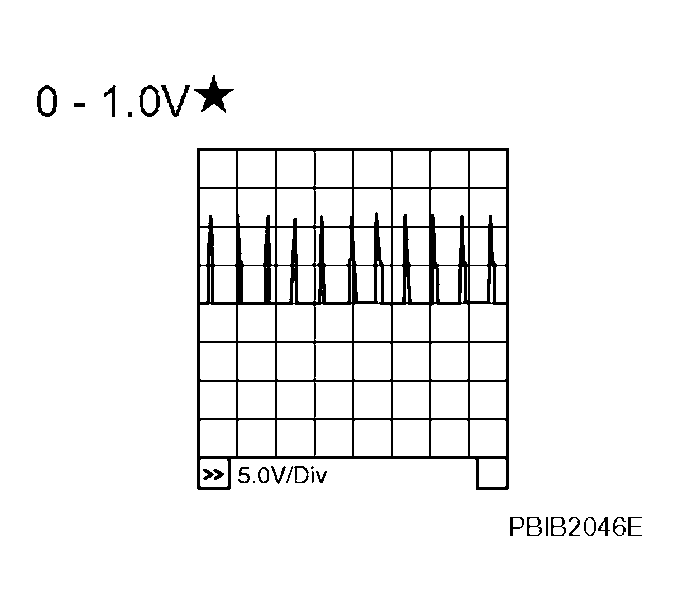

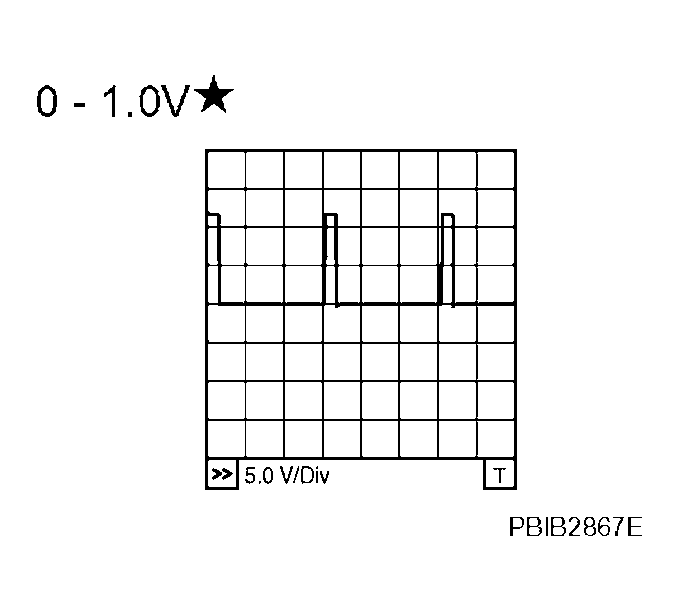

[Engine is running]
|
||||||||
| 10 | W/G | Intake valve timing control solenoid valve (bank 2) | [Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | ||||
[Engine is running]
|
||||||||
| 11 | R/W | Intake valve timing control solenoid valve (bank 1) | [Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | ||||
[Engine is running]
|
||||||||
| 12 | L/W | Power steering pressure sensor | [Engine is running]
|
0.5 - 4.5V | ||||
[Engine is running]
|
0.4 - 0.8V | |||||||
| 13 | BR | Crankshaft position sensor (POS) | [Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 14 | Y | Camshaft position sensor (PHASE) (bank 2) | [Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 15 | W | Knock sensor | [Engine is running]
|
Approximately 2.5V | ||||
| 16 | W | A/F sensor 1 (bank 1) | [Engine is running]
|
Approximately 3.1V | ||||
| 35 | R | Approximately 2.6V | ||||||
| 56 | L | Approximately 2.3V | ||||||
| 75 | Y | Approximately 2.3V | ||||||
| 21 22 23 |
G R/Y R/B |
Fuel injector No. 5 Fuel injector No. 3 Fuel injector No. 1 |
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 24 | OR | A/F sensor 1 heater (bank 2) | [Engine is running]
|
|||||
| 25 | P/B | Heated oxygen sensor 2 heater (bank 1) | [Engine is running]
|
0 - 1.0V | ||||
[Ignition switch: ON]
[Engine is running]
|
BATTERY VOLTAGE (11 - 14V) | |||||||
| 32 | P | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8V | ||||
| 33 | OR | Camshaft position sensor (PHASE) (bank 1) | [Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 34 | Y/G | Intake air temperature sensor | [Engine is running] | Approximately 0 - 4.8V Output voltage varies with intake air temperature. | ||||
| 40 41 42 |
P R/L R/W |
Fuel injector No. 6 Fuel injector No. 4 Fuel injector No. 2 |
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 45 | L/Y | EVAP canister purge volume control solenoid valve | [Engine is running]
|
|||||
[Engine is running]
|
||||||||
| 47 | B | Sensor power supply (Throttle position sensor) | [Ignition switch: ON] | Approximately 5V | ||||
| 48 | B/Y | Sensor power supply (EVAP control system pressure sensor) | [Ignition switch: ON] | Approximately 5V | ||||
| 49 | W/L | Sensor power supply (Refrigerant pressure sensor) | [Ignition switch: ON] | Approximately 5V | ||||
| 50 | W | Throttle position sensor 1 | [Ignition switch: ON]
|
More than 0.36V | ||||
[Ignition switch: ON]
|
Less than 4.75V | |||||||
| 51 | OR | Mass air flow sensor | [Engine is running]
|
0.9 - 1.2V | ||||
[Engine is running]
|
1.5 - 1.9V | |||||||
| 53(1) | R/W | Exhaust valve timing control position sensor (bank 1) | [Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 55 | R/Y | Heated oxygen sensor 2 (bank 2) | [Engine is running]
|
0 - Approximately 1.0V | ||||
| 57 | R | A/F sensor 1 (bank 2) | [Engine is running]
|
Approximately 2.6V | ||||
| 58 | L | Approximately 2.3V | ||||||
| 76 | W | Approximately 3.1V | ||||||
| 77 | Y | Approximately 2.3V | ||||||
| 60 61 62 |
PU/W L/R Y/R |
Ignition signal No. 5 Ignition signal No. 3 Ignition signal No. 1 |
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 66 | W/R | Sensor ground (Throttle position sensor) | [Engine is running]
|
Approximately 0V | ||||
| 67 | B/W | Sensor ground | [Engine is running]
|
Approximately 0V | ||||
| 68 | Y | Sensor power supply (Power steering pressure sensor) | [Ignition switch: ON] | Approximately 5V | ||||
| 69 | R/L | Throttle position sensor 2 | [Ignition switch: ON]
|
Less than 4.75V | ||||
[Ignition switch: ON]
|
More than 0.36V | |||||||

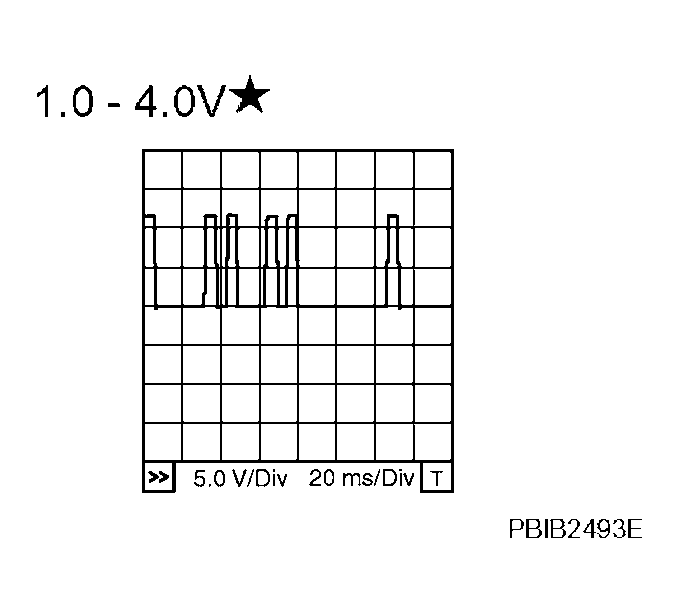

| 70 | R/B | Refrigerant pressure sensor | [Engine is running]
|
1.0 - 4.0V | ||||
| 72(1) | Y/B | Exhaust valve timing control position sensor (bank 2) | [Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 73 | Y/B | Engine coolant temperature sensor | [Engine is running] | Approximately 0 - 4.8V Output voltage varies with engine coolant temperature. | ||||
| 74 | L/B | Heated oxygen sensor 2 (bank 1) | [Engine is running]
|
0 - Approximately 1.0V | ||||
| 78 | B/Y | Sensor ground (Heated oxygen sensor) | [Engine is running]
|
Approximately 0V | ||||
| 79 80 81 |
GY/R GY G/R |
Ignition signal No. 6 Ignition signal No. 4 Ignition signal No. 2 |
[Engine is running]
NOTE:
The pulse cycle changes depending on RPM at idle.
|
|||||
[Engine is running]
|
||||||||
| 82 | GY/L | Sensor ground (Accelerator pedal position sensor 1) | [Engine is running]
|
Approximately 0V | ||||
| 83 | B/R | Sensor ground (Accelerator pedal position sensor 2) | [Engine is running]
|
Approximately 0V | ||||
| 85 | PU | Data link connector | [Ignition switch: ON]
|
Approximately 5V - Battery voltage (11 - 14V) | ||||
| 86 | P | CAN communication line | [Ignition switch: ON] | Approximately 1.1 - 2.3V Output voltage varies with the communication status. | ||||
| 90 | BR/Y | Sensor power supply (Accelerator pedal position sensor 1) | [Ignition switch: ON] | Approximately 5V | ||||
| 91 | G | Sensor power supply (Accelerator pedal position sensor 2) | [Ignition switch: ON] | Approximately 5V | ||||
| 94 | L | CAN communication line | [Ignition switch: ON] | Approximately 2.6 - 3.2V Output voltage varies with the communication status. | ||||
| 98 | LG/B | Accelerator pedal position sensor 2 | [Ignition switch: ON]
|
0.15 - 0.60V | ||||
[Ignition switch: ON]
|
1.95 - 2.40V | |||||||
| 99 | G/Y | ASCD steering switch | [Ignition switch: ON]
|
Approximately 4V | ||||
[Ignition switch: ON]
|
Approximately 0V | |||||||
[Ignition switch: ON]
|
Approximately 1V | |||||||
[Ignition switch: ON]
|
Approximately 3V | |||||||
[Ignition switch: ON]
|
Approximately 2V | |||||||
| 101 | P/L | Stop lamp switch | [Ignition switch: OFF]
|
Approximately 0V | ||||
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||||||
| 102 | G/OR | PNP switch | [Ignition switch: ON]
|
Approximately 0V | ||||
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | |||||||
| 104 | G/W | Throttle control motor relay | [Ignition switch: OFF] | BATTERY VOLTAGE (11 - 14V) | ||||
| [Ignition switch: ON] | 0 - 1.0V | |||||||
| 106 | BR | Accelerator pedal position sensor 1 | [Ignition switch: ON]
|
0.5 - 1.0V | ||||
[Ignition switch: ON]
|
3.9 - 4.7V | |||||||
| 107 | L/OR | Fuel tank temperature sensor | [Engine is running] | Approximately 0 - 4.8V Output voltage varies with fuel tank temperature. | ||||
| 108 | L | ASCD brake switch | [Ignition switch: ON]
|
Approximately 0V | ||||
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | |||||||
| 109 | W/L | Ignition switch | [Ignition switch: OFF] | 0V | ||||
| [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | |||||||
| 111 | W | ECM relay (Self shut-off) | [Engine is running] [Ignition switch: OFF]
|
0 - 1.5V | ||||
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||||||
| 113 | B/OR | Fuel pump relay | [Ignition switch: ON]
[Engine is running] |
0 - 1.5V | ||||
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) | |||||||
| 115 116 |
B/R B |
ECM ground | [Engine is running]
|
Body ground | ||||
| 117 | GY/L | EVAP canister vent control valve | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | ||||
| 119 120 |
P L |
Power supply for ECM | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) | ||||
| 121 | R/W | Power supply for ECM (Back-up) | [Ignition switch: OFF] | BATTERY VOLTAGE (11 - 14V) | ||||
|
||||||||
