< Driving Pattern A>
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

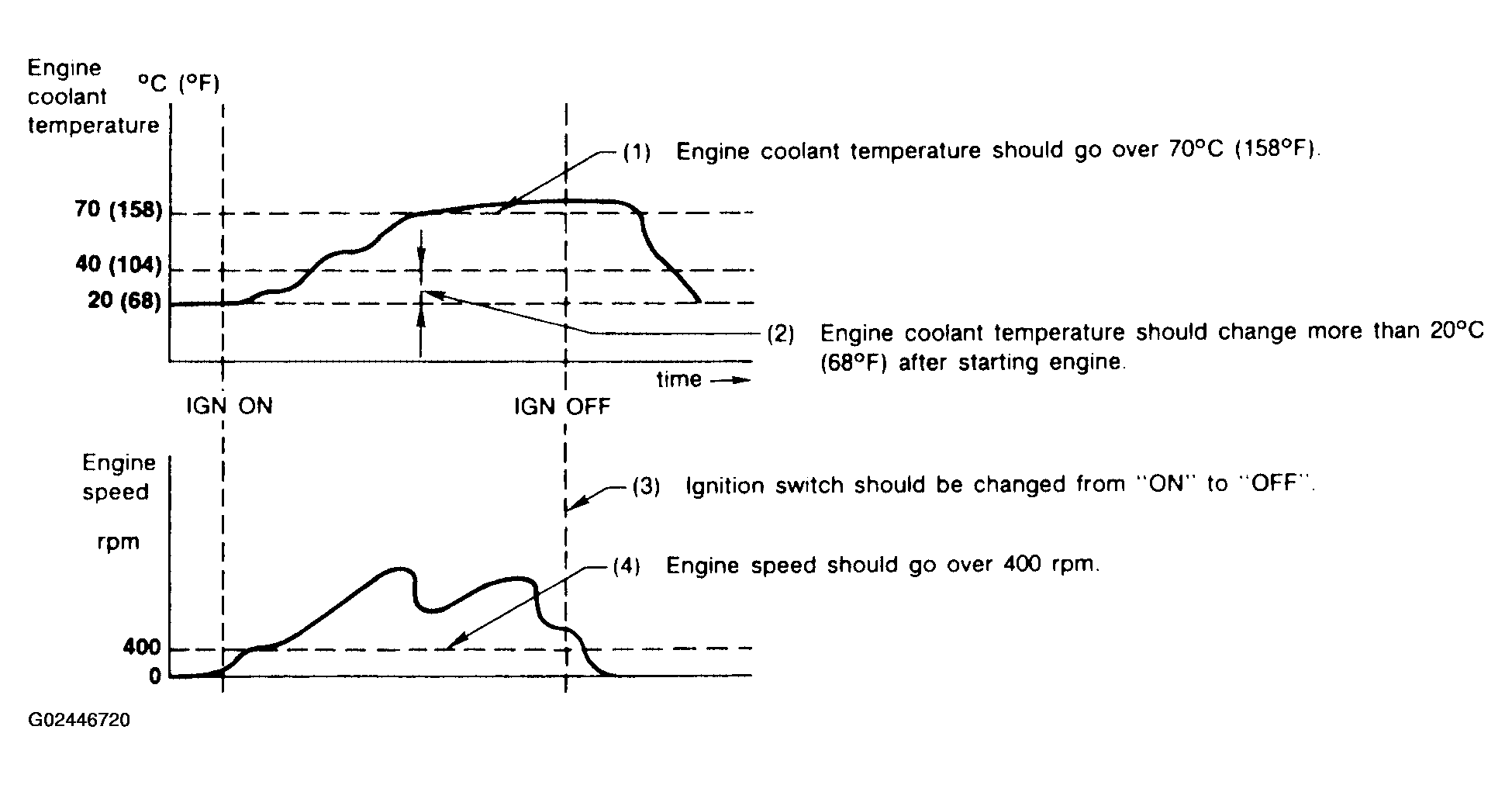

Fig 1: Explanation For Driving Patterns Except For "Misfire Exhaust Quality Deterioration", "Fuel Injection System" - Driving Pattern A
- The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
- The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
- The DTC will not be displayed after the A counter reaches 40.
