CLSD THL Pos, ACCEL Sen 1, THRTL Sen 1

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Below is the data for "CLSD THL POS", "ACCEL SEN 1" and "THRTL SEN 1" when depressing the accelerator pedal with the ignition switch ON and with selector lever in D position.

The signal of "ACCEL SEN 1" and "THRTL SEN 1" should rise gradually without any intermittent drop or rise after "CLSD THL POS" is changed from ON to OFF.

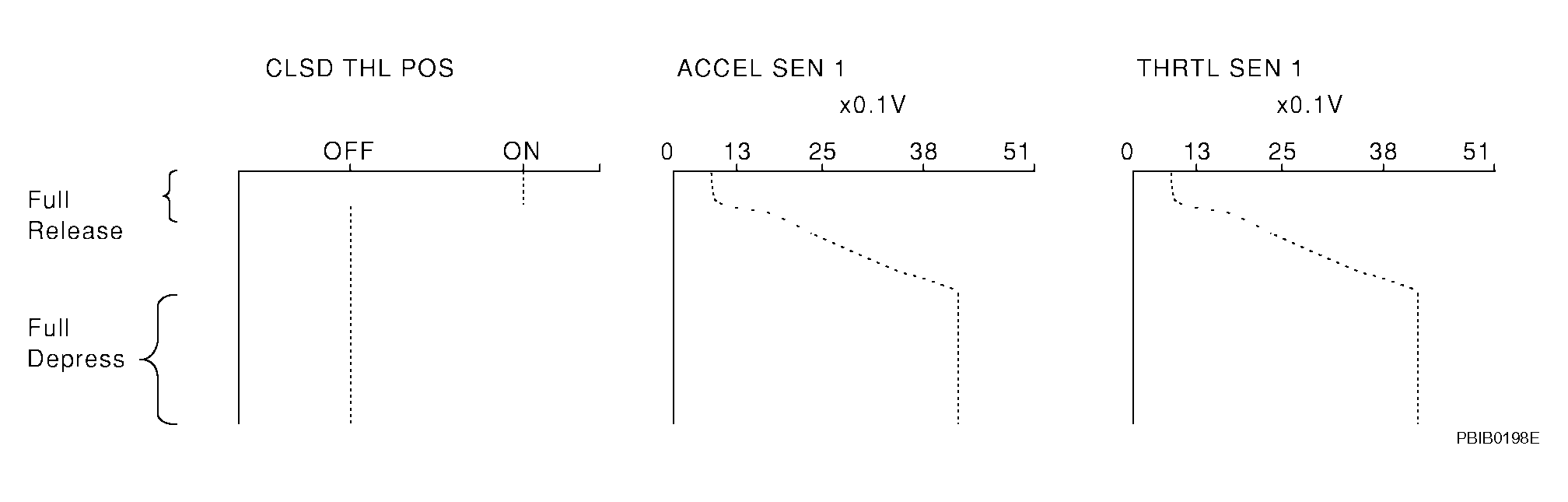

Fig 1: CLSD THL POS, ACCEL SEN 1 And THRTL SEN 1 - Major Sensor Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
