Components (AWD Models)

CAUTION: Securely insert harness connector to pressure sensor.

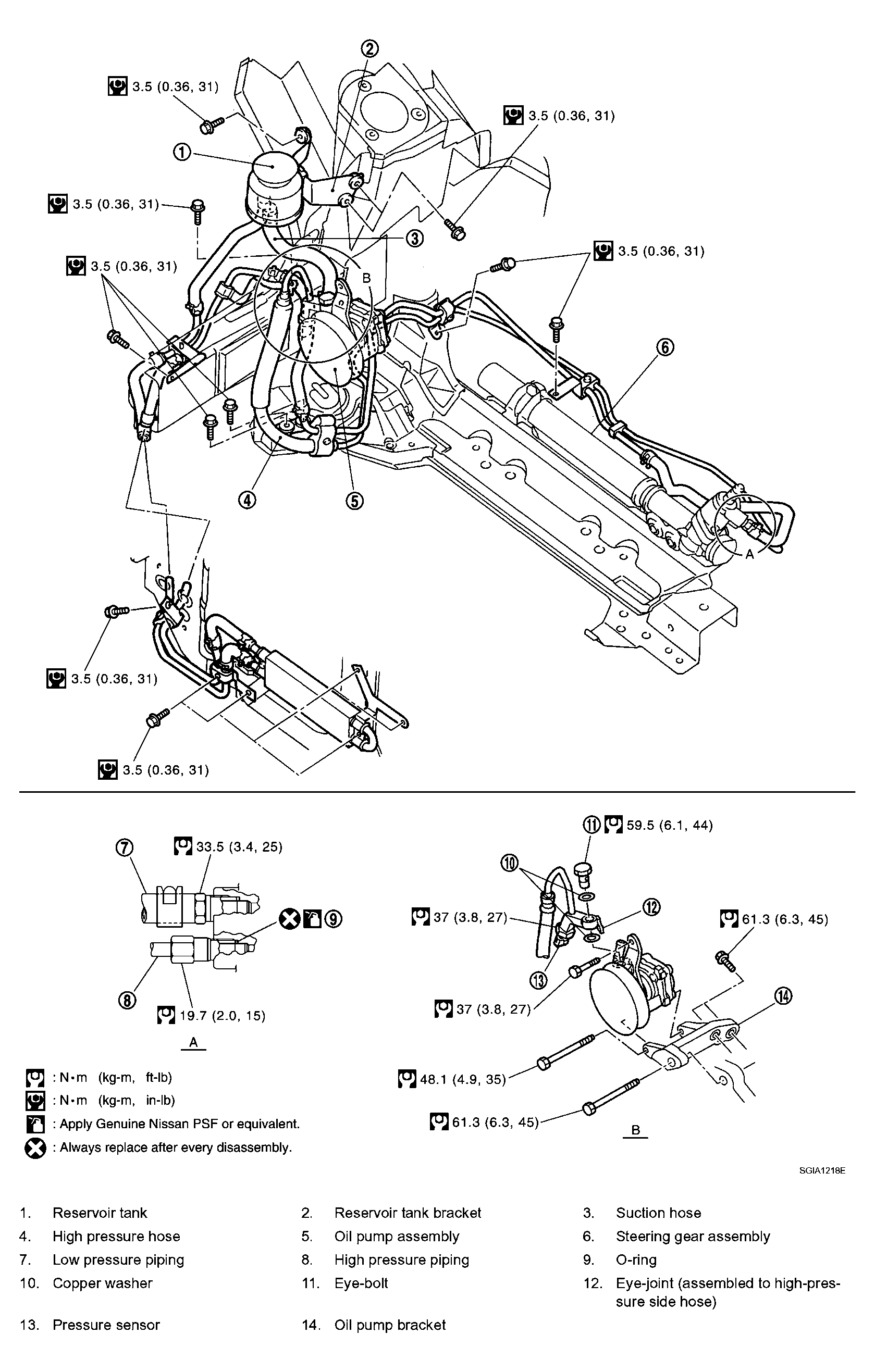

Fig 1: Hydraulic Line Replacement Components With Torque Specifications (AWD Models)
G04122143Courtesy of NISSAN MOTOR CO., U.S.A.
