Front Display Unit
FRONT DISPLAY UNIT TERMINALS AND REFERENCE VALUE
| Terminal (Wire color) | Item | Signal input/output | Condition | Reference value | ||
|---|---|---|---|---|---|---|
| + | - | Ignition switch | Operation | |||

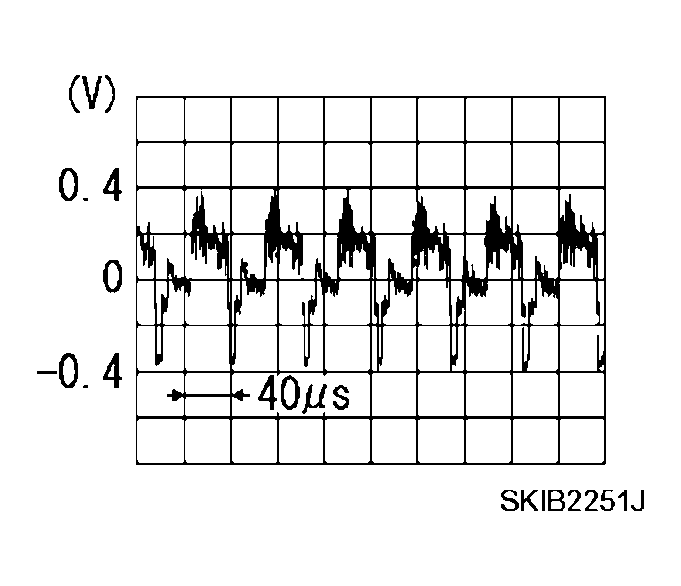

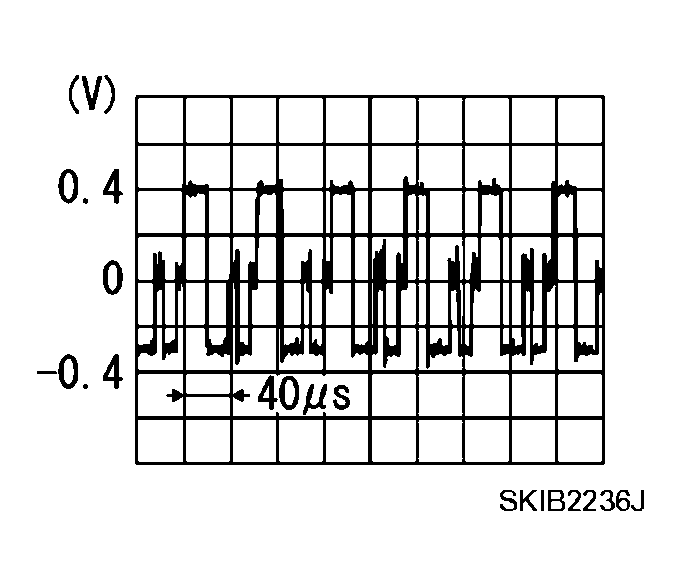

| 1 (B) | 8 (W/L) | RGB signal (R: red) | Input | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |

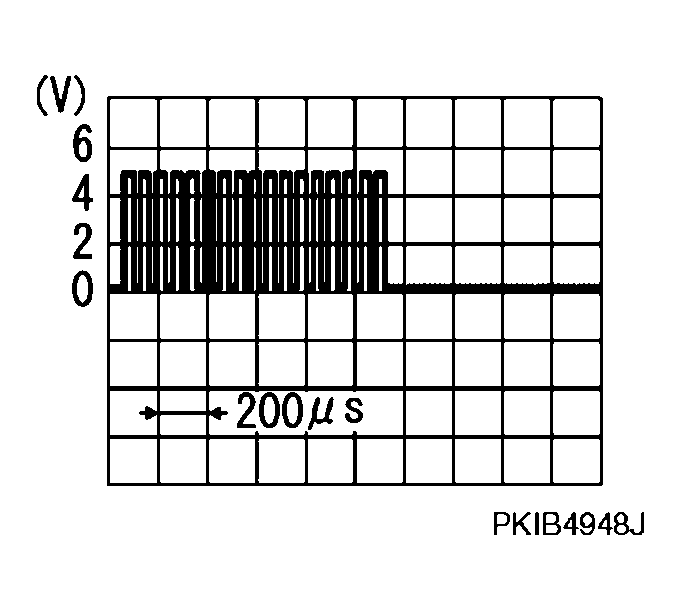

| 2 (L/G) | Ground | RGB area (YS) signal | Input | ON | When inputting RGB image. | Approx. 5 V |
| Set the selector lever in R position, and then display the rear view image. | ||||||

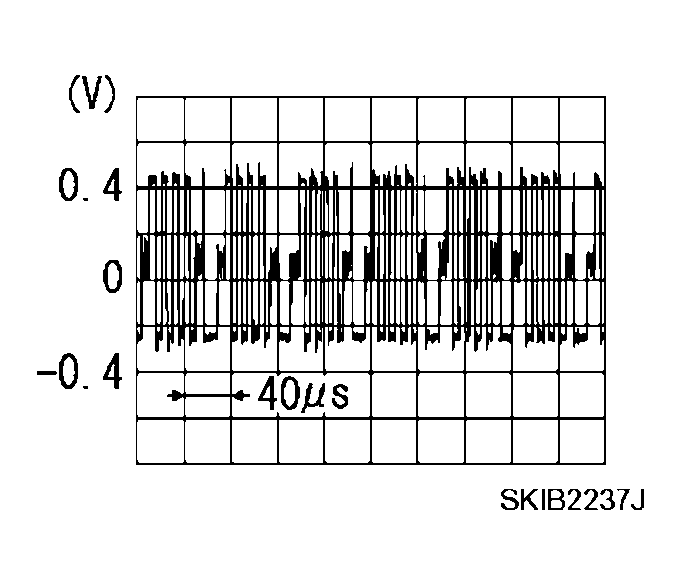

| 3 (W) | 8 (W/L) | RGB signal (G: green) | Input | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |

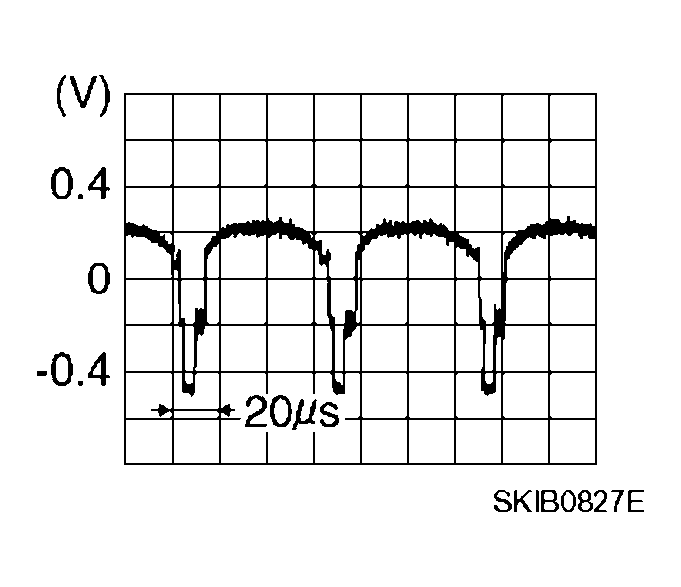

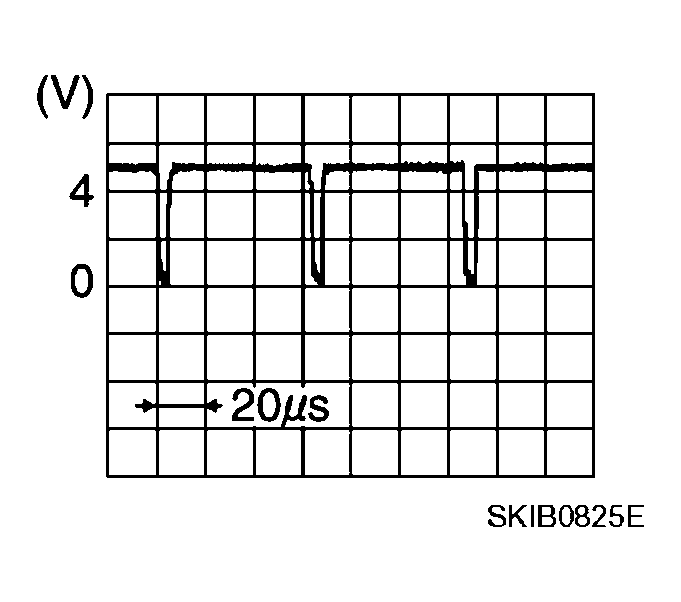

| 4 (W/L) | Ground | Horizontal synchronizing (HP) signal | Output | ON | - | |

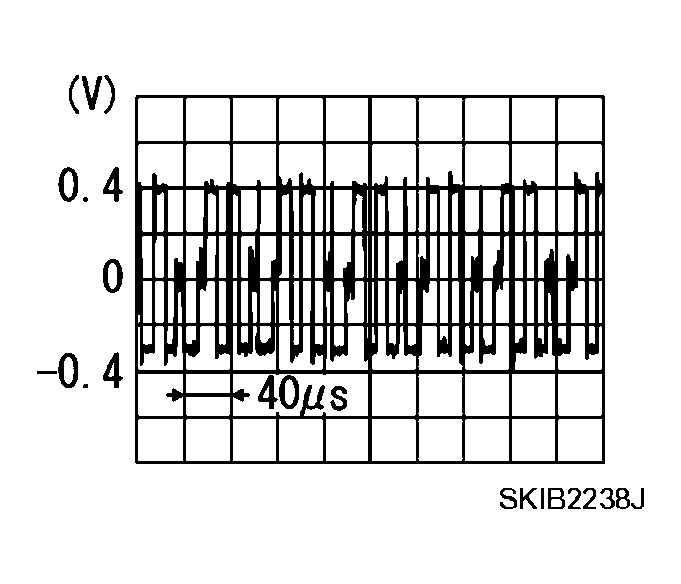

| 5 (R) | 8 (W/L) | RGB signal (B: blue) | Input | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |

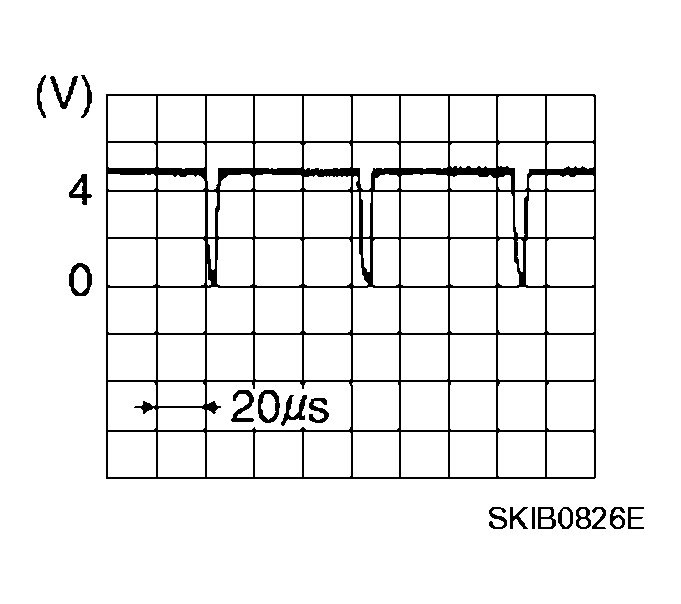

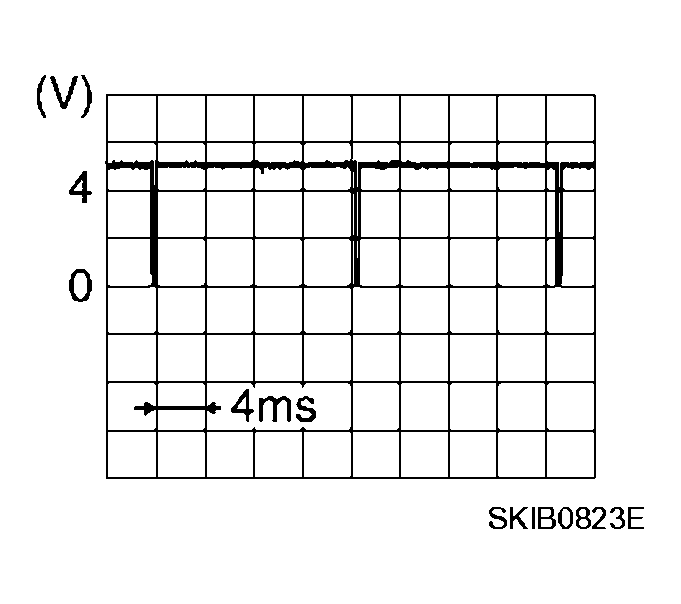

| 6 (O/L) | Ground | Vertical synchronizing (VP) signal | Output | ON | - | |

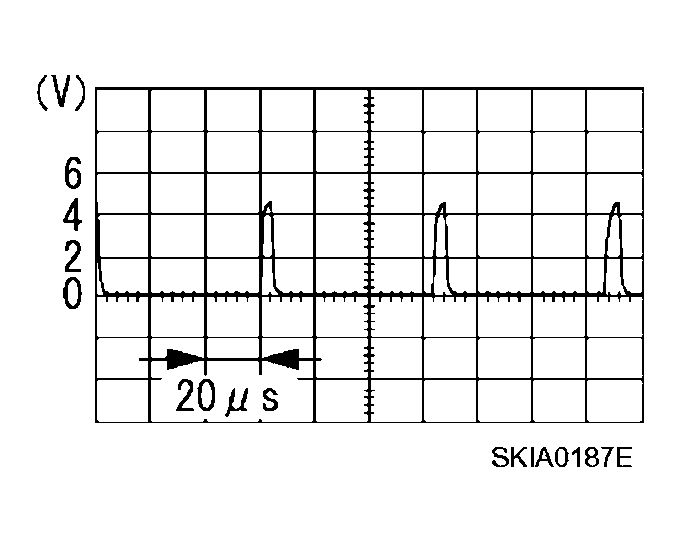

| 7 (L/Y) | Ground | RGB synchronizing signal | Output | ON | - | |
| 8 (W/L) | Ground | RGB ground | - | ON | - | Approx. 0 V |
| 10 | - | Shield | - | - | - | - |
| 11 (Y) | Ground | Camera image signal | Input | ON | Set the selector in R position, and then display the rear view image. | |
| 12 | - | Shield | - | - | - | - |
| 13 (B/R) | Ground | Composite synchronizing signal | Input | ON | - | |
| 14 | - | Shield | - | - | - | - |
| 15 (BR) | Ground | Composite image signal | Input | ON | DVD image | |

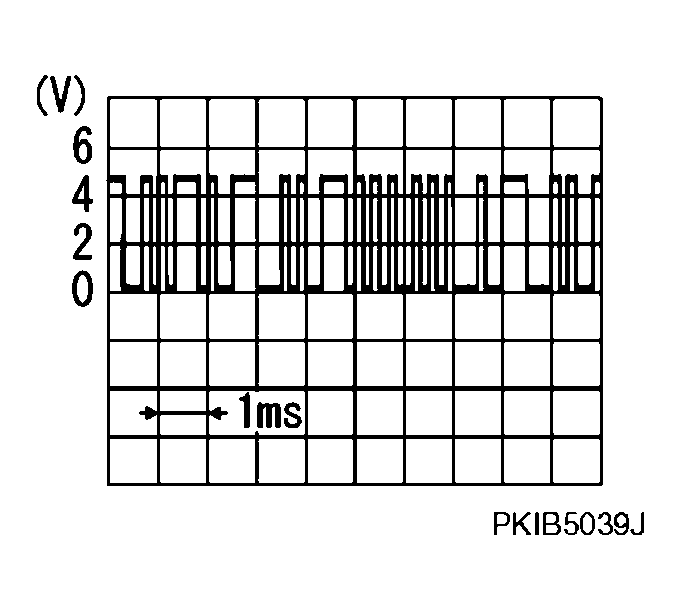

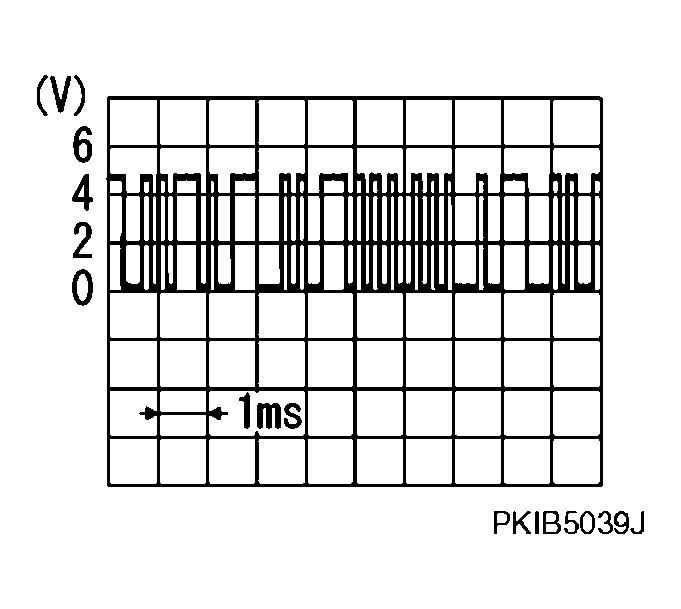

| 17 (W/L) | Ground | Communication signal (DISP-CONT) | Output | ON | When adjusting display brightness. | |
| 18 | - | Shield | - | - | - | - |
| 19 (O/L) | Ground | Communication signal (CONT-DISP) | Input | ON | When adjusting display brightness. | |
| 20 (V) | Ground | ACC power supply | Input | ACC | - | Battery voltage |
| 21 (L) | Ground | Battery power supply | Input | OFF | - | Battery voltage |
| 23 (B) | Ground | Ground | - | ON | - | Approx. 0 V |
