Video Distributor
VIDEO DISTRIBUTOR TERMINALS AND REFERENCE VALUE
| Terminal (Wire color) | Item | Signal input/output | Condition | Reference value | ||
|---|---|---|---|---|---|---|
| + | - | Ignition switch | Operation | |||
| 1 (W) | - | Communication signal (H) | Input/Output | - | - | - |
| 2 (R) | - | Communication signal (L) | Input/Output | - | - | - |
| 3 (W) | - | Communication signal (H) | Input/Output | - | - | - |
| 4 (R) | - | Communication signal (L) | Input/Output | - | - | - |
| 6 | - | Shield | - | - | - | - |

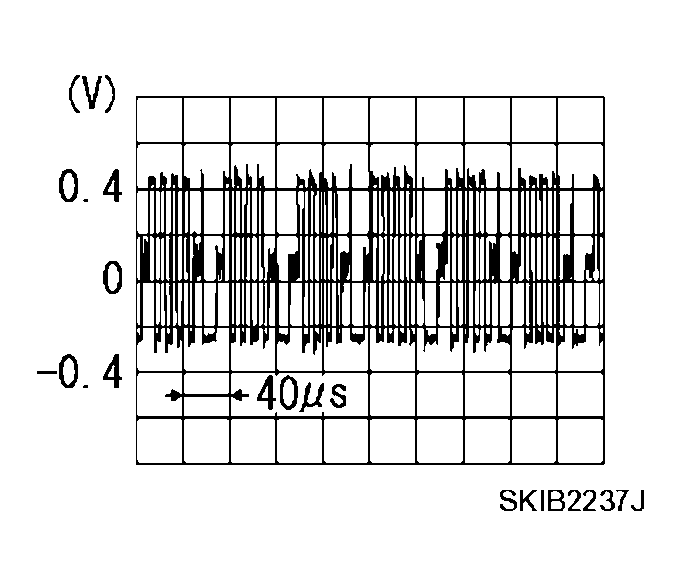

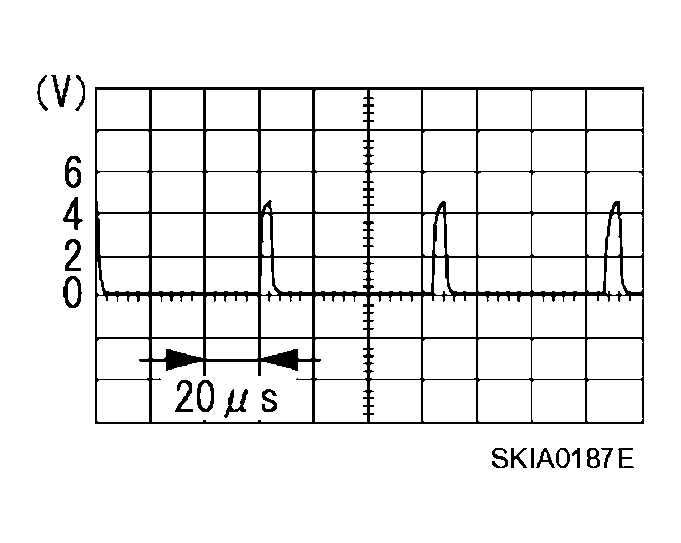

| 7 (B/R) | Ground | Composite synchronizing signal (front) | Output | ON | Front display DVD image | |

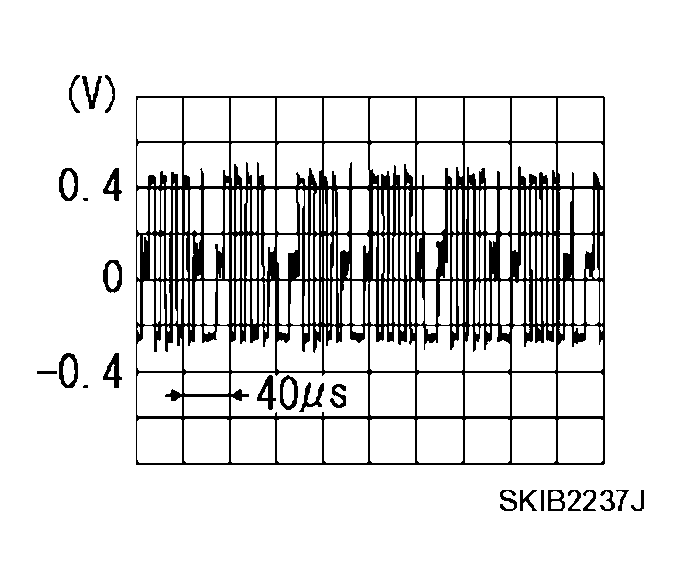

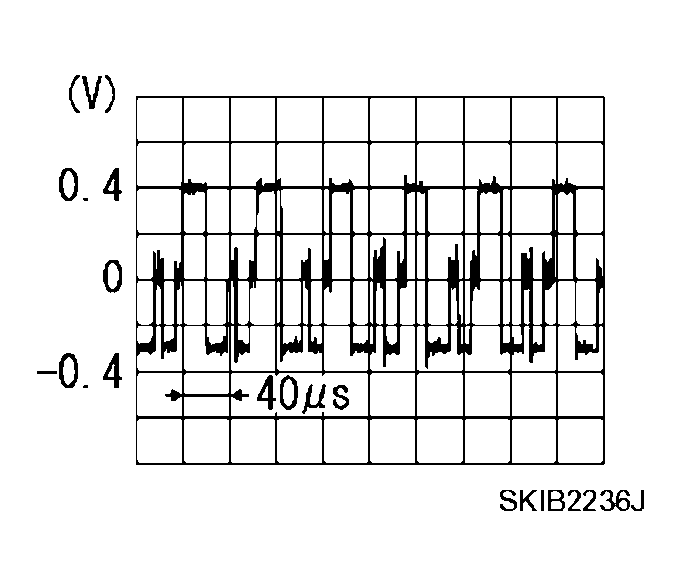

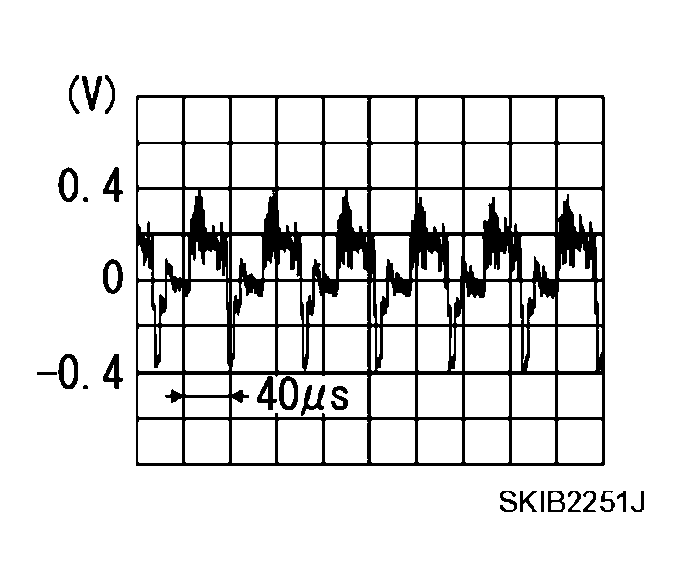

| 8 (BR) | Ground | Composite image signal (front) | Output | ON | Front display DVD image | |

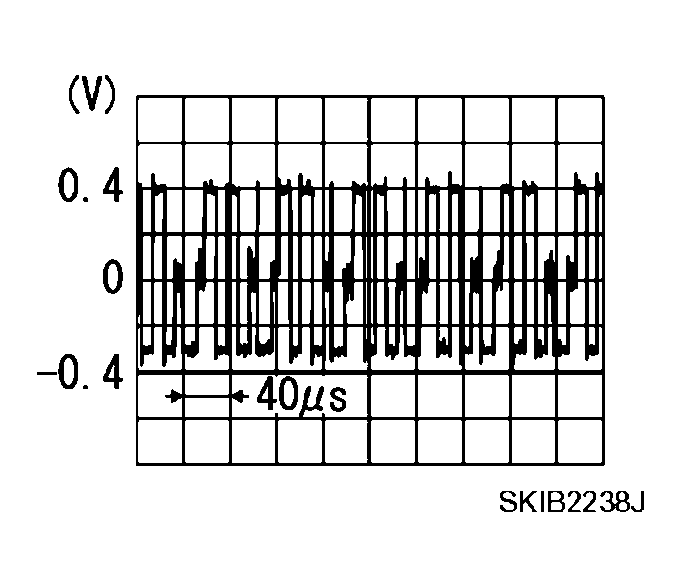

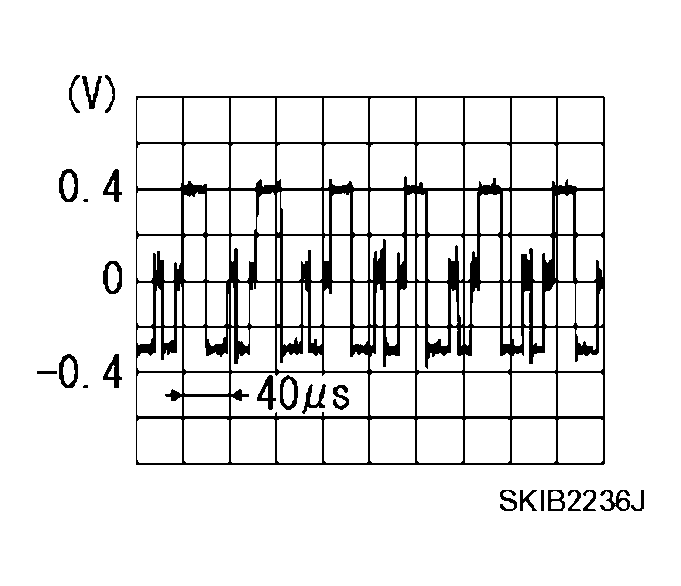

| 10 (B) | 12 (W/L) | RGB signal (R: red) (front) | Output | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |

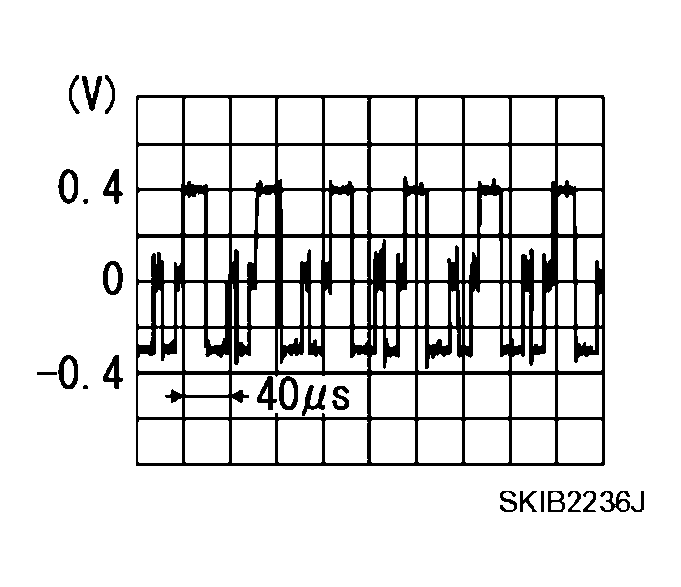

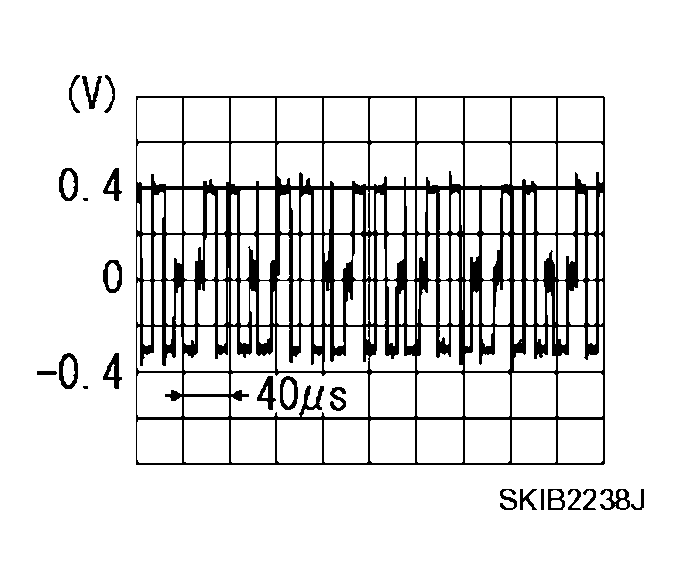

| 11 (W) | 12 (W/L) | RGB signal (G: green) (front) | Output | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 12 (W/L) | - | RGB ground | - | ON | - | Approx. 0 V |
| 13 (R) | 12 (W/L) | RGB signal (B: blue) (front) | Output | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 14 (L/G) | Ground | RGB area (YS) signal (front) | Output | ON | When inputting RGB image. | Approx. 5 V |
| Set the selector lever in R position, and then display the rear view image. | ||||||

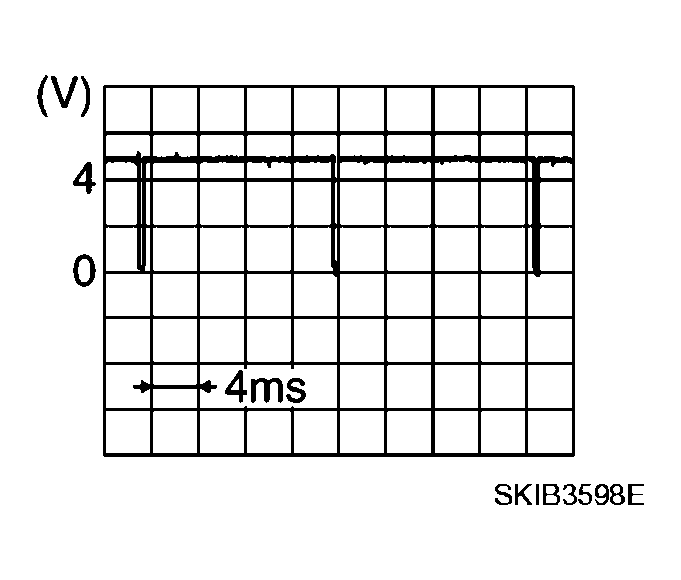

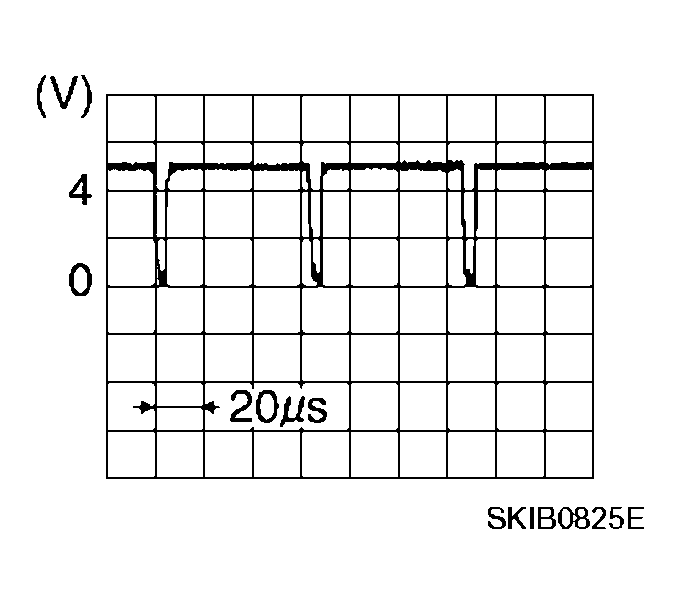

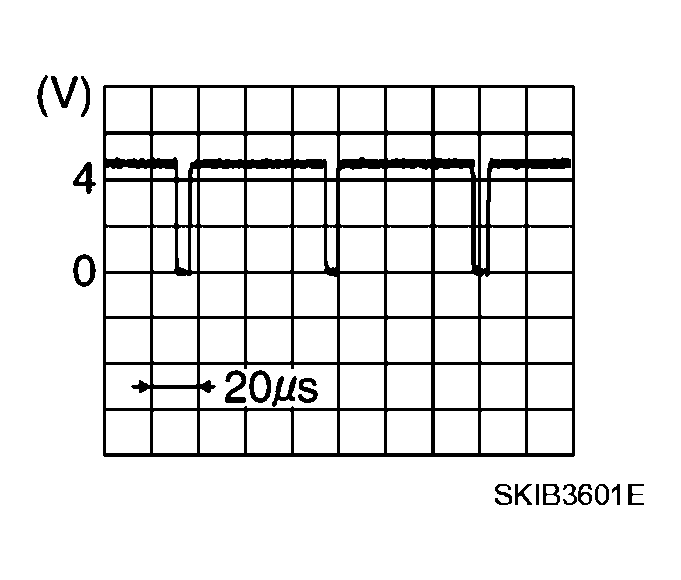

| 15 (W/L) | Ground | Horizontal synchronizing (HP) signal (front) | Input | ON | - | |

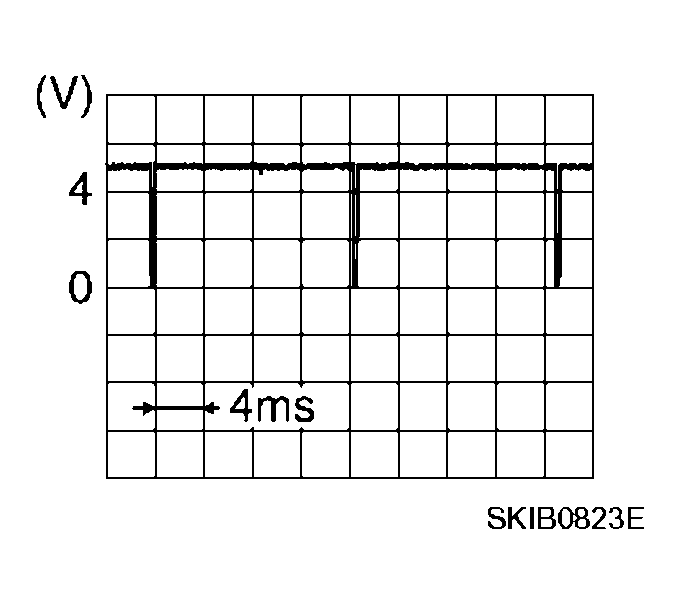

| 16 (O/L) | Ground | Vertical synchronizing (VP) signal (front) | Input | ON | - | |

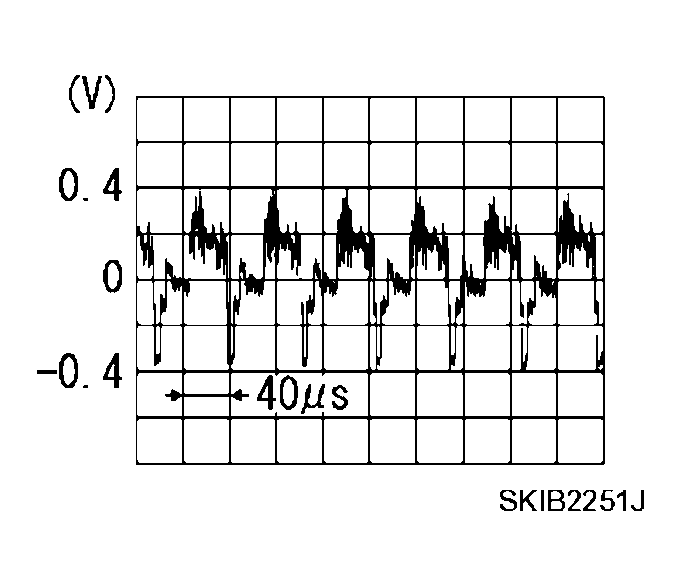

| 17 (L/Y) | Ground | RGB synchronizing signal (front) | Output | ON | - | |
| 18 | - | Shield | - | - | - | - |
| 19 (R) | Ground | AUX image signal | Input | ON | AUX image | |
| 21 | - | Shield | - | - | - | - |
| 22 | - | Shield | - | - | - | - |
| 23 (L) | Ground | DVD image signal | Input | ON | DVD image | |
| 25 (B) | 27 (G) | RGB signal (R: red) (rear) | Output | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 26 (W) | 27 (G) | RGB signal (G: green) (rear) | Output | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 27 (G) | Ground | RGB ground | - | ON | - | Approx. 0 V |
| 28 (R) | 27 (G) | RGB signal (B: blue) (rear) | Output | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 29 (W/R) | Ground | Vertical synchronizing (VP) signal (rear) | Input | ON | - | |
| 30 (W) | Ground | Horizontal synchronizing (HP) signal (rear) | Input | ON | - | |
| 31 | - | Shield | - | - | - | - |
| 32 (R/L) | Ground | RGB area (YS) signal (rear) | Output | ON | When inputting RGB image. | Approx. 5 V |
| Rear display DVD image | ||||||
| 33 (R) | Ground | Image synchronizing signal (rear) | Output | ON | Rear display RGB image | |
| 34 (G) | Ground | Composite image signal (rear) | Output | ON | Rear display DVD image | |
| 35 | - | Shield | - | - | - | - |
| 36 (O) | Ground | Ignition signal (rear display) | Output | ON | - | Approx. 0 V |
| ACC | - | Approx. 5 V | ||||
| 38 | - | Shield | - | - | - | - |

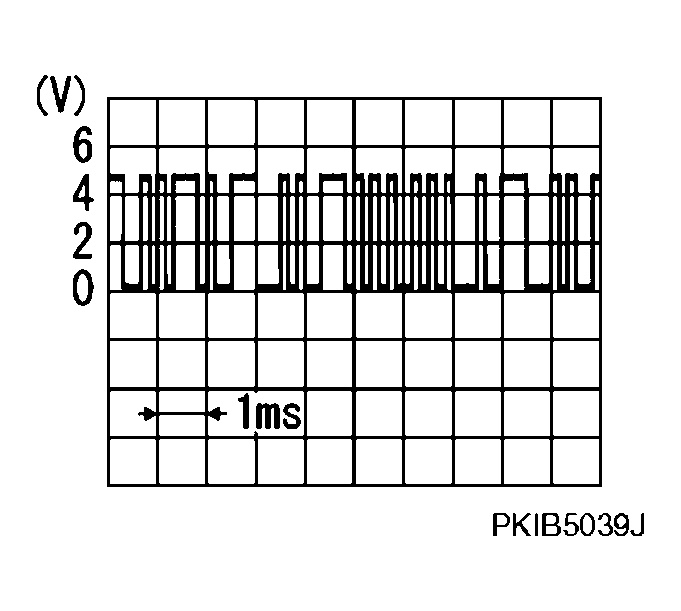

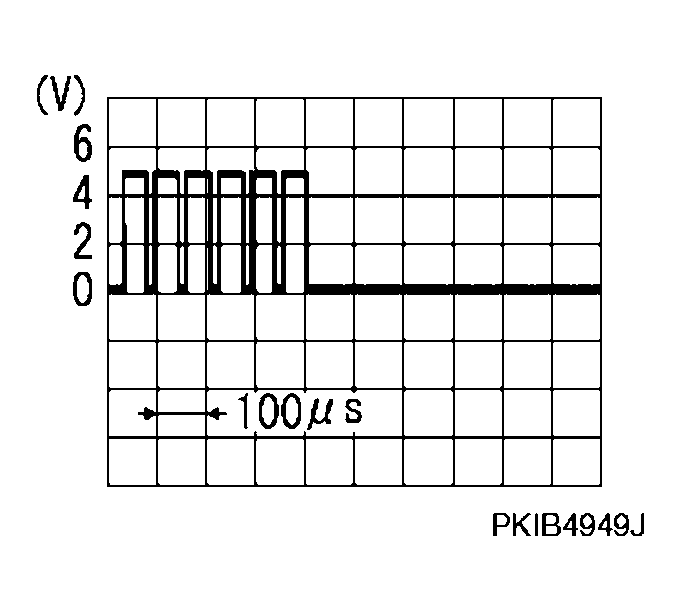

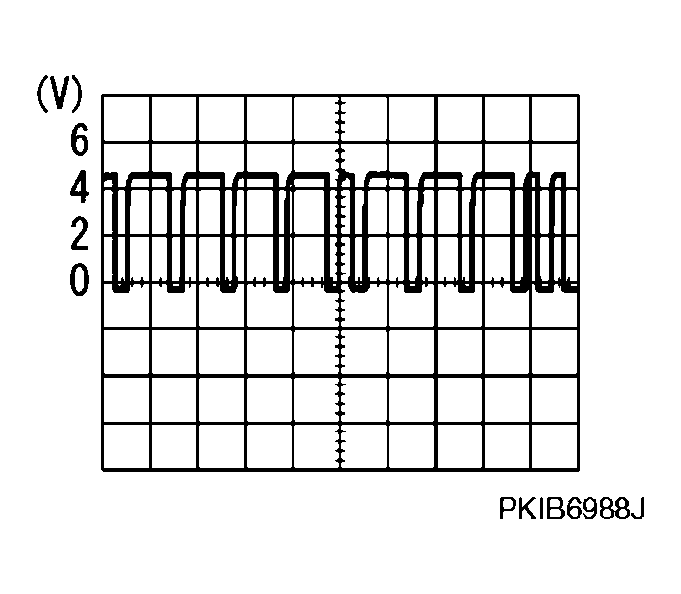

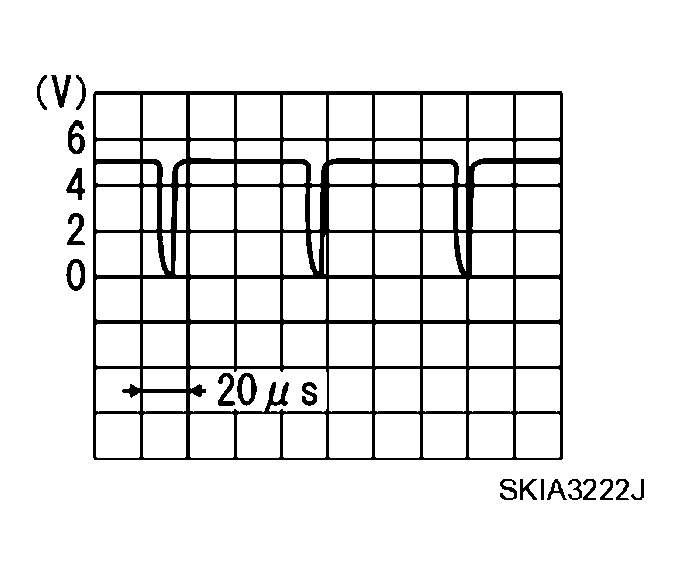

| 39 (W) | Ground | Communication signal (DISP-DIST) | Input | ON | Image quality adjustment | |
| 40 (O) | Ground | Communication signal (DIST-DISP) | Output | ON | Image quality adjustment | |
| 44 (L/G) | 47 (G) | RGB signal (R: red) | Input | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 45 (O/L) | 47 (G) | RGB signal (G: green) | Input | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 46 (L/Y) | 47 (G) | RGB signal (B: blue) | Input | ON | Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. | |
| 47 (G) | Ground | RGB ground | - | ON | - | Approx. 0 V |
| 48 (G) | Ground | RGB area (YS) signal | Input | ON | When inputting RGB image. | Approx. 5 V |
| Set the selector lever in R position, and then display the rear view image. | ||||||
| 49 (W) | Ground | Horizontal synchronizing (HP) signal | Output | ON | - | |
| 50 (R) | Ground | Vertical synchronizing (VP) signal | Output | ON | - | |
| 51 (B) | Ground | RGB synchronizing signal | Input | ON | - | |
| 52 | - | Shield | - | - | - | - |
| 53 (B) | Ground | Ground | - | ON | - | Approx. 0 V |
| 54 (L) | Ground | Battery power supply | Input | OFF | - | Battery voltage |
| 55 (V) | Ground | ACC power supply | Input | ACC | - | Battery voltage |
| 56 (G) | Ground | Ignition signal | Input | ON | - | Battery voltage |
| 57 (W) | Ground | Remote control receiver VCC | Output | ON | - | Approx. 5 V |

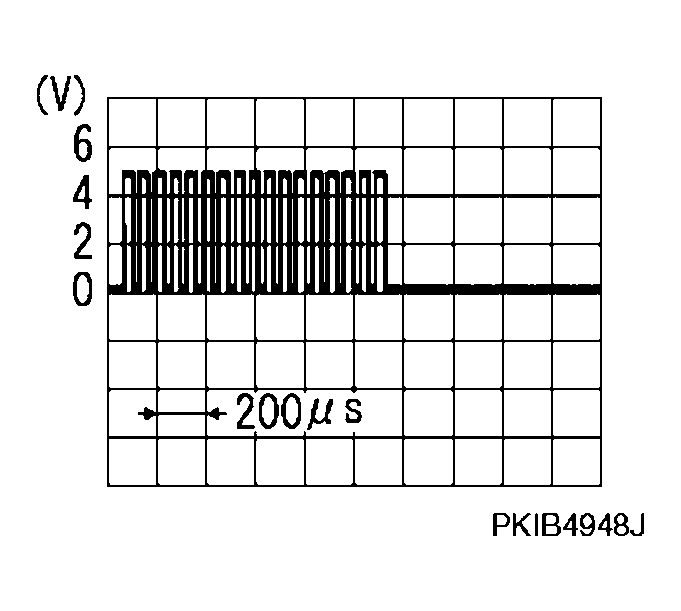

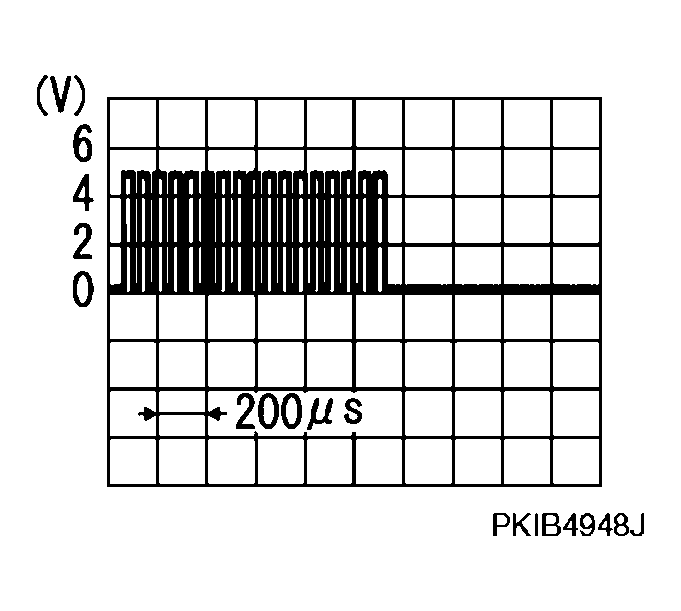

| 58 (B) | Ground | Remote control signal | Output | ON | Rear seat remote controller operation | |
| 59 | - | Shield | - | - | - | - |
| 60 (L) | Ground | Headphone amp ON signal | Input | ON | Headphone mode is ON. | Approx. 4 V |
| Headphone mode is OFF. | Approx. 0 V | |||||
