Front Display Unit

CONTROL UNIT TERMINALS AND REFERENCE VALUE (FRONT DISPLAY UNIT)

Terminal (Wire color)

Item

Signal input/output

Condition

Reference value

Ignition switch

Operation

1 (L/G)

8 (W/L)

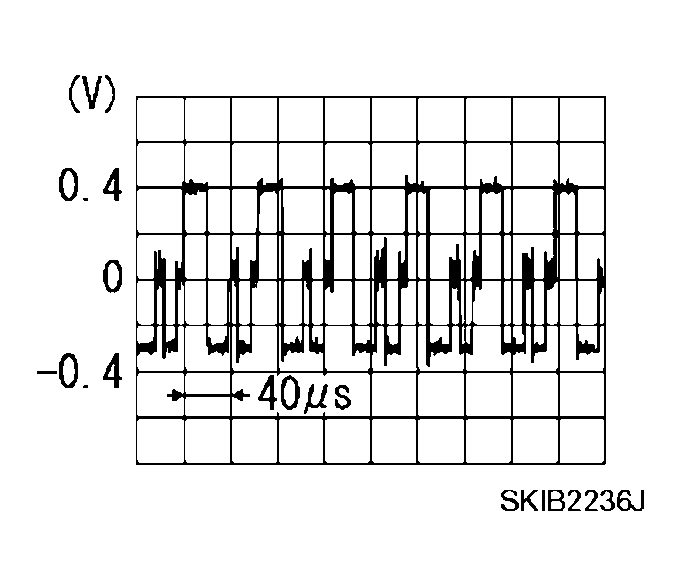

RGB Signal (R: red)

Input

Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.

2 (G)

Ground

RGB area (YS) signal

Input

When inputting RGB image.

Approx.5 V

Set the selector lever in R position, and then display the rear view image.

3 (O/L)

8 (W/L)

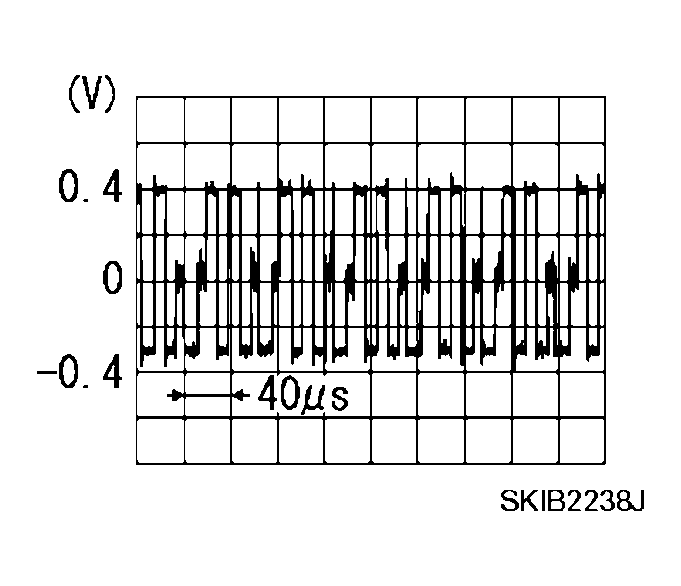

RGB signal (G: green)

Input

Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.

4 (W)

Ground

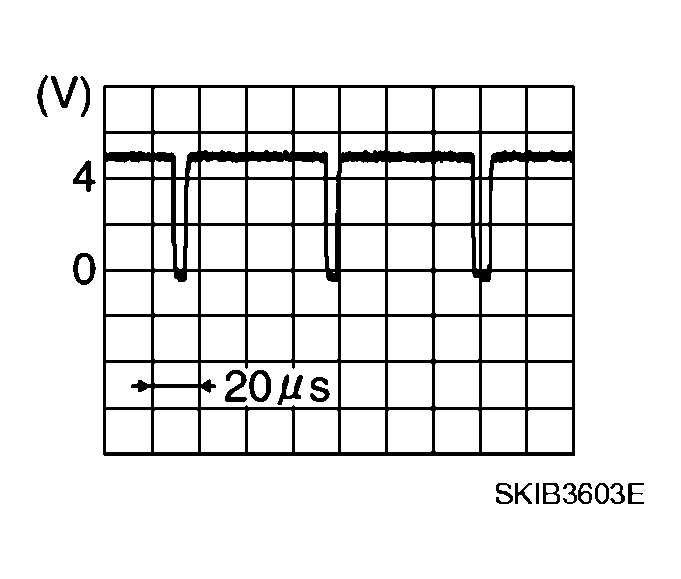

Horizontal synchronizing (HP) signal

Output

5 (L/Y)

8 (W/L)

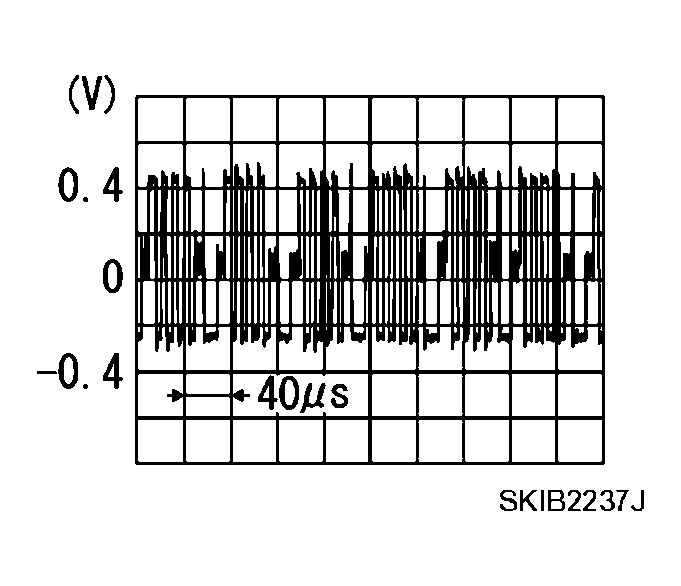

RGB signal (B: blue)

Input

Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.

6 (R)

Ground

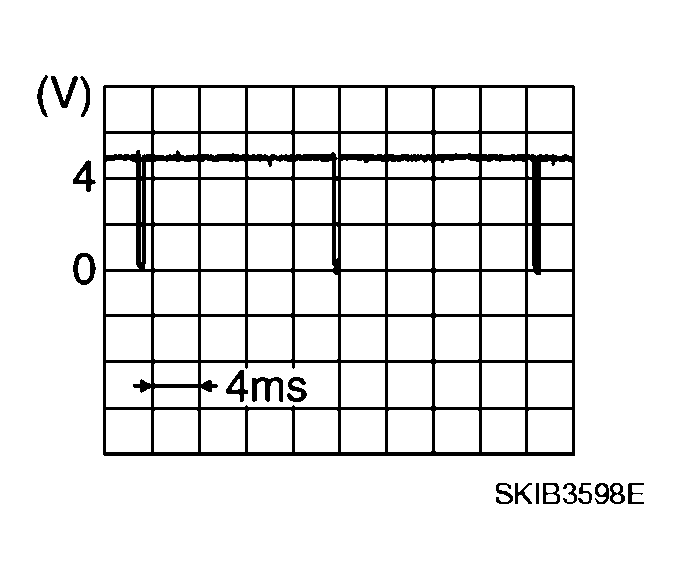

Vertical synchronizing (VP) signal

Input

7 (B)

Ground

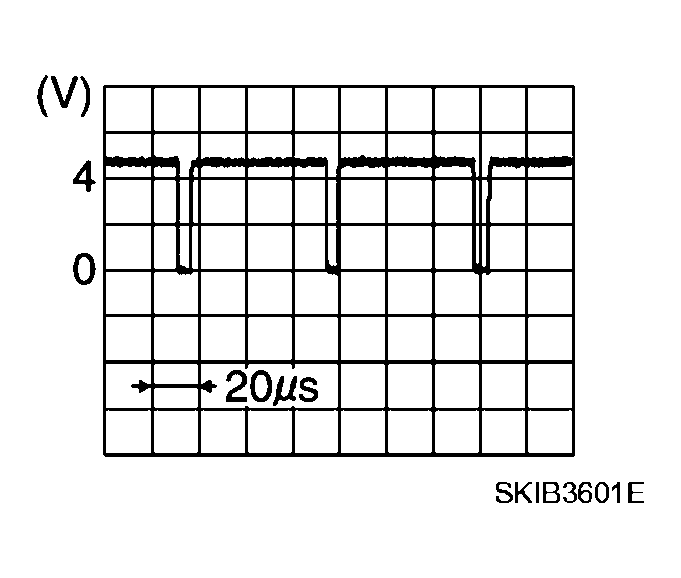

RGB synchronizing signal

Input

8 (W/L)

Ground

RGB ground

Approx. 0 V

Shield

11⁽¹⁾ (Y)

Ground

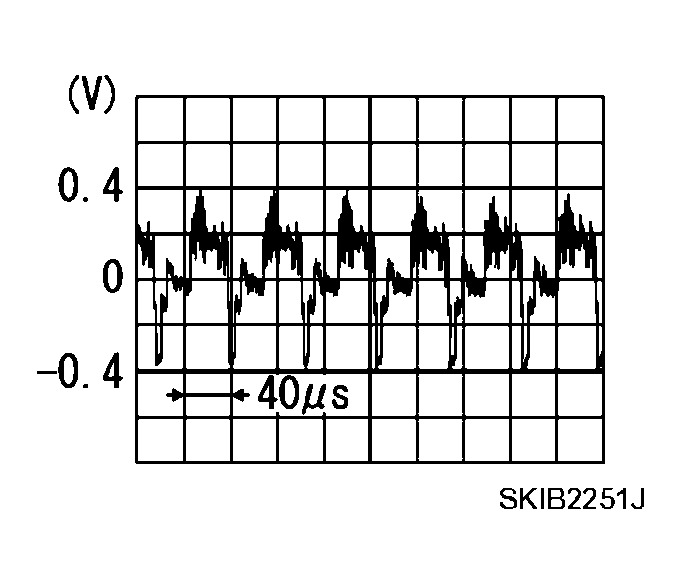

Camera image signal

Input

Set selector lever in R position, and then display the rear view image.

12⁽²⁾

Shield

14⁽²⁾

Shield

15⁽²⁾ (L)

Ground

Composite image signal

Output

DVD image

17 (W/L)

Ground

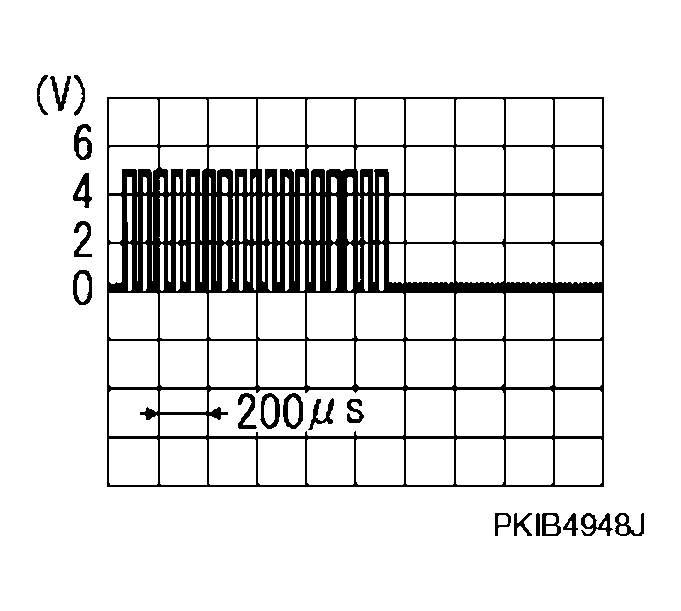

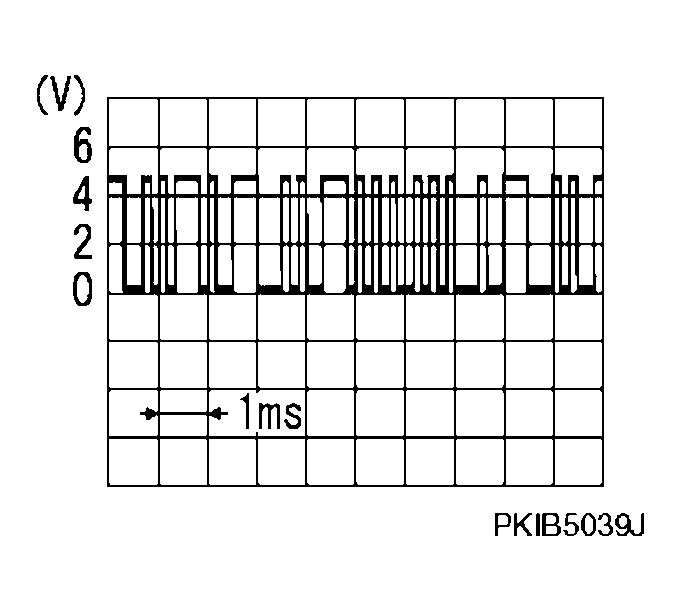

Communication signal (DISP-CONT)

Output

When adjusting display brightness.

Shield

19 (O/L)

Ground

Communication signal (CONT-DISP)

Output

When adjusting display brightness.

20 (V)

Ground

ACC power supply

Input

ACC

Battery voltage

21 (L)

Ground

BAT power supply

Input

OFF

Battery voltage

23 (B)

Ground

Approx. 0 V

⁽¹⁾ With rear view monitor
⁽²⁾ With BOSE surround 5.1ch system
