Check Warning Chime Function

CHECK WARNING CHIME INTO COMBINATION METER OPERATION
With CONSULT-II
1. Check the operation with "INSIDE BUZZER" in the "ACTIVE TEST".
2. Touch "TAKE OUT", "KEY WARN", "P RNG WARN" or "ACC WARN" on screen.
Does warning buzzer sound?

YES: Warning buzzer into combination meter is OK.

NO: GO TO 2.

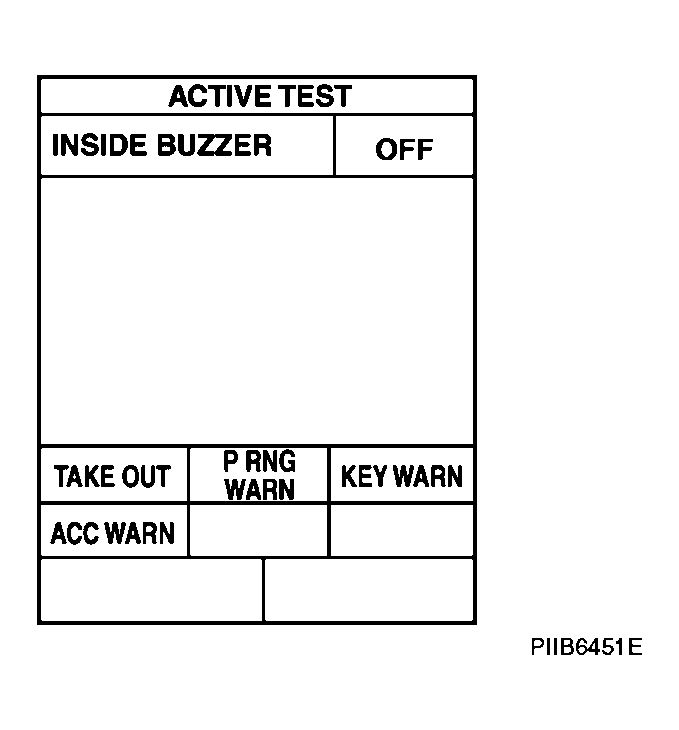

Fig 1: Display ACTIVE TEST Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK OTHER WARNING CHIME OPERATION
Confirm other warning chime function. Refer to "LIGHT WARNING CHIME ".

Does other warning chime operate?

YES: Warning buzzer into combination meter is OK

NO: Check warning chime. Refer to "TROUBLE DIAGNOSIS ".
