Terminals and Reference Value for Intelligent Key Unit

TERMINALS AND REFERENCE VALUE FOR INTELLIGENT KEY UNIT

Terminal	Wire Color	Item	Condition			Voltage (V) Approx.
			Ignition Switch Position	Operation or Conditions
1	SB	Power source (Fuse)	-	-		Battery voltage
2	GR	Door request switch (driver side)	-	Press door request switch (driver side).		0
				Other than above		5

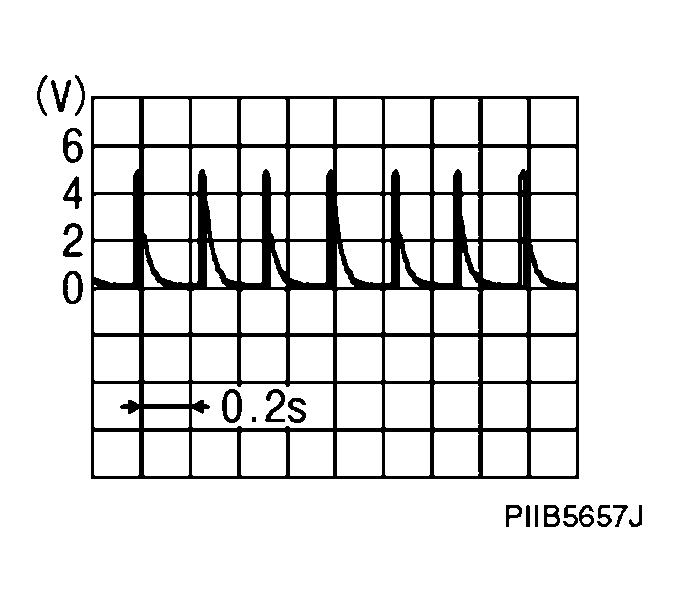

4	B/Y	Remote keyless entry receiver RSSI signal	LOCK	When Intelligent Key is in vehicle, press push-button ignition switch		0
				Other than above

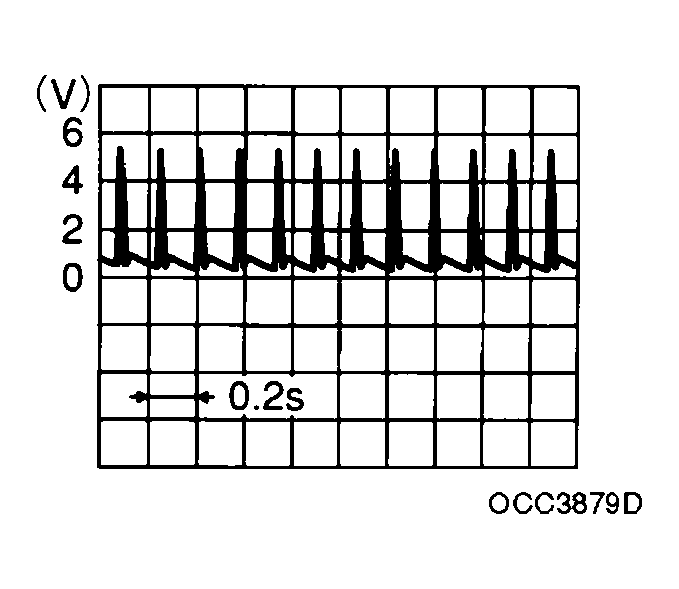

5	B/W	Remote keyless entry receiver signal	LOCK	Waiting state
				Any operation using Intelligent Key
6	B	Remote keyless entry receiver ground	-	-		0
7	B/R	Remote keyless entry receiver power supply	LOCK	-
13	LG/B	Key slot illumination signal	LOCK	Insert Intelligent Key into key slot and driver side door is open.		Illuminate: Battery voltage Does not illuminate: 0
				Remove Intelligent Key from key slot.		0
19	BR/Y	Key switch signal	LOCK	Insert Intelligent Key into key slot.		0
				Remove Intelligent Key from key slot.		Battery voltage
20	B	Ground	ON	-		0
22	O	Door request switch (passenger side)	-	Press door request switch (passenger side).		0
				Other than above		5
23	B	Trunk lid opener cancel switch	-	Trunk lid opener cancel switch is ON		0
				Trunk lid opener cancel switch is OFF (cancel)		5
25	GR/R	Trunk opener request switch	-	Press trunk opener request switch.		0
				Other than above		5
26	BR/W	Unlock sensor (driver side)	-	Door (driver side) is locked.		Battery voltage
				Door (driver side) is unlocked.		0
27	V	P range switch	-	Selector lever is in "P" position.		0
				Other than above		Battery voltage
30	L/W	Ignition switch (ACC)	ACC	-		Battery voltage
31	GR	Ignition switch (ON)	ON	-		Battery voltage

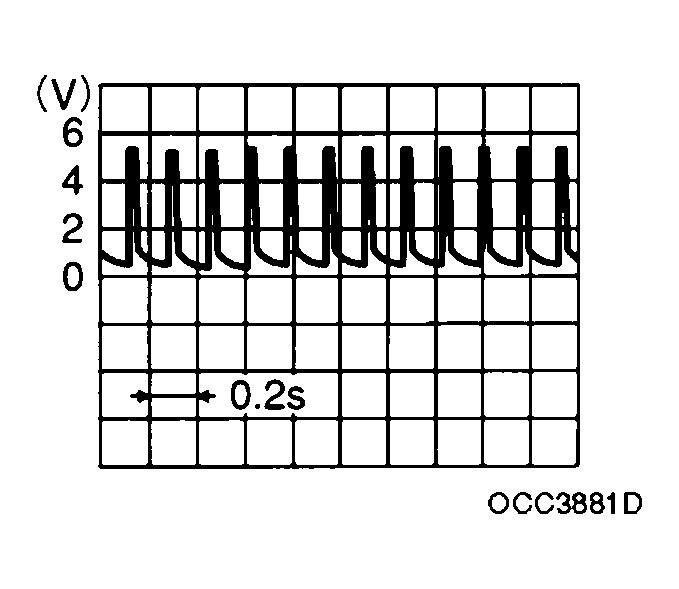

35	LG	Vehicle speed signal	ON	At speedometer operation (vehicle speed approx. 40 km/h)
37	P	CAN-L	-	-		-
38	L	CAN-H	-	-		-
39	BR/W	Push-button ignition switch signal	-	Press push-button ignition switch		0
				Other than above		Battery voltage
40	B	Ground	ON	-		0
41	Y	Power source (Fuse)	-	-		Battery voltage
47	LG	Inside key antenna (+) signal (Instrument centor)	LOCK	Any door open --> all door close
48	V	Inside key antenna (-) signal (Instrument centor)
49	B	Inside key antenna (+) signal (Console)	LOCK	Any door open --> all door close
50	W	Inside key antenna (-) signal (Console)
51	R/L	Inside key antenna (+) signal (Rear seat)	LOCK	Any door open --> all door closed
52	R/W	Inside key antenna (-) signal (Rear seat)
53	G/W	Inside key antenna (+) signal (Trunk room)	LOCK	Any door open --> all door close
54	LG	Inside key antenna (-) signal (Trunk room)
55	P	Intelligent Key warning buzzer	LOCK	Operate door request switch.	Buzzer OFF	Battery voltage
					Sound buzzer	0
56	B	Ground	ON	-		0
57	L	Power source (Fuse)	-	-		Battery voltage
58	O	A/T device power supply	LOCK	Wake-up state (Open drive side door)		Battery voltage
				Sleep state (After 30 seconds or more since all doors are closed under the condition that the ignition switch is in the LOCK position)		0
61	O/L	Outside key antenna (+) signal (driver side)	LOCK	Press door request switch (driver side).
62	Y	Outside key antenna (-) signal (driver side)
63	LG	Outside key antenna (+) signal (passenger side)	LOCK	Press door request switch (passenger side).
64	G	Outside key antenna (-) signal (passenger side)
69	O/B	Outside key antenna (+) signal (Trunk room)	LOCK	Press trunk opener request switch.
70	L	Outside key antenna (-) signal (Trunk room)
72	B	Ground	ON			0
